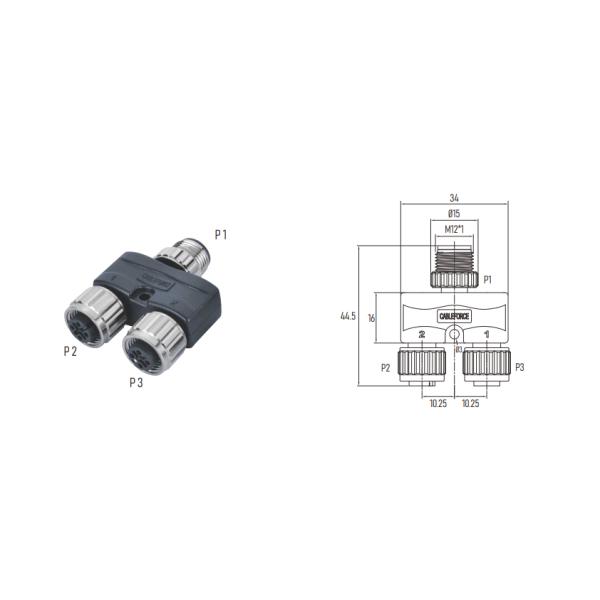

NMEA 2000 Y Splitter M12 Male To Female X 2 Connector TPU Body
NMEA 2000 Y Splitter M12 Male To Female X 2 Connector TPU Body
Specifications
Brand Name :
CABLEFORCE
Model Number :
MC03Y-MFFAB
Certification :
UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
60000 pcs/month
Delivery Time :
2~3 weeks
Packaging Details :
Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Reference Standard :
IEC 61076-2-101
Series :
Y Splitter
Coding :
A, B, C, D
Gender :
Male To Female x 2
Locking System :
M12 x 1.0 screw
Connector Body :
TPU
Contact Carrier :
TPU + GF
Protection degree :
IP67,IP68
Description
M12 NMEA 2000 Y Splitter Connector Male To Female X 2

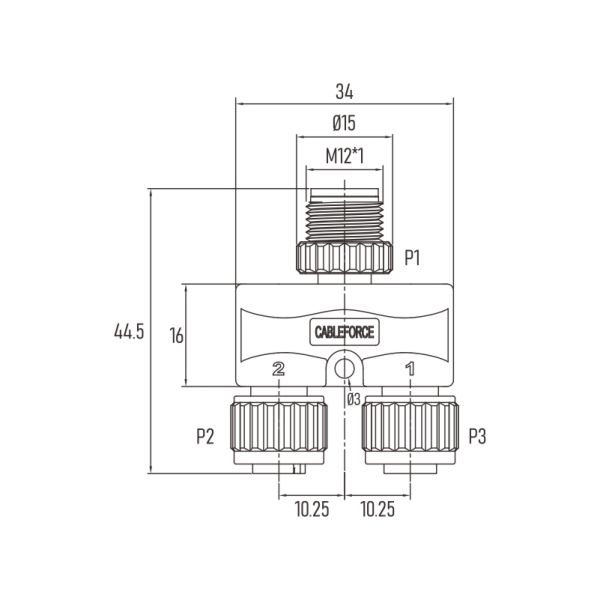

Connector Technical Data
Model Number MC03Y-MFFAB
Contact No 3Pin, 4Pin, 5Pin, 8Pin
Coding
A coded
Screw Type Metal Screw
Locking System
M12 x 1.0 screw
Contact plating
Au (Gold)
Type
 M12 NMEA 2000 Y Splitter
Contact Carrier
TPU+GF
Screw Nut
Brass,CNC,Nickel plated
Contact
Male: Brass, Female: Phosphor bronze
O-ring FKM Silicon
Protection Degree
IP67,IP68
Description
M12 L-adapters splits wires into 2 separate connectors, allowing installation of two single-channel input or output devices to each port of hardwired distribution box. Connectors are available with parallel circuits, which allow input or output signals to run or trigger devices simultaneously.

CABLEFORCE Products Features

● M12*1 thread locking mechanism, anti-vibration locking design

● Easy quick connect and disconnect coupling
● Pin configurations: 4, 5, 8 positions

● 3P 4P 5P 8P are available

● A, B, D coding available
● Accept OEM & ODM order to meet your customized requirement
● RoHS, REACH compliant.

FAQ

● What is Y splitter cable?

A “Y Splitter” is a common term used for any cable that has a single connector on one end, and a dual connector on the other.

● What do y splitters do?

Y-splitter also called a Y-cable, is a type of cable adapter that is arranged in a Y-shaped formation and is used to connect one device to a pair of other devices.

NMEA 2000 Y Splitter M12 Male To Female X 2 Connector TPU Body

NMEA 2000 Y Splitter M12 Male To Female X 2 Connector TPU Body
