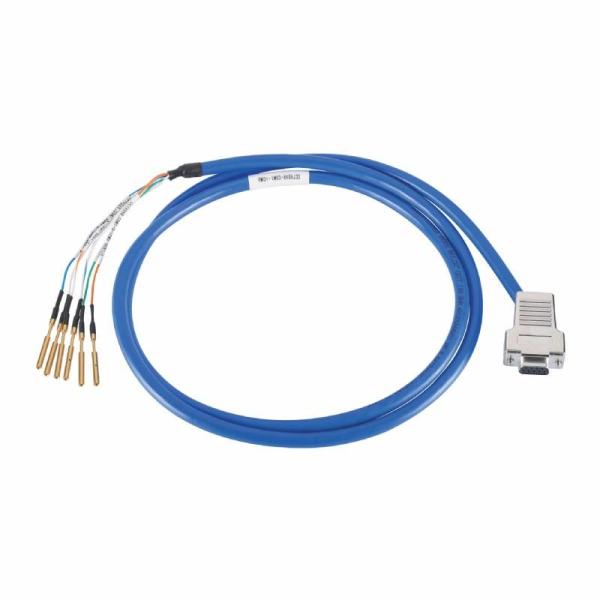

PCB Contacts Industrial Ethernet Cable 9pin D Sub Connector For Passenger Rail
PCB Contacts Industrial Ethernet Cable 9pin D Sub Connector For Passenger Rail
Specifications
Brand Name :
CABLEFORCE
Model Number :
DB09C2LPB24CB10C5E
Certification :
UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
60000 pcs/month
Delivery Time :
2~3 weeks
Packaging Details :
Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Type :
D-Sub VGA Cable Connector
Gender :
Female
Reference Standard :
IEC60807 3
Locking system :
2xUNC # 4 - 40 screw
Rated current :
3A
Rated voltage :
600V
Impulse voltage :
2500V
Termination :
PCB contacts
Description
M12 NFPA 130 D Sub Female Cordsets EN 45545 9pin LSZH Industrial Ethernet Cable Cat 5e
Connector Technical Data
Model Number DB09C2LPB24CB10C5E
Contact No 9 pin
Contact Body Zinc alloy
Contact Resistance ≤10mΩ
Insulation Resistance
≥100MΩ
Application
 Rail Transit Vehicle Cables
Contact Plating Au ( Gold )
Contact Carrier
PBT+GF
Rated Temperature -40°C ~ 90°C
Contact
Male : Brass Female : Phosphor bronze
Pollution degree 3
Brand Name
CABLEFORCE
Description
D-Sub Pre-molded NFPA 130 EN45545 LSZH VGA cable connectors with rated 3 pollution degree, contacts configuration covers pins of 9 poles, 360°EMC shielding is available for option. Compliant with IEC 60807 3 and mainly designed for signal transmission.
CABLEFORCE Rail Transit Vehicle Cables Features

● Brand: Cableforce

● Country of origin: China

● NFPA 130 Certified Low Smoke Zero Halogen (LSZH) Cable for Fixed Guideway Transit and Passenger Rail

● 100Mbps, Cat 5e SFTP 3x2x24AWG Profinet Cable

● Package: packaged in a resealable bag

● Cable Jacket is Labelled with Self Laminated Label

● Certificated: Low somking zero halogen, Oil, coolants, lubricants and emulsion resistance, RoHS Compliant, Electromagnetic resistance, UL94 Flame Retardent , UV resistance , High Low temperature resistant, Suitable for railway applications

FAQ

● Is D-Sub and VGA the same?

When used as a monitor interface, a D-Sub port is also known as a VGA port, an analog connection standard that's been around for some time. The connector is a DE-15 connector with 15 pins in three rows, often referred to as a "mini-D-Sub 15-pin" or "D-Sub 15-pin" connector.

● What is the difference between DB-25 and DB-9 connectors?

Because personal computers first used DB-25 connectors for their serial and parallel ports, when the PC serial port began to use 9-pin connectors, they were often labeled as DB-9 instead of DE-9 connectors, due to an ignorance of the fact that B represented a shell size. It is now common to see DE-9 connectors sold as DB-9 connectors.

PCB Contacts Industrial Ethernet Cable 9pin D Sub Connector For Passenger Rail

PCB Contacts Industrial Ethernet Cable 9pin D Sub Connector For Passenger Rail
