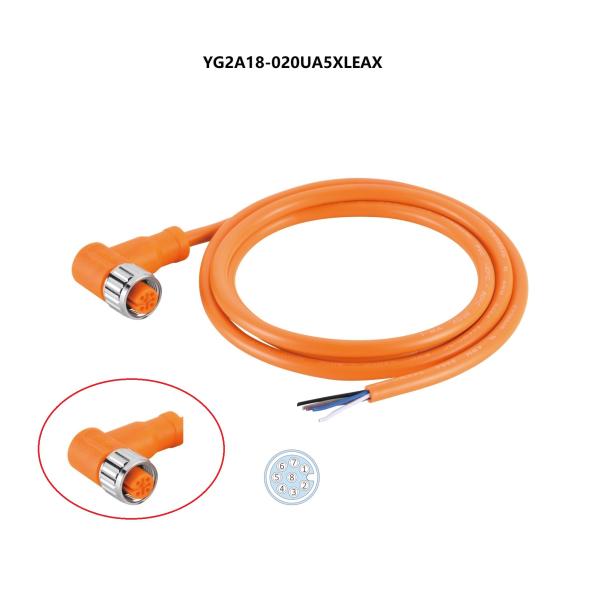

A Coded Unshielded Sensor Actuator Cable M12 Connector Female 8 Pin Right Angled
A Coded Unshielded Sensor Actuator Cable M12 Connector Female 8 Pin Right Angled
Specifications
Brand Name :
CABLEFORCE
Model Number :
YG2A18-020UA5XLEAX
Certification :
UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
60000 pcs/month
Delivery Time :
2~3 weeks
Packaging Details :
Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Contacts Poles :
8 Pin
Cable Length :
2 meters
Connector Gender :
Female connector
Cable Jacket :
PUR
Keyway Coding :
A Coded
EMC Shielding :
Un-shielded
Cable Color :
Black, Orange
Locking nut material :
Zinc die-cast, nickel-plated
Description
Unshielded Sensor Actuator Cable M12 Connector A Coded Female 8 Pin Right Angled
Connector Technical Data
Model Number 2095779
Connectors No.
8Pin
Rated Current
2A
Rated Voltage
30V
Impulse Voltage
800V
Wire Gauge
0.25mm²(AWG 24)
Over-molding
TPU
Contact Carrier
TPU+GF
Locking nut material
Zinc die-cast, nickel-plated
Contact
Brass(Male), Phosphor bronze(Female)
Contact Plating
Au(Gold)
Cable
2 m, 8-wire, PUR, halogen-free
Description
M12 circular connectors with M12 locking thread for Automation, Process control, industrial Ethernet, Railway CCTV, Boat cabling etc.. The Series of CABLEFORCE M12 connector offers many different cable connectors configuration, panel mounted receptacles, field attachable installable connectors with industry standard A,B,D,X,S,T,K,L and Y keyway coding options.
M12 series with wide product range of panel type connectors for sensor/actuator components offers comprehensive solutions for M12 devices connection.M12 panel mount connectors are available for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers. These connectors can be mechanically integrated into the device design "seamlessly", and are also designed for economical PCB assembly with rear mount type and front mount type.

CABLEFORCE Products Features

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant

FAQ

● What is a M12 connector?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.

● What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.

● What is a sensor cable?

Sensor cable is a cable construction designed for optimal performance of signal/data transmission from a sensor, transducer, or transmitter to a control unit. Pressure, liquid, temperature, and flow are just a few of the measurements that can be taken.
