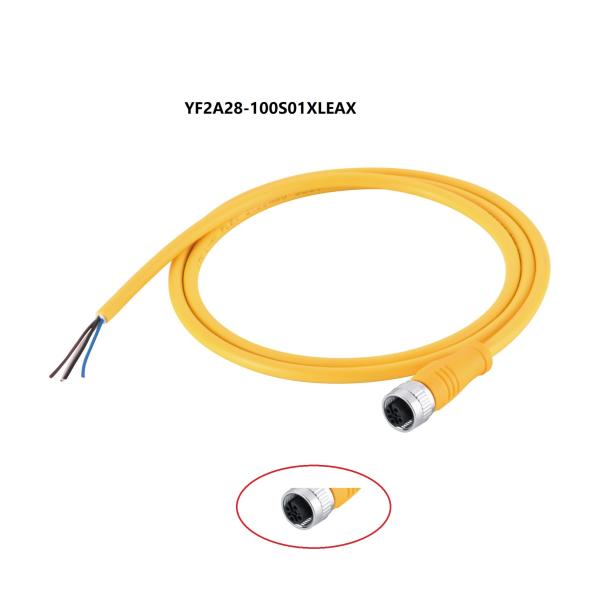

Sensor Actuator M12 Connector Cable A Coding Female 8 Pin 10m Shielded Ip67
Sensor Actuator M12 Connector Cable A Coding Female 8 Pin 10m Shielded Ip67
Specifications
Brand Name :
CABLEFORCE
Model Number :
YF2A28-100S01XLEAX
Certification :
UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
60000 pcs/month
Delivery Time :
2~3 weeks
Packaging Details :
Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Contacts Poles :
8 Pin
Cable Length :
10 meters
Connector Gender :
Female connector
Cable Jacket :
PUR
Keyway Coding :
A-Coding
EMC Shielding :
EMI-Shielded
Cable Color :
Black, Orange, Yellow, Gray
Reference Standard :
IEC 61076-2-101
Description
Sensor Actuator Cable M12 Connector A Coding Female 8 Pin 10m Shielded Ip67 Ip68
Connector Technical Data
Model Number 2099605
Connectors No.
8Pin
Rated Current
2A
Rated Voltage
30V
Impulse Voltage
800V
Wire Gauge
0.25mm²(AWG 24)
Over-molding
TPU
Contact Carrier
TPU+GF
Screw Nut
PA66+GF
Contact
Brass(Male), Phosphor bronze(Female)
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68
Description
M12 circular connectors are one of the most widely used sizes for circular connectors. The M12 size is available in coding variants for all industrial lifelines – for power, signals and data. IP65/67 protected and packaged in a rugged metal housing, they provide a completely reliable connection when used in demanding applications.
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins. Users must select the correct pin count for specific applications. Sensors and power applications require 3 and 4 pins; PROFINET and ethernet require 4 and 8 pin counts; Fieldbus, CAN bus, and DeviceNet typically use 4 and 5 pin counts; and 12 pins are used for signal requirements. Our M12 connector system provides a full solution that includes connectors, IO modules, and cable assemblies. M12 connectors are found in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics, and transportation.

FAQ

● What is a M12 connector?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.

● What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.

● What is a sensor cable?

Sensor cable is a cable construction designed for optimal performance of signal/data transmission from a sensor, transducer, or transmitter to a control unit. Pressure, liquid, temperature, and flow are just a few of the measurements that can be taken.


Cableforce Core Benefits

● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning

● Using best in class materials
● Certified Cables on Request
● Quality Control & 100 Testing 100%

● Guaranteed for life
● Safe and reliable system that is easy to install
● CE,IP67,UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to IP68
● Vibration proof connections
● RoHS and REACH compliant
