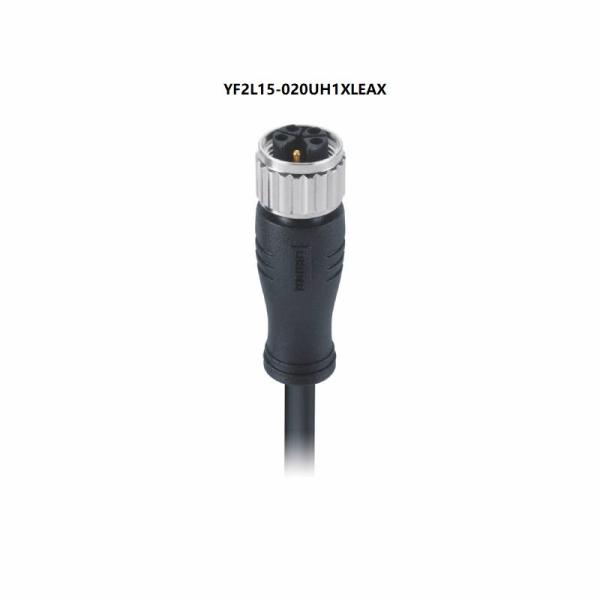

Crimping Termination 2M Sensor Actuator Cable M12 L Code 5 Pin Female Connector
Crimping Termination 2M Sensor Actuator Cable M12 L Code 5 Pin Female Connector
Specifications
Brand Name :
CABLEFORCE
Model Number :
YF2L15-020UH1XLEAX
Certification :
UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
60000 pcs/month
Delivery Time :
2~3 weeks
Packaging Details :
Our standard packing: Individual part with transparent PE bag with label, OEM packing available.

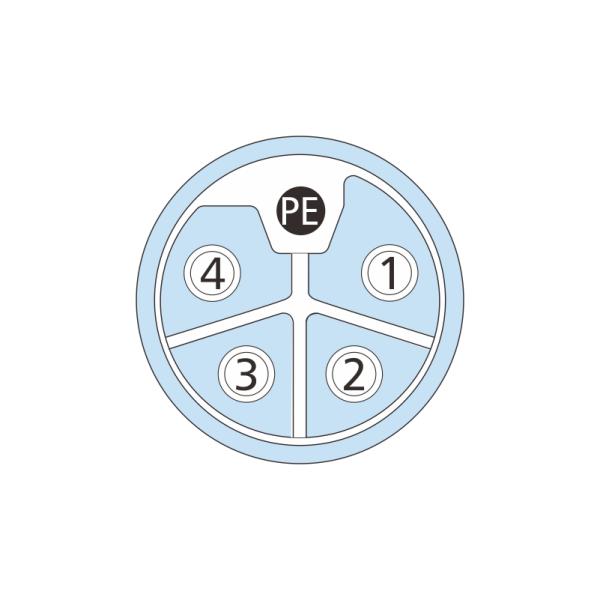

Contacts Poles :
5 Pin
Cable Length :
5M
Connector Gender :
Female or Male
Cable Jacket :
PVC, PUR
Keyway Coding :
L code
Reference Standard :
IEC 61076 2 111
Cable Color :
Black
Termination :
Crimping
Description
2M Sensor Actuator Cable M12 L Code 5 Pin Female Connector

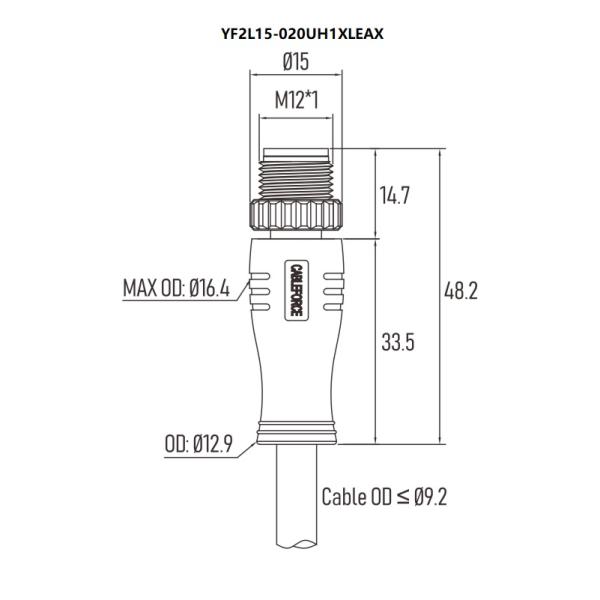

Connector Technical Data
Model Number
YF2L15-020UH1XLEAX
Connectors No.
5 Pin
Locking System
M12×1.0 Screw
Rated Current 16A
Rated Voltage 690V AC
Impulse Voltage 1500V
Wire Gauge
AWG 14
Over molding
TPU
Screw nut Brass, CNC, nickel plated
Contact
 Male: Brass; Female: Phosphor bronze
Contact Carrier
 PA66 + GF
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68
Description
The termination structure includes tail cover, inner pad, cable and shielding layer. The tail cover is generally set on the outer surface of the inner pad, and the tail cover and the connector end are fixedly connected, so that the terminated cable diameter is not easy to suffer from M12 The diameter of the circular metal waterproof industrial Ethernet connector can be terminated according to the cable of any diameter size, and the terminated cable has a relatively high compressive strength, small size and compact structure, simple structure, and strong applicability.

Sources of EMI


In general, EMI sources can be divided into two major categories: ambient EMI and power quality problems. Railroad and mass transit systems, medical equipment, and military applications also face their own specific challenges. Increasingly, intentional electromagnetic interference (IEMI) also represents a threat to non-military assets such as the power grid and other types of critical infrastructure.

FAQ

● What is EMI Shielding?
EMI Shielding in electronic devices and equipment is the use of manufacturing techniques and materials to protect signals from being disrupted by external electromagnetic signals as well as preventing generated signals from interfering with surrounding components.
