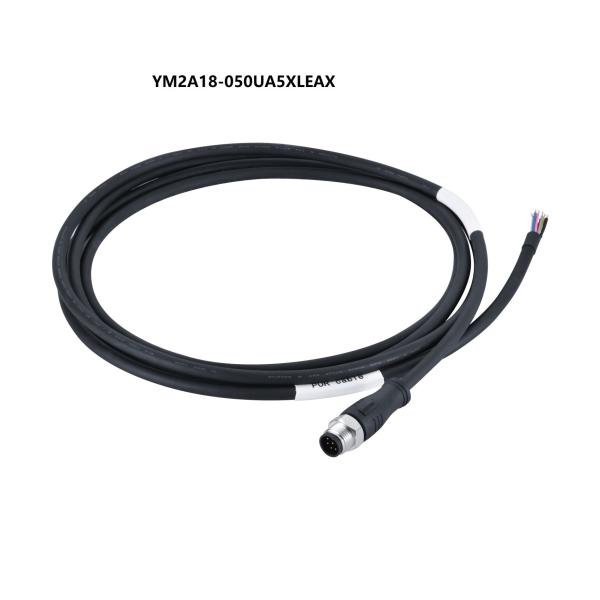

A Coded Male M12 Sensor Actuator Cable 8pin Connectors 5m PUR Unshielded
A Coded Male M12 Sensor Actuator Cable 8pin Connectors 5m PUR Unshielded
Specifications
Brand Name :
CABLEFORCE
Model Number :
YM2A18-050UA5XLEAX
Certification :
UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
60000 pcs/month
Delivery Time :
2~3 weeks
Packaging Details :
Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Contacts Poles :
08 Pin
Cable Length :
5M
Connector Gender :
Male connector
Cable Jacket :
PUR
Keyway Coding :
A Coded
EMC Shielding :
Un-shielded
Cable Color :
Black, Orange, Yellow, Gray
Reference Standard :
IEC 61076-2-101
Description
M12 Sensor Actuator Cable A Coded Male 8pin Connectors 5m PUR Cable Unshielded
Connector Technical Data
Model Number
2095869
Connectors No.
8Pin
Rated Current
2A
Rated Voltage
30V
Impulse Voltage
800V
Wire Gauge
0.25mm²(AWG 24)
Over-molding
TPU
Contact Carrier
TPU+GF
Screw Nut
PA66+GF
Contact
Brass(Male), Phosphor bronze(Female)
Contact Plating
Au(Gold)
Protection Degree
IP67,IP68
Description
M12 circular connectors with M12 locking thread for Automation, Process control, industrial Ethernet, Railway CCTV, Boat cabling etc.. The Series of CABLEFORCE M12 connector offers many different cable connectors configuration, panel mounted receptacles, field attachable installable connectors with industry standard A,B,D,X,S,T,K,L and Y keyway coding options.
M12 series with wide product range of panel type connectors for sensor/actuator components offers comprehensive solutions for M12 devices connection.M12 panel mount connectors are available for the device connection for sensor/actuator boxes, field-bus modules and industrial controllers. These connectors can be mechanically integrated into the device design "seamlessly", and are also designed for economical PCB assembly with rear mount type and front mount type.
Permit high flexibility for wiring in the field. For quick assembly and disassembly of often differing cable lengths, solder termination and screw termination are available, and quick-locking fast connection type is available.

CABLEFORCE Products Features

● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant

Cableforce Core Benefits

● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH

A Coded Male M12 Sensor Actuator Cable 8pin Connectors 5m PUR Unshielded
