M12 4 Pin Female D Code Panel Mount Connector To RJ45 Male Plug
M12 4 Pin Female D Code Panel Mount Connector To RJ45 Male Plug
M12 4 Pin Female D Code Panel Mount Connector To RJ45 Male Plug
M12 4 Pin Female D Code Panel Mount Connector To RJ45 Male Plug
M12 4 Pin Female D Code Panel Mount Connector To RJ45 Male Plug
M12 4 Pin Female D Code Panel Mount Connector To RJ45 Male Plug
Specifications
Brand Name :
CABLEFORCE
Model Number :
RJ5EC1-MC04P2LSDSB26CG10
Certification :
UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
Place of Origin :
Guangdong, China
MOQ :
100
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
60000 pcs/month
Delivery Time :
2~3 weeks
Packaging Details :
Our standard packing: Individual part with transparent PE bag with label, OEM packing available.
Gender :
Female to Male
Wire gauge :
0.14mm²(AWG 26) CAT 5E SFTP
Type :
M12 D Code Cable Connector
Application :
Profinet Ethernet
Characteristic impedance :
100Ω ±15
Over-molding :
TPU
Reference Standard :
IEC 61076-2-101
Contact carrier :
TPU+GF
Screw nut :
Brass, CNC, Nickel-plated
Contact :
Brass, Phosphor bronze
Description

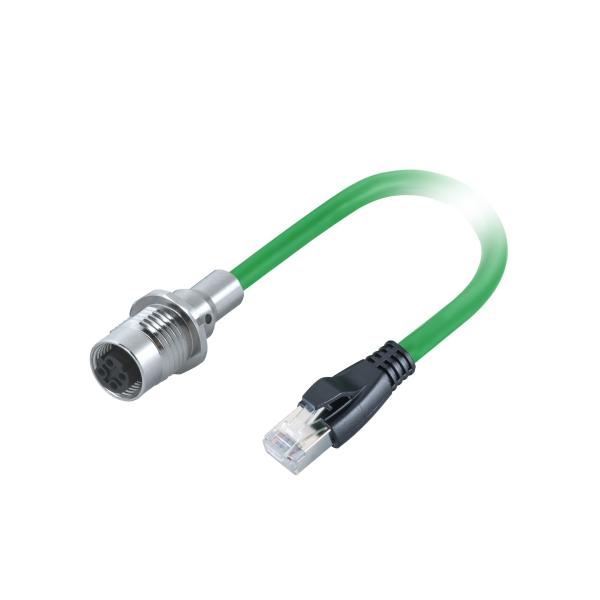

M12 4 Pin Female D Code Panel Mount Connector to RJ45 Male Plug With PVC Cat 5e 2Px26AWG Ethernet Cable
Connector Technical Data
Model Number MC04C5LRSDSB22CG10-C5E

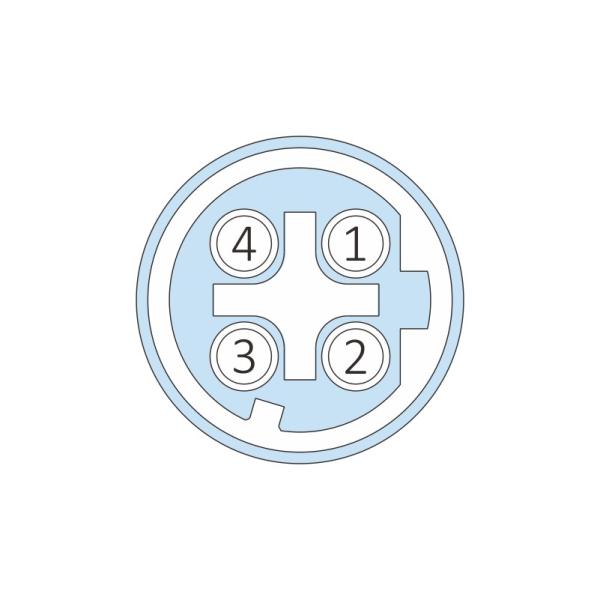

Contact No 4 pin
Coding
D coded
Contact Resistance
≤10mΩ
Characteristic Impedance
150Ω ±15
Wire Gauge
0.14mm²(AWG 26)
Type
M12 D Code Cable Connector
Contact Carrier
TPU+GF
Screw Nut
Brass,CNC,Nickel-plated
Contact
Brass(Male), Phosphor bronze(Female)
Pollution Degree
 3
Protection Degree
IP67,IP68
Description
The M12 metric size D-Coding connectors, it is commonly used connector in the Fieldbus cabling system, mainly designed and developed for industrial Ethernet/ Profinet cabling. M12 D-Coding connector designed with double keyway coding structure which differentiates itself from A, B, C, S, T, K, L-Codings.

● Cable plugs, field installable plugs, panel receptacles are available
● Cable length, LSZH, NFPA130 railway cable upon customer requesting
● 4 poles per connector
● Operating voltage 250V; Current range: 4A
● Anti-vibration locking screw design

CABLEFORCE Products Features

● IP67 IP68 IP69K and UL approvals
● 360° shielded or non-shielded versions are available
● TPU over molded and PA+GF or metal shell
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.

FAQ

● What is PROFIBUS and how it works?

Profibus (from process field bus) is a protocol for field bus communication in automation technology. Profibus links automation systems and controllers with decentralized field devices such as sensors, actuators, and encoders. Profibus networks exchange data using a single bus cable.

● What does the coding mean on M12 connectors?

This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.

● What is difference between PROFIBUS and Ethernet?

PROFINET is a fieldbus system which is based on Ethernet. PROFINET is one of the many industrial ethernet systems out there, which is often compared to PROFIBUS. PROFINET is a full duplex system. Because it's ethernet based, PROFINET can operate on a much higher transmission speed than PROFIBUS.
