Specifications
Brand Name :
Octavia
Model Number :
MR-C01720WFY-5MP
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, PAYPAL, WEST UNION
Supply Ability :
1000000pcs/month
Delivery Time :
The regular products will be ready within 3 to 7 days, special models will need about 30 days
Packaging Details :
The inside is packed by blister box usually, the outer is packed by carton
Model: :
MR-C01720WFY-5MP
Mount: :
M12*0.5
Resolution: :
5MP
Focal Length: :
1.7mm
Image Format: :
1/2.5″
Aperture: :
F2.0
Field Angle :
185°
Lens Size :
φ20*19mm
Description

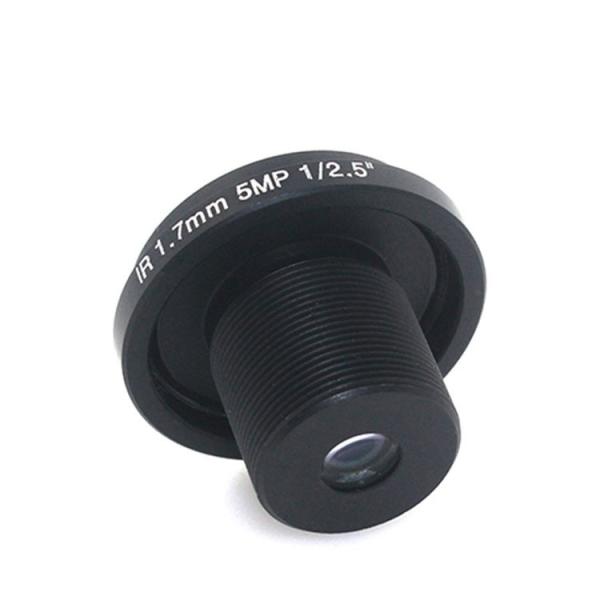

HD Fisheye CCTV Lens 5MP 1.7MM M12*0.5 Mount 1/2.5 F2.0 180 degree for IP Security CCTV Cameras:

Octavia has successfully developed many kinds of optical lenses through staff's hard work, and now many of them are separately used in technical fields including Reversing visible systems, Digital cameras, PC Cameras, Medical equipment, Accurate measuring apparatuses, scanners and Fingerprint recognition. Our products' unique structural design and excellent optical performance with competitive price make us gain the favor from both domestic and international markets.

Features:
1. 5.0 Megapixel fisheye lens, 1.7mm F2.0 M12 Lens, MTV Board lens.
2. 1/2.5" Format High quality cctv camera lens, optical lens ,M12 Mount Lens
3. 1.7mm focal length 185 Degree of DFOV surveillance lens
4. Wide angle fisheye Lens for box camera,Surveillance Lens, Mini Dome Camera Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.

Specification
Model MR-C01720WFY-5MP Mount M12*0.5
Focal Length 1.7mm Resolution 5.0MP
Sensor Size 1/2.5'' Weight 8.5g
Aperture F2.0 Dimension φ20*19mm
MOD 0.2m Operating Temperature -20°C -- +80°C
Angle of View 185° BFL 4.8mm
Application Fisheye Camera Lens

Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 5.0 Megapixel, IR Cut and Lens Holder are available as per request.

Warranty and Return:

1. All items have been checked and packed in good condition before dispatch.

2. One year warranty is provided on all products.

3. All returned items must be in original packing and buyer is required to provide tracking number to us.

4. If you are not satisfied with our product or service, please contact us first before leaving a negative feedback or opening a dispute. We will try our best to fix your issue.

5. Buyer has 7 days to contact us for replacing the product. If the item has been kept at buyer side for more than 7 days before replacement request is raised, the item is considered used and we will not approve a refund or replacement. For replacement, seller and buyer both bear a half of shipping cost.
