Specifications
Brand Name :
Octavia
Model Number :
MR-FCS0520IRST-12MP
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, PAYPAL, WEST UNION
Supply Ability :
1000000pcs/month
Delivery Time :
The regular products will be ready within 3 to 7 days, special models will need about 30 days
Packaging Details :
The inside is packed by blister box usually, the outer is packed by carton
Model: :
MR-FCS0520IRST-12MP
Mount: :
CS
Focal Length: :
5mm
Image Format: :
1/1.7″
Aperture: :
F2.0
Field Angle(1/3%22): :
121.4°×90°×65°
MOD :
0.2M
Material :
Metal and Glass
Description

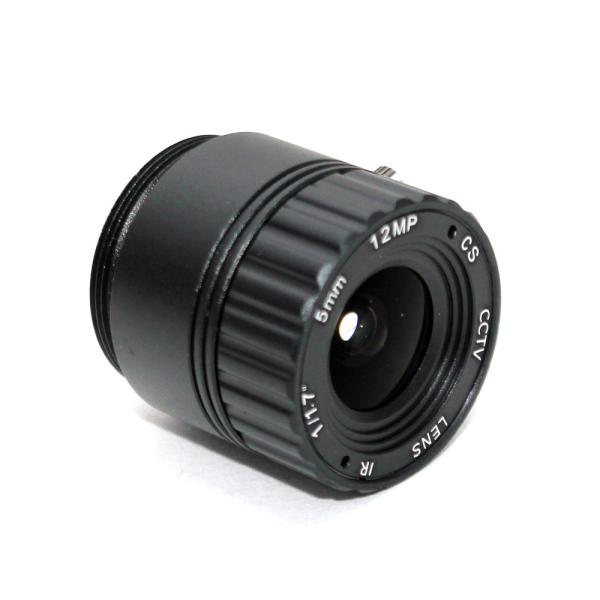

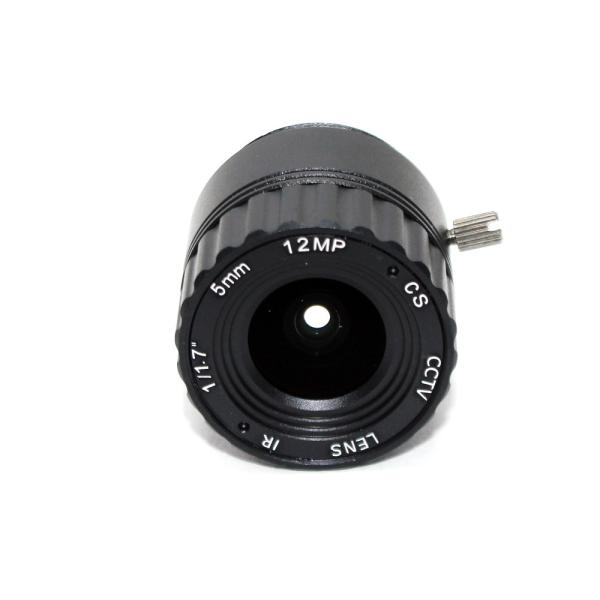

5mm 1/1.7" 4K CCTV Lens IR Correction F2.0 CS Mount Megapixels 12MP 87 degrees For UHD Security Camera:

Specification

Model MR-FCS0520IRST-12MP Mount CS
Focal Length 5mm Resolution 12.0MP
Sensor Size 1/1.7'' BFL 6.39mm
Aperture F2.0 Dimension Φ28×31.3mm
MOD 0.3m Weight 40.9g
Angle of View 121.4°×90°×65° CRA ≤12.72°
Iris Fixed

Features:
1. F2.0 big aperture high resolution lens, 5mm fixed CS mount lens, Camera lens with IR CUToptional.
2. 1/1.7" Format High quality cctv camera lens, optical lens ,CS Security Video Lens
3. 5mm focal length
121.4 Degree of DFOV security lens
4. 12.0MP Lens for HD Megapixel camera, Surveillance Lens, fixed iris security Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.

Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 12.0 Megapixel, IR Cut and Lens Holder are available as per request.

Warranty and Return:

1. All items have been checked and packed in good condition before dispatch.

2. One year warranty is provided on all products.

3. All returned items must be in original packing and buyer is required to provide tracking number to us.

4. If you are not satisfied with our product or service, please contact us first before leaving a negative feedback or opening a dispute. We will try our best to fix your issue.

5. Buyer has 7 days to contact us for replacing the product. If the item has been kept at buyer side for more than 7 days before replacement request is raised, the item is considered used and we will not approve a refund or replacement. For replacement, seller and buyer both bear a half of shipping cost.
