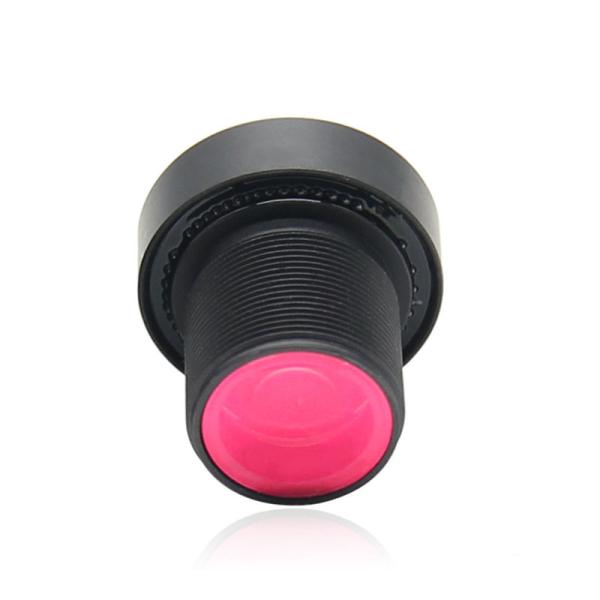

Octavia 3.31mm F1.33 1/3 OV4689 M12 Automotive Lens
Octavia 3.31mm F1.33 1/3 OV4689 M12 Automotive Lens
Octavia 3.31mm F1.33 1/3 OV4689 M12 Automotive Lens
Octavia 3.31mm F1.33 1/3 OV4689 M12 Automotive Lens
Octavia 3.31mm F1.33 1/3 OV4689 M12 Automotive Lens
Octavia 3.31mm F1.33 1/3 OV4689 M12 Automotive Lens
Specifications
Brand Name :
Octavia
Model Number :
MR-L03313X-O4689
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, PAYPAL, WEST UNION
Supply Ability :
1000000pcs/month
Delivery Time :
The regular products will be ready within 3 to 7 days, special models will need about 30 days
Packaging Details :
The inside is packed by blister box usually, the outer is packed by carton
Model: :
MR-L03313X-O4689
Mount: :
M12*0.5
TTL :
22.00mm
Focal Length: :
3.31mm
Aperture: :
F1.33
DFOV :
126°*102°*54°
BFL :
6.9mm
MOD :
0.2M
Material :
Metal and Glass
Description

Large light inlet 3.31mm F1.33 M12 lens 1/3 OV4689 chip 126° wide angle high temperature and low temperature resistance:

1. Glass-plastic mixed lenses: the lens interior mostly uses glass lenses, plastic aspheric lenses mixed form, effective correction of aberration;

2. Low-dispersion glass materials: low-dispersion materials are used to effectively reduce dispersion. The effect of correcting the axial chromatic aberration at telephoto end and the vertical chromatic aberration at wide angle end is particularly significant.

3. Temperature drift control: Using optical materials with low thermal expansion coefficient, the lens can obtain clear pictures without re-focusing under different temperature environments.

4. Flatness of image surface: Excellent optical design technology is used to achieve high pixel and high contrast uniformly from the center to the periphery of the image.

5. Day-night confocal: Both visible and near-infrared light have almost no change in the focal plane, so that the image can get a clear effect in day and night.

Specification
Model MR-L03313X-O4689 Mount M12*0.5
Focal Length 3.31mm BFL 6.9mm
Sensor Size 1/3'' Distortion <15.1%
Aperture F1.33 CRA <6.2°
MOD 0.2m RI >79%
Angle of View 126°*102°*54° Structure 5G+1AG
Operating Temp. -30°C ~ +75°C Sensor OV4689
Application Car DVR Lens

Features:
1. Car Camera lens, 3.31mm F1.33 Car DVR Lens
2. 1/3" Format High quality security lens, optical MTV Lenses
3. 3.31mm focal length 126 Degree of FOV surveillance lens, can add the IR filter

4. The resolution 4.0MP CCTV Lens can be used for IP camera & High resolution camera.
5. Big aperture Lens for automotive cameras, wide angle lens and high temperature resistance

Model No. Focal Length Aperture Mount Format Angle Of View
Board Lens (Megapixel lens is optional from 1.0MP, 1080P, 3MP, 5MP, 8MP, etc.)
MR-02120 2.1mm F2.0 M12*0.5 1/3" 145°
MR-02520 2.5mm F2.0 M12*0.5 1/3" 130°
MR-02820 2.8mm F2.0 M12*0.5 1/3" 120°
MR-3620 3.6mm F2.0 M12*0.5 1/3" 92°
MR-0420 4.0mm F2.0 M12*0.5 1/3" 80°
MR-0620 6.0mm F2.0 M12*0.5 1/3" 54°
MR-0820 8.0mm F2.0 M12*0.5 1/3" 43°
MR-1220 12mm F2.0 M12*0.5 1/3" 29°
MR-1620 16mm F2.0 M12*0.5 1/3" 20°
MR-2520 25mm F2.0 M12*0.5 1/3" 12°

Octavia 3.31mm F1.33 1/3 OV4689 M12 Automotive Lens
