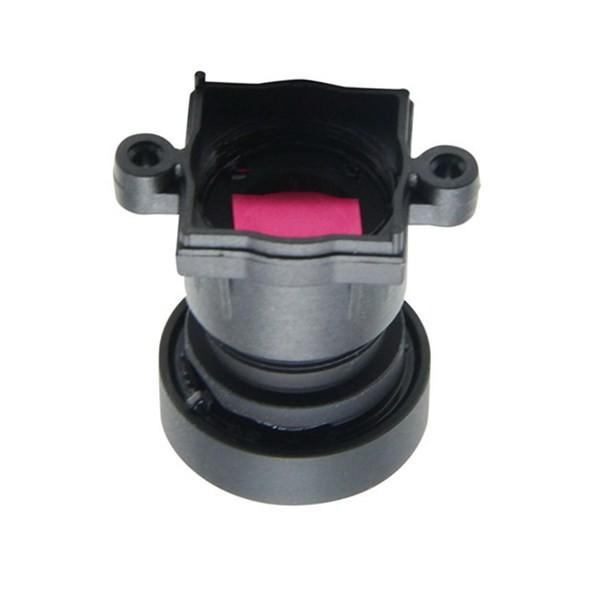

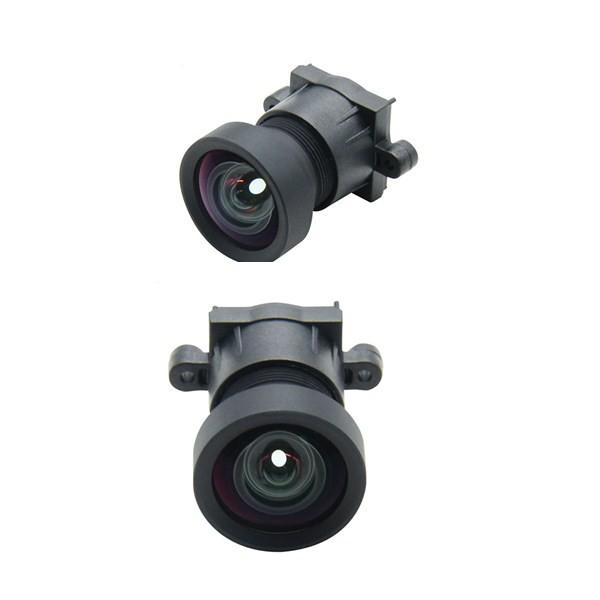

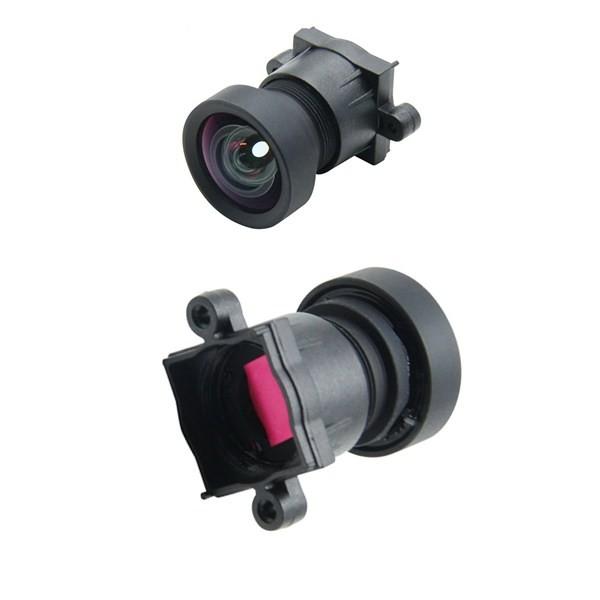

Wide Angle 3.24mm F2.7 1/2.5'' Backup Rear View Camera Lens
Wide Angle 3.24mm F2.7 1/2.5'' Backup Rear View Camera Lens
Wide Angle 3.24mm F2.7 1/2.5'' Backup Rear View Camera Lens
Wide Angle 3.24mm F2.7 1/2.5'' Backup Rear View Camera Lens
Wide Angle 3.24mm F2.7 1/2.5'' Backup Rear View Camera Lens
Wide Angle 3.24mm F2.7 1/2.5'' Backup Rear View Camera Lens
Specifications
Brand Name :
Octavia
Model Number :
L02927X-2059
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, PAYPAL, WEST UNION
Supply Ability :
1000000pcs/month
Delivery Time :
The regular products will be ready within 3 to 7 days, special models will need about 30 days
Packaging Details :
The inside is packed by blister box usually, the outer is packed by carton
Model: :
MR-L32427X-2181
Mount: :
M12*0.5
TTL :
22.5mm
Focal Length: :
3.24mm
Aperture: :
F2.7
BFL :
3.95mm
MOD :
0.2M
Material :
Metal, Plastic and Glass
Description

Factory production 1/2.5'' 3.24mm F2.7 Backup Rear View Camera wide Angle reversing lens:

1. Glass-plastic mixed lenses: the lens interior mostly uses glass lenses, plastic aspheric lenses mixed form, effective correction of aberration;

2. Low-dispersion glass materials: low-dispersion materials are used to effectively reduce dispersion. The effect of correcting the axial chromatic aberration at telephoto end and the vertical chromatic aberration at wide angle end is particularly significant.

3. Temperature drift control: Using optical materials with low thermal expansion coefficient, the lens can obtain clear pictures without re-focusing under different temperature environments.

4. Flatness of image surface: Excellent optical design technology is used to achieve high pixel and high contrast uniformly from the center to the periphery of the image.

5. Day-night confocal: Both visible and near-infrared light have almost no change in the focal plane, so that the image can get a clear effect in day and night.

Specification
Model MR-L32427X-2181 Mount M12*0.5
Focal Length 3.24mm BFL 3.95mm
Sensor Size 1/2.5'' Distortion <0.5%
Aperture F2.7 CRA <12.6°
MOD 0.2m RI >70%
Angle of View 95.4°*87°*57° Structure 4G2P
Operating Temp. -30°C ~ +75°C
Application Car Camera Lens

Features:

1. 3.24mm focal length 95.4 Degree of FOV surveillance lens, can add the IR filter

2. F2.7 aperture Backup Rear View Camera lens
3. 1/2.5" Format High quality wide Angle reversing lens

FAQ

Q1:what does your warranty covers?
A1:Our product is backed by 1 year limited warranty against manufacturing defects (material& workmanship).missing /lost or worn out parts are not covered under our warranty.
Q2:Can I get some samples at the first cooperation?
A2:Yes, we can give customer some samples for test at the first cooperation with each other.
Q3:How do you ensure your production?
A3:We have more than 500 employee in our factory for production line and the factory covers an area of 4000 square meters . And all of our product have passed the test such as SGS,CE,ISO.
Q4:When can I get the goods ?
