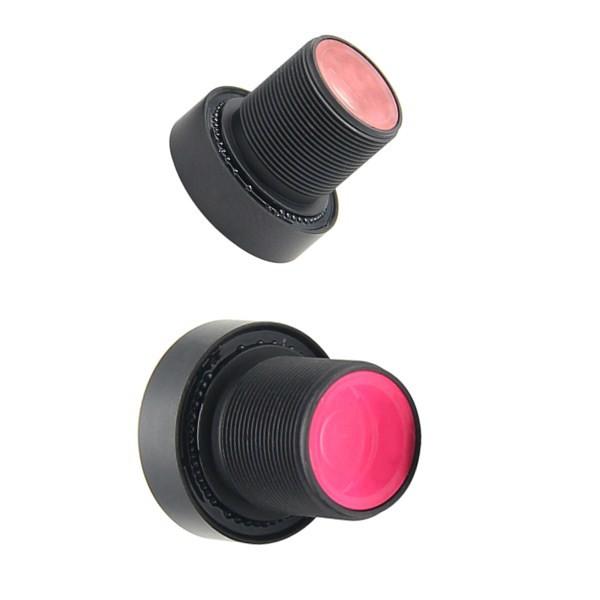

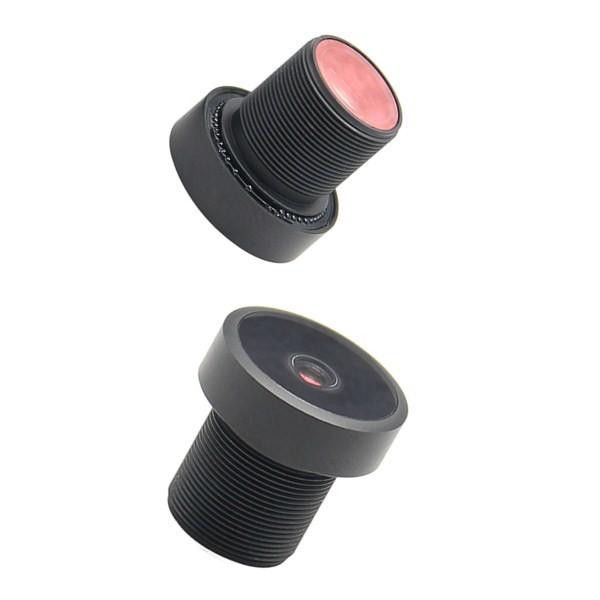

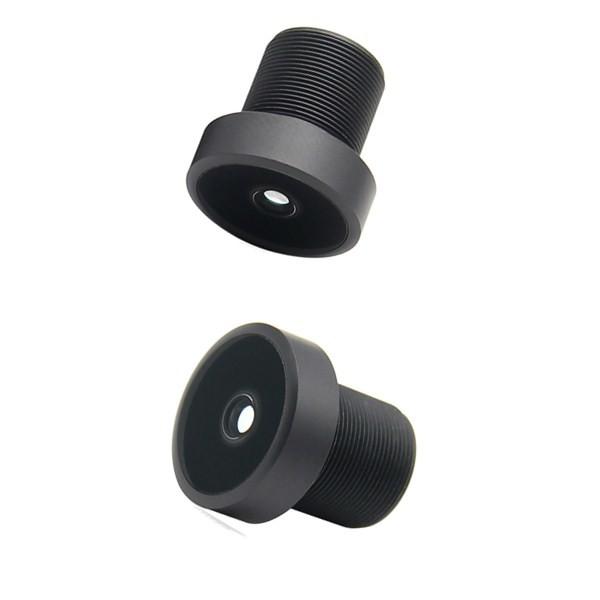

Night Vision Recorder 3.31mm F1.33 Cctv Wide Angle Lens
Night Vision Recorder 3.31mm F1.33 Cctv Wide Angle Lens
Night Vision Recorder 3.31mm F1.33 Cctv Wide Angle Lens
Night Vision Recorder 3.31mm F1.33 Cctv Wide Angle Lens
Night Vision Recorder 3.31mm F1.33 Cctv Wide Angle Lens
Night Vision Recorder 3.31mm F1.33 Cctv Wide Angle Lens
Specifications
Brand Name :
Octavia
Model Number :
MR-T03313S-O4689
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, PAYPAL, WEST UNION
Supply Ability :
1000000pcs/month
Delivery Time :
The regular products will be ready within 3 to 7 days, special models will need about 30 days
Packaging Details :
The inside is packed by blister box usually, the outer is packed by carton
Model: :
MR-T03313S-O4689
Mount: :
M12*0.5
TTL :
22.00mm
Focal Length: :
3.31mm
FOV :
126°*102°*54°
Aperutre :
F1.33
MOD :
0.2m
Material :
Metal and Glass
Description

New online 3.31mm car lens starlight night vision recorder 1 / 3 lens large aperture all glass HD:

Octavia has successfully developed many kinds of optical lenses through staff's hard work, and now many of them are separately used in technical fields including Reversing visible systems, Digital cameras, PC Cameras, Medical equipment, Accurate measuring apparatuses, scanners and Fingerprint recognition. Our products' unique structural design and excellent optical performance with competitive price make us gain the favor from both domestic and international markets.

Factory Information

Factory Size 50,00-100,00 square meters
Factory Country/Region Shenzhen, Fuzhou, China
No. of Production Lines Above 5
Contract Manufacturing ODM & OEM Service Offered
Annual Output Value Above US$10 Million

Specification
Model MR-T03313S-O4689 Mount M12*0.5
Focal Length 3.31mm Image circle φ6.90
Sensor Size 1/3' Distortion <15.1%
Aperture F1.33 RI >79%
MOD 0.2m CRA <6.2°
Angle of View 126°*102°*54° Structure 6E+1 IR
Operating Temp. -40°C ~ +85°C Sensor OV4689
Application car lens starlight

Features:
1. 3.31mm car lens starlight night vision recorder camera optical M12 lenses
2. 1/3 with image circle φ6.90 lens, large aperture F1.33 all glass optics lens
3. suitable to use for OV4689 Image sensor, FOV: 126°*102°*54°, could add the IR Filter 650nm, 850nm, 940nm

Night Vision Recorder 3.31mm F1.33 Cctv Wide Angle Lens

FAQ

Q1:what does your warranty covers?
A1:Our product is backed by 1 year limited warranty against manufacturing defects (material& workmanship).missing /lost or worn out parts are not covered under our warranty.
Q2:Can I get some samples at the first cooperation?
A2:Yes, we can give customer some samples for test at the first cooperation with each other.
Q3:How do you ensure your production?
A3:We have more than 500 employee in our factory for production line and the factory covers an area of 4000 square meters . And all of our product have passed the test such as SGS,CE,ISO.
Q4:When can I get the goods ?
A4:simple orders delivery within 5-7 days since payment received. massive orders delivery within 12-15 days since payment received.
