Specifications
Brand Name :
Octavia
Model Number :
MR-C02818W127-3MPC
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, PAYPAL, WEST UNION
Supply Ability :
1000000pcs/month
Delivery Time :
The regular products will be ready within 3 to 7 days, special models will need about 30 days
Packaging Details :
The inside is packed by blister box usually, the outer is packed by carton
Model: :
MR-C02818W127-3MPC
Mount: :
M12*0.5
Resolution: :
3MP
Focal Length: :
2.8mm
Image Format: :
1/2.7″
Aperture: :
F2.0
Field Angle(1/3%22): :
135°*115°*87°(1/2.7'')
Lens Size :
14*15.3mm
Description

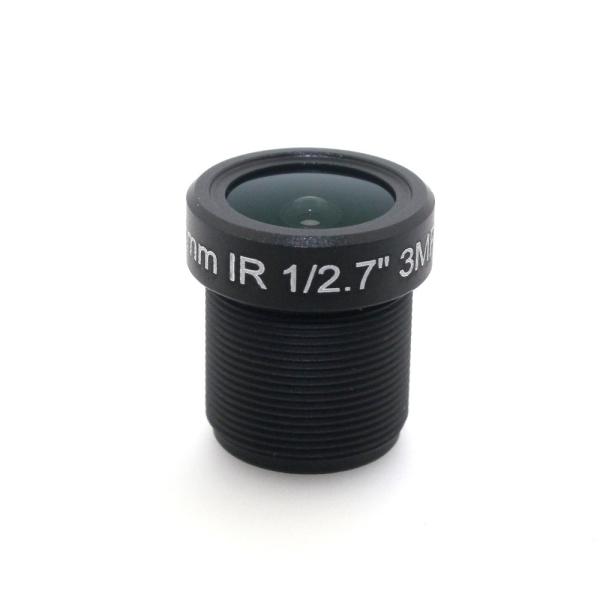

3MP 1/2.7" 2.8mm 120 Degrees Wide Angle View Fisheye CCTV IR Fixed Board Lens M12 MTV Mount Holder Support for Analog IP Camera:

Specification

Model MR-C02818W127-3MPC Mount M12*0.5
Focal Length 2.8mm Resolution 3.0MP
Sensor Size 1/2.7'' BFL 5.7mm
Aperture F2.0 EFL 3.7mm
MOD 20cm Dimension Φ14*15.3mm
Angle of View 135°*115°*87°(1/2.7'') Weight 5g
Remark Metal Lens

Features:
1. 3.0 megapixel HD lens,2.8mm F2.0 board MTV Lens, fixed iris manual focus lens.
2. 1/2.7" Format High quality manual iris cctv lens, optical cctv lens ,M12 Mount Lens
3. 2.8mm focal length 135 Degree of DFOV security lens
4. Wide angle fisheye Lens for box camera,Surveillance Lens, Mini Dome Camera Lens
5. This high resolution cctv lens can capture the all resolution of mega pixel camera,IP camera & High resolution camera.

Factory profile

Octavia firm is a professional manufacturer of CCTV Lenses. With a rigorous attitude in work and orderly management, our company developed very fast these years. So many years' manufacturing and exporting experience makes our working team more mature & professional in all the lines we handle. The continuous introduction of new technology takes our strength to a much higher level. What's more, being recommended by many kinds of advanced equipment & strong network distributors allows us to become a very trustworthy company.

Advantages and characteristics of lens:
1. Day & Night
With special design, IR series lenses make the portrait aberration lowest, and the focal planes for the visible and infrared light ranges almost the same, which means that the surveillance camera can deliver sharp images in both day and night applications.
2. Flat Image
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
3. Multi Coating
To minimize double image and flare present in backlight, multi coating is adhered to the lens surface. Hence, the lenses can show high contrast resolution performance even in backlight.
4. High resolution lens
The pixels of high resolution lenses are beyond 3.0 Megapixel,
IR Cut and Lens Holder are available as per request.

Customer Service:

1. Reply your enquiry in 24 working hours.

2. 12 Months warranty for all Octavia products.

3. Customized design is available. OEM are welcome.

4. Experienced engineers can solve all your technical problems

5. Goods will ship within 3 working days after received the verified payment.

6. We insist on providing excellent quality with prompt delivery and outstanding after-service at the possible price to our valued customers. We are always looking forward to building a good long-term cooperation relationship with customers.
