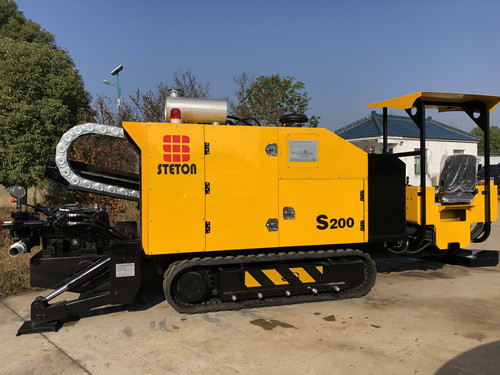

Durable And Reliable HDD Drilling Machine S200 With Air Cooling System
Durable And Reliable HDD Drilling Machine S200 With Air Cooling System
Durable And Reliable HDD Drilling Machine S200 With Air Cooling System
Durable And Reliable HDD Drilling Machine S200 With Air Cooling System
Durable And Reliable HDD Drilling Machine S200 With Air Cooling System
Durable And Reliable HDD Drilling Machine S200 With Air Cooling System
Durable And Reliable HDD Drilling Machine S200 With Air Cooling System
Durable And Reliable HDD Drilling Machine S200 With Air Cooling System
Specifications
Brand Name :
STETON
Model Number :
S200
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
10 UNITS PER MONTH
Packaging Details :
N/A
Engine power :
110 KW
Pullback force :
200KN
Rotation :
6000N.M
Mud Pump :
200L
Description

Horizontal Directional Drilling Machine - S200 For narrow space Pipe laying

I KEY point:

Mini machine Body;

Fast travelling and tracking speed;

Powerfull.

II Features:

Equipped with Cummins 110kw engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in city area.
Power head thrust and rotation adopts cycloid motor from Eaton, with large torsion, stable performance. Rotation have two speed , drilling faster and more torque; Thrust have 3 speed, let the work finished more faster.
American style surface, looks so powerful.
Simple electric circuit design, low failure rate, convenient maintenance.
Equipped with φ60×3000mm drill rods moderate machine size adapts to narrow and small working area and high efficient construction as well.
Mud flow control system, can depends customer project save water.
Auto anchoring system can be choose separate.

III Specifications:

Engine Power KW 110/2200
Max Thrust force KN 200
Max Pullback force KN 200
Max Torque N.M 6000
Max Rotary speed Rpm 180
Max carriage speed m/min 38
Max Mud pump flow L/min 200
Max Mud pressure Mpa 7±0.5
Main machine size mm 5880x1700x2150
Weight T 7
Diameter of drilling rod mm φ60
Length of drilling rod m 3
Max diameter of pullback pipe mm φ150 - φ700
Max construction length m 300
Incidence Angle ° 10～22
Climbing angle ° 14
