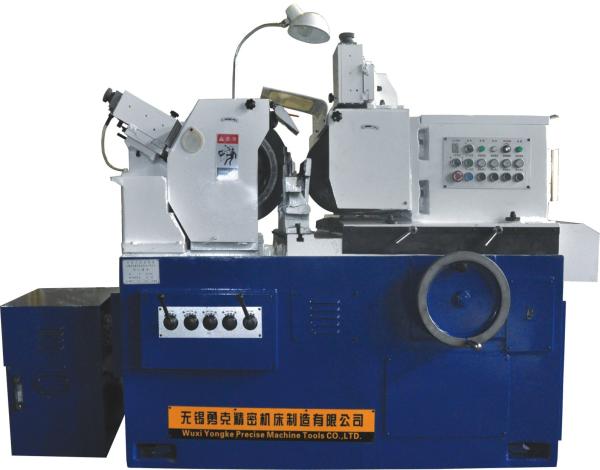

M1050A Centerless grinding machine, Grinding dia: 7-50mm. Max. grinding length: 120mm
M1050A Centerless grinding machine, Grinding dia: 7-50mm. Max. grinding length: 120mm
Specifications
Brand Name :
Yonke
Model Number :
M1050A
Certification :
ISO9001
Place of Origin :
Wuxi， China
MOQ :
1set
Price :
USD16000
Payment Terms :
T/T
Supply Ability :
50sets per 3 month
Delivery Time :
2-3month
Packaging Details :
plywood case
Grinding machine :
Centerless grinding machine
Description

Centerless grinding machine Type: M1050A

Contact: Min Chen

Email: chenminmin80@hotmail.com

Main application

The machine is used to semi-automatically plunge-through grinding the outer surface of ring parts, shaft parts, stage parts, tape shaped parts and other round turning surface etc.

  1. Plunge feed
  1. Grinding dia
  2. Max. Grinding length
  1. Thru-feed
  1. Grinding dia
  2. Grinding length
  1. Gri.wheel spec
  2. Reg.wheel spec
  3. Gri.wheel speed
  4. Reg.wheel speed
  5. Reg.wheel swivel angle
  1. Invertical plane
  2. In horizontal plane
  1. Feed rate of handwheel perdivision
  2. Height from centerline of gri.wheel &
    reg.wheel to workrest
  3. Toal power of machine
  4. Overall dimensions
  5. Machine weight
  6. Machining accuracy
    Roundness
    Cylindricity

7～50 mm

120mm

5～50mm

120mm

P400×150×203

PSA300×150×127

1668 r/min

20-200r/min

-2°～+5°

-1°～+3°

0.002mm

220mm

13.78KW

1920×1681×1479mm

2800Kg

0.002μm

0.003μm

Main features:

1. Grinding wheel support is stable, regular wheel support is movable.

2. Grinding wheel adopts cantilever type structure, Spindle adopts oil-film bearing.

3. Reg. wheeel adopts cantilever type structure. Spindle adopts integrity 1:30 taper sliding bearing.

4. Reg. wheel feeding adopts dovetail needle guide, feeding through differential leadscrew.

5. AC frequency converter is used to change the speed of Reg. wheel.
