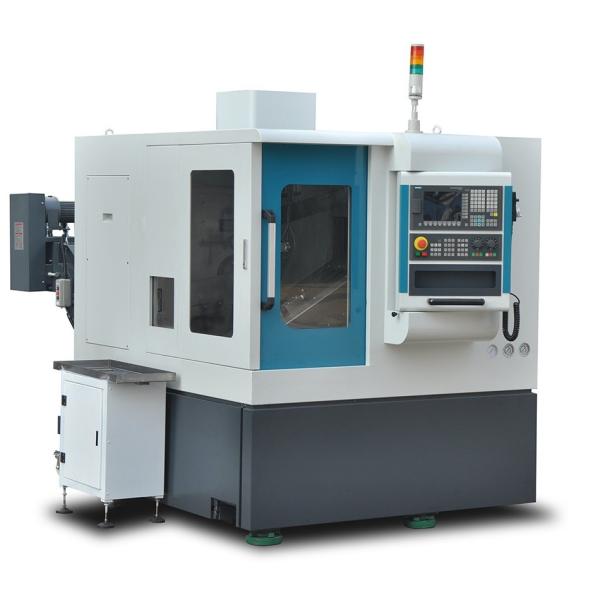

DKCK-M5 Automatic CNC lathe, CNC machining line, Siemens CNC system, slant body, power spindle head
DKCK-M5 Automatic CNC lathe, CNC machining line, Siemens CNC system, slant body, power spindle head
DKCK-M5 Automatic CNC lathe, CNC machining line, Siemens CNC system, slant body, power spindle head
DKCK-M5 Automatic CNC lathe, CNC machining line, Siemens CNC system, slant body, power spindle head
DKCK-M5 Automatic CNC lathe, CNC machining line, Siemens CNC system, slant body, power spindle head
DKCK-M5 Automatic CNC lathe, CNC machining line, Siemens CNC system, slant body, power spindle head
DKCK-M5 Automatic CNC lathe, CNC machining line, Siemens CNC system, slant body, power spindle head
DKCK-M5 Automatic CNC lathe, CNC machining line, Siemens CNC system, slant body, power spindle head
Specifications
Brand Name :
DIKE
Model Number :
DKCK-M5
Certification :
CE; ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
USD30000 per set
Payment Terms :
T/T
Supply Ability :
99 set 3 month
Delivery Time :
3 month
Packaging Details :
plywood case
CNC lathe :
automatic machining
Description

Wuxi Dike Machinery Co. Ltd. 20 years manufacturer for automatic lathe machining line.

Contact: Min Chen +86 158 5270 8933( wechat)

E-mail: chenminmin80@hotmail.com

DKCK-M5 CNC machine adopts Siemens CNC system, with slant body, strong coolant system, self-lubricating system, high precision power spindle head, casting bed etc. The machine is widely used for turning high precision ring parts like bearing ring, automobile ring parts, short shaft parts etc. The machining line is equipped with automatic loading and unloading mechanism and conveying system, it saves your labor cost, reduce cycle time, increase your working productivity, and lower your managment cost. For detail inquiry, please contact us.

With your workpiece and it machining requirments, we could supply you with best machining solution!

DKCK-M5 Performance Parameter

Item Name Parameter
Machining range Max. rotating diameter Ø450mm
Maximum clamping diameter Ø150mm
Automatic range Automatic Uploading M5 Built-in high speed uploading mechanism
Automatic Downloading M5Built-in high speed downloading mechanism
Composition Maximum travel X/Z 350/250mm
Fast move speed X/Z 20m/min
Automatic Clamp Dike Research
Spindle motor power 7.5KW servo motor
Spindle M5 special made high precision spindle unit
Spindle RPM 3000r/min stepless speed change
ball screw/Linear guider Hiwin/PMI, Taiwan
Machine bod High quality Casting
Electricity parts Electricity parts Schneider
Control system Siemens 808D
Driving type Servo motor 10N*M (X/Z)
Overall size Overall size 2000X1500X1700
net weight 3.5T
