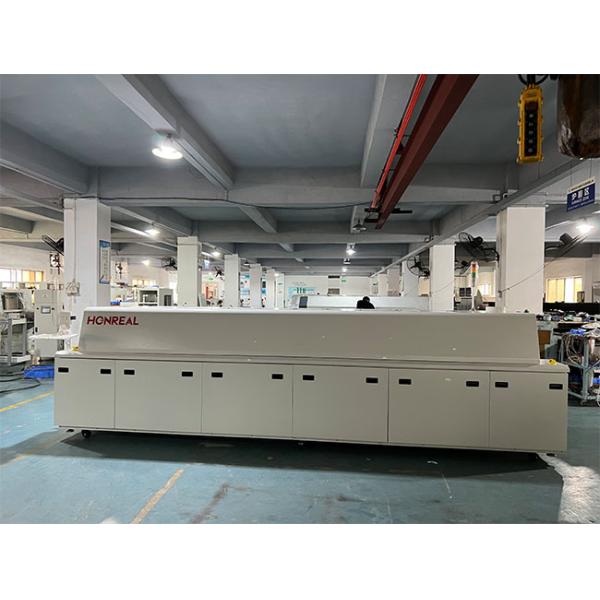

LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection
LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection
LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection
LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection
LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection
LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection
LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection
LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection
Specifications
Brand Name :
HONREAL
Model Number :
HR-8C
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/month
Delivery Time :
15 work days
Packaging Details :
woodencase
Type :
SMD reflow soldering machine
Usage :
SMT LED PCB Reflow Oven Soldering
Application :
SMT Assembly Production Line
Dimensions :
L5520*1430*1530 mm
Zones constitute :
Upper8,bottom8,2 cooling zones
Heating method :
Fully forced air convection
Temperature accurancy :
±1 ℃
Conveyor method :
Mesh belt and chain conveyor
Max PCB width :
350mm
Description

Smt Reflow Machine Led Reflow Soldering Machine Rail Support Tin Soldering Machine

Features:

HR Series High End/Nitrogen Reflow Soldering Machine

¤ Suitable For High End Products/Critical Process Criteria
¤ 6, 8, 10, 12 Heating Zones Available
​¤ Single/Dual Lane Configuration Available
​¤ Option Of Center Rail Support
​¤ Choices Of Air/Nitrogen Structure
​¤ High performance Of Heat Preservation/Power Saving
​¤ Setpoint Difference Of 90°C Between Adjacent Zone
¤​ Advance Small Circulation Structure, High Thermal Conduction With Low Across Temperature Deviation
¤​ Fast Thermal Compensation Ability With High CPK Index
​¤ Option Of KIC RPI Reflow Process Inspection System
​¤ 3 Zones Of Forced Natural Air Cooling/Option Of External Water Chiller
¤ ​Flux Management Unit Meet With Environmental Protection Requirement
​¤ SMEMA Interface
¤​ Option Of SECS/GEM Remote Control Feature

Machine

HR-8C

HR-10C

Heating zones

upper 8 zones

upper 10 zones

bottom 8 zones

bottom 10 zones

Heating tunnel

2900mm

3890mm

Dimension

L5520*1430*1530

L6300*1430*1530

Net weight

about 2760Kg

about 3060Kg

General power

64KW

83KW

Power consumption

Approx.7--30KW

Approx.9--38KW

Rising time

20 minutes

20 minutes

Controlling type

PC + PLC controlling

Heating method

Fully forced air convection

Temperature controlling

PID close-loop control, SSR drive

Temperature range

Ambient---300℃

Temperature accurancy

±1 ℃

Temperature uniform

±1.5 ℃

Cooling

1-2 cooling zones (top and bottom)

Conveyor method

Mesh belt and chain conveyor

Conveyor height

900±20mm

Max PCB width

350mm

PCB clearance

Top / Bottom 30mm

Conveyor direction

Left to right

Conveyor speed

300-2000mm/min

Hook lift

Electrical screw pole

UP/Downstream communication

SMEMA

Power supply

380v,3ph,50hz

Temperature zone part:

LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection

  • Small hot air circulation structure, hot air volume can be adjusted by computer.
  • Imported high temperature resistant wind motor with air volume up to 70CFM.
  • Extend the length of the temperature zone to 300mm/temperature zone
  • Nickel-chromium heating wire imported from Japan
  • 3mm thick electrolytic plate air distribution plate, uniform heat distribution
  • Segmented heating to reduce power consumption

Photo show:

LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection

LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection

Who We Are ?

Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.

LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection

LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection

Certification

LED Nitrogen SMT Reflow Soldering Machine Rail Support Fully Forced Air Convection

FAQ

Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.

Q:How is the training?

A:After buying our machines, your engineers can go to our company or it is so easy to operate

the machine according the training video and user manual,the user manual will come with the machine together.

Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.

Q: Is it hard to use these machines?

A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
