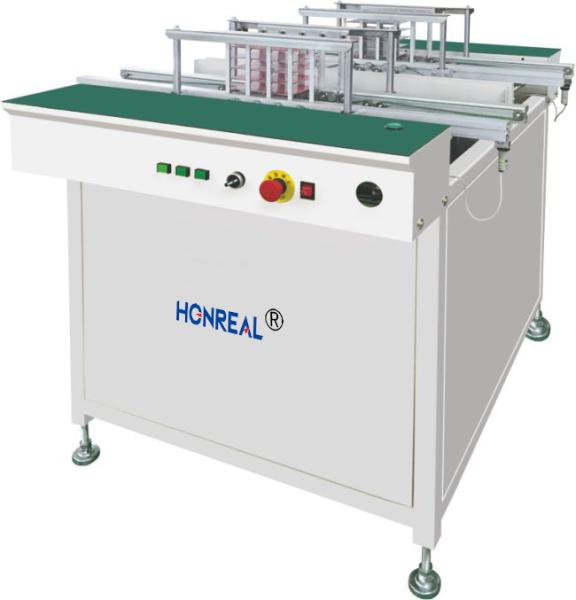

Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine
Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine
Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine
Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine
Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine
Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine
Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine
Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine
Specifications
Brand Name :
HONREAL
Model Number :
HR-1200S
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100SET/Month
Delivery Time :
10-20Workdays
Packaging Details :
Woodencase
PCB thickness :
Min0.6mm
Transport height :
900±20mm(or customized)
Power supply :
100-230V AC(customized) single phase, MAX 100V/A
PCB size (L×W)～(L×W)mm :
(50x50)～(450x350)mm
Machine size (L×W×H)mm :
800×700×910mm
Weight :
75kg
Description

Dual Rails Reject Conveyor SMT PCB NG OK Conveyor With Top Quality For PCB Making Machine

Description

This equipment is used for AOI to separate the good board and the bad board. During the inspection, the good board can continue to run without hindrance

Features

1.Reject,inspect and pass through modes provided.

2.PLC controller. 3.Stability enhanced by robust design.

4.Smooth and parallel width adjustment.

5.Length can be customized.

6.Speed is adjustable.

7.SMEMA compatible.

Note: Single or dual rails are customized.

Technical Parameters
Model HR-1200S HR-1200SD
Dimension 1000*890*1000mm 1000*1100*1000mm
PCB size 50*50-450*330mm 50*50-530*460mm
Maximum PCBs 5pcs or specify
Belt type Antistaic oblate belt
Convey speed 0.5-20m/min or specify
Power supply AC 110V or 220V ; single phase
Power consumption Max 100VA
Transport height 900±20mm(or customer specified))
PCB direction L-R or R-L (optional)
PCB thickness Min 0.6mm
Weight 100kg 120KG


Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine


Details:
Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine

Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine

Services and commitments


Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.

In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.

The company promises:

We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.

Certification
Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine

Packing
Dual Rails Reject PCB Handling Conveyors SMT PCB NG OK For PCB Making Machine
Contact Us

Company Shenzhen Honreal Technology CO.,Ltd.
Address No15,Shangnan Hongma Road, Shajing Street, Baoan District, Shenzhen, Guangdong Province, China
Tel +86755 2302 0279
Fax +86 755 2330 6782
Zip code 518125
Skype/Whatsapp/Wechat +8613715227009
Email: Monica@szhonreal.com
