Customized Automatic PCB Handling Equipment Dual Track With SMEMA
Customized Automatic PCB Handling Equipment Dual Track With SMEMA
Customized Automatic PCB Handling Equipment Dual Track With SMEMA
Customized Automatic PCB Handling Equipment Dual Track With SMEMA
Customized Automatic PCB Handling Equipment Dual Track With SMEMA
Customized Automatic PCB Handling Equipment Dual Track With SMEMA
Specifications
Brand Name :
HONREAL
Model Number :
HR-250NG
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100SET/Month
Delivery Time :
10-20Workdays
Packaging Details :
Woodencase
Magazine number :
Transport up:1pcs,transport down:1ps,(or customized)
Step pitches select :
1-4(10mm step pitches)
Transport height :
900±20mm(or customized)
Power supply :
100-230V AC(customized) single phase, MAX 300V/A
PCB size (L×W)～(L×W)mm :
(50x50)～(350x250)mm
Machine size (L×W×H)mm :
1700×1450×1200mm
Magazine size (L×W×H)mm :
355×320×563mm
Weight :
150kg
Description

Customized Automatic NG OK Pcb Handling Machine Magazine Dual Track Unloader With SMEMA For SMT Assembly Line

Description

This equipment is used for the receiving operation of the PCB board of the SMT production line, and it is suitable for receiving the NG board and the OK board after the AOI behind the reflow soldering machine.

Features

1.Panasonic PLC+Touch screen control , easy to operate.

2.Design with firm structure.

3.The upper and lower air clamps ensure the location of the material box accurately.

4.Special gas path design ensures that the PCB panel is not pushed.

5.With SMEMA signal.

Technical parameters
Function This equipment is used behind AOI,by receiving AOI signal,NG and OK PCB automatically stored separately .

PCB thickness

 Min0.6mm

Magazine number

 Transport up:1pcs,transport down:1ps,(or customized)

Step pitches select

 1-4(10mm step pitches)

PCB loading time

 Approx 6 seconds

Magazine change-over time

 Approx 30 seconds

Transport direction

 Left to right/right to left(optional)

Transport height

 900±20mm(or customized)

Air pressure

 4-6 bar, MAX30L/minute

Power supply

 100-230V AC(customized) single phase, MAX 300V/A

Specifications

Model No

 HR-250NG HR-330NG HR-390NG HR-460NG
PCB size (L*W)～(L*W)mm (50x50)～(350x250) (50x50)～(455x330) (50x50)～(530x390) (50x50)～(530x460)
Machine size (L*W*H)mm 1700*1450*1200 1950×1610×1200 2210×1730×1200 2210×1870×1200
Magazine size(L*W*H)mm 355*320*563 460×400×563 535×460×570 535×530×570
Weight 150kg 180kg 210kg 250kg

Customized Automatic PCB Handling Equipment Dual Track With SMEMA

Customized Automatic PCB Handling Equipment Dual Track With SMEMA

Customized Automatic PCB Handling Equipment Dual Track With SMEMA

Customized Automatic PCB Handling Equipment Dual Track With SMEMA

Customized Automatic PCB Handling Equipment Dual Track With SMEMA

Who We Are ?
Shenzhen Honreal Technology Co., Ltd. is an esteemed national high-tech enterprise, dedicated to the research, development, production, and sales of SMT equipment. We proudly serve the world's top 500 electronic companies. With a registered capital of 5 million, our company boasts an experienced technical team and possesses exceptional capabilities in technical innovation. Our long-term objective is to establish an enhanced product supply chain and service team, catering to diverse customer requirements. By prioritizing our customers and understanding their needs, we strive to deliver valuable services that exceed expectations.

Certification

Customized Automatic PCB Handling Equipment Dual Track With SMEMA

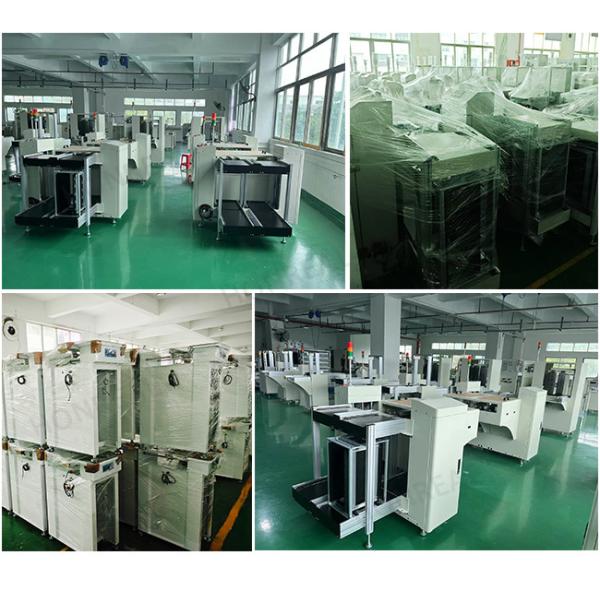

Packing

Customized Automatic PCB Handling Equipment Dual Track With SMEMA
