PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees
PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees
PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees
PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees
PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees
PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees
PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees
PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees
Specifications
Brand Name :
HONREAL
Model Number :
HR-350FB
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100SET/Month
Delivery Time :
10-20Workdays
Packaging Details :
Woodencase
PCB thickness :
Min0.6mm
Cycling time :
Approx 10 seconds
Transport height :
900±20mm(or customized)
Air pressure :
4-6 bar, MAX10L/minute
Power supply :
100-230V AC(customized) single phase, MAX 300V/A
PCB size (L×W)～(L×W)mm :
(50x50)～(450x350)mm
Machine size (L×W×H)mm :
500×850×1200mm
Weight :
110kg
Description

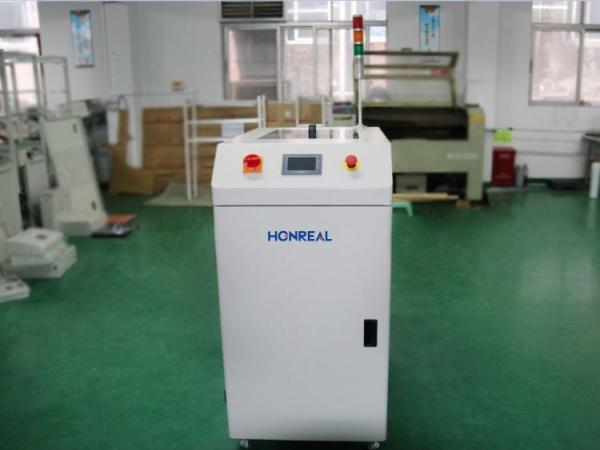

Plc Control System Turn Over PCB Conveyor 180 - 360 Degrees Automatic Smt Pcb Inverter

Turn over pcb 180-360 degrees Automatic SMT PCB inverter

PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees

Product introduction:

1.Stable and reliable PLC control system

2.Easy to operate LED touch screen control interface

3.Using cylinder flip, quick, smooth, precise alignment

4.Buffer deceleration design more stable, accurate

5.Optional pass working mode

6. Smooth and parallel width adjustment(leadscrew)

7.SMEMA port is compatible;

Technical parameters
Function This unit is used to invert PCB (180) Meet the need of two-sided machining
PCB thickness Min0.6mm
Cycling time Approx 10seconds
Transport direction Left to right/right to left(optional)
Transport height 900±20mm(or customized)
Air pressure 4-6 bar, MAX10L/minute
Power supply 100-230V AC(customized) single phase, MAX 300V/A

Specifications

Model No

 HR-350FB HR-460FB
PCB size (L×W)～(L×W)mm (50x50)～(450x350) (50x50)～(550x460)
Machine size (L×W×H)mm 500×850×1200 600×950×1200
Weight 110kg 130kg

PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees

PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees

Who We Are ?

Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.

PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees

Services and commitments
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.

In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.

Certification

PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees

Packing

PLC Control System PCB Handling Conveyors 180 Degrees 360 Degrees

Contact Us

Company Shenzhen Honreal Technology CO.,Ltd.
Address No15,Shangnan Hongma Road,
Shajing Street, Baoan District, Shenzhen, Guangdong Province, China
Tel +86 755 2302 0279
Fax +86 755 2330 6782
Zip code 518125
Skype/Whatsapp/Wechat +8613715227009
