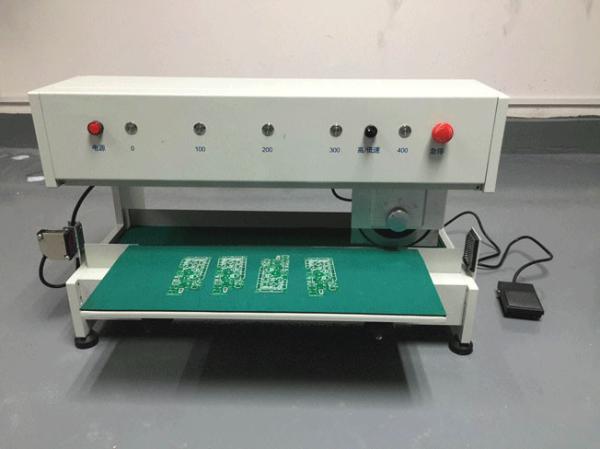

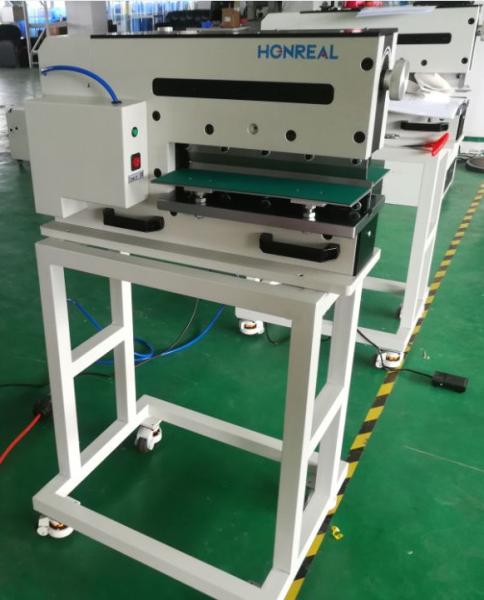

Automatic PCB Cutting Machine , PCB Depaneling Equipment Multi Blade
Automatic PCB Cutting Machine , PCB Depaneling Equipment Multi Blade
Automatic PCB Cutting Machine , PCB Depaneling Equipment Multi Blade
Automatic PCB Cutting Machine , PCB Depaneling Equipment Multi Blade
Automatic PCB Cutting Machine , PCB Depaneling Equipment Multi Blade
Automatic PCB Cutting Machine , PCB Depaneling Equipment Multi Blade
Specifications
Brand Name :
HONREAL
Model Number :
HR-5000
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets/ month
Delivery Time :
15 work days
Packaging Details :
Woodencase
Name :
PCB Cutting Machine
Max cutting length :
Not limit
Operation Mode :
Automatic
PCB thickness :
0.5-3.2mm
Cutting Width :
8-200mm
Dimension :
1100*500*1050mm
Description

PCB Depaneling Machine Multi Blade LED Pcb Cutting Machine PCB Depanelizer multi blade cutting machine


Features:
1.It can cut many boards with multiple sets of knives work at the same time.
2.The knife flywheel is adjustable as a whole from 0 to 5mm
3.The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm
4.The blade is made of Switzerland imported high speed and high precision steel material, which is durable and have a long service life.
5.It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7.Thickness range of PCB: 0.5-3.2mm
8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.
9.The machine adopts multiple blade to separate boards with simple operation and high efficiency.
10. It can connect the production line to separate the PCB, fitted for batch production.


Specification:

Max cutting length

No limit

Min cutting length

100mm

Max cutting width:

200mm

Min PCB width

8mm

PCB thickness:

0.5-3.2mm

Feeding speed:

0-500mm/s

Working temperature

10-35℃

Blade material(auto-lock function)

Imported high precision steel

Storge temperature

-20-50℃

Dimension:

1100*500*1050mm

Packaging weight:

425kgs


Automatic PCB Cutting Machine , PCB Depaneling Equipment Multi Blade

Automatic PCB Cutting Machine , PCB Depaneling Equipment Multi Blade
Automatic PCB Cutting Machine , PCB Depaneling Equipment Multi Blade
