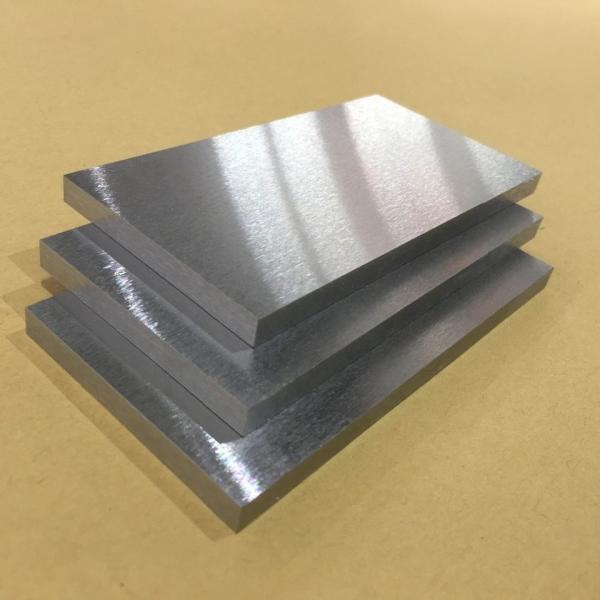

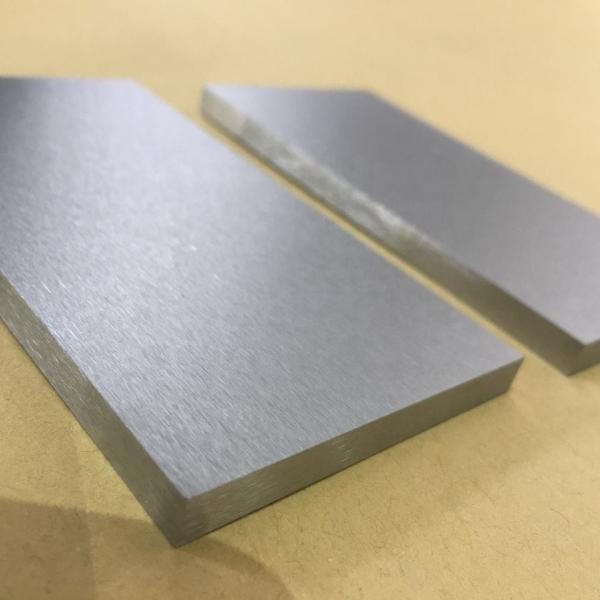

High Density WNiFe Heavy Alloy Plate 10mm Tungsten Nickel Iron
High Density WNiFe Heavy Alloy Plate 10mm Tungsten Nickel Iron
High Density WNiFe Heavy Alloy Plate 10mm Tungsten Nickel Iron
High Density WNiFe Heavy Alloy Plate 10mm Tungsten Nickel Iron
High Density WNiFe Heavy Alloy Plate 10mm Tungsten Nickel Iron
High Density WNiFe Heavy Alloy Plate 10mm Tungsten Nickel Iron
Specifications
Brand Name :
Sanhui
Model Number :
WNiFe/WNiCu
Certification :
ISO 9001:2008
Place of Origin :
Henan, China
MOQ :
10 kgs
Price :
USD 60-100 per kg
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
500kgs per month
Delivery Time :
15-20 days
Packaging Details :
plywood case
Name :
Tungsten Heavy Alloy Plate
Dimensions :
1.0-10mm
Grain Size :
0.6-0.8 micro
Application :
Balance weight, Military industry,Medical
Roughness :
Ra1.0
Conditions :
Vacuum annealed
Elongation :
5-22%
Tensile Strength :
780-980 Mpa
Density :
17.5-18.1 g/cm3
HRC :
28-32
Description

High Density WNiFe Plate Tungsten Nickel Iron Heavy Alloy Plate Tungsten Plate Price

Tungsten Alloy metals are mainly including W-Ni-Fe and W-Ni-Cu, are extensively used in military equipment, mechanical manufacturing, aircraft components, medical shields and sports equipment.

Our W-Ni-Fe alloy is used in collimator and shielding components to provide protection against X-ray and γ-ray radiation. A product manufactured from tungsten, nickel and copper, is distinctive due to its non-magnetic behavior. This material is used in the places to avoid magnetic interference.

WNiFe Alloy has played an significant role in weapon manufacturing with its characteristics of high strength, high strength, high density and good hardness, conductivity. and thermal conductivity. WNiFe alloy is widely applied in Industrial, aerospace and civil industry (such as the electrical industry, drilling industry, etc.)

In addition, WNiFe Alloy used in new type of medical CT machine,radition shield and protection components.

Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter/Vacuum
Density(g/cc) 16.85~17.25 17.15~17.85 17.75~18.35 18.25~18.25
Hardness(HRC) 32Max 30Max 40Min 33Max 31Max 40Min 34Max 32Max 700Min/850Min
Tensile Strength (Mpa) 770Min 900Min 1400Max 770Min 910Min 1440Max 735Min 920Min 35Max/33Max
Yield Strength 620Min 620Min 1280Max 650Min 650Min 1340Max 650Min 650Min ~
Elongation(%) 5Min 15Min 5Min 12Min 3Min 3Min 3Min 12Min

2Min / 6 Min
