Specifications
Brand Name :
SANHUI
Model Number :
WNiCu WNiFe
Certification :
ASTM Standard
Place of Origin :
China
MOQ :
10kgs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000kgs/month
Delivery Time :
7-10days
Packaging Details :
Exported Plywood Case
Name :
WNiFe Tungsten Heavy Alloy
Application :
Balance Wight/Military Industry/Medical Device
Density :
15.8-18.50 g/cm3
Material :
WNiFe/WNiCu
Shape :
Customized
Packing :
Exported Plywood Case
Description

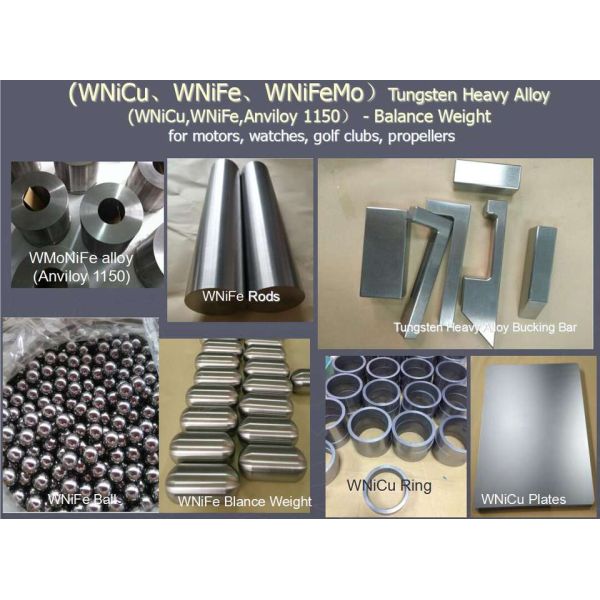

High Density Tungsten Heavy Alloy Bucking Bars for Aircraft Riveting

Introduction of Tungsten Heavy Alloy:

1. Dimension: According to customers' requirements
2. Density: 15.8-18.50 g/cm3
3. Composition: W content: 85-97%, W-Ni-Fe, W-Ni-Cu
4. Surface: Vacuum annealed or un-annealed

5. Application: balance weight, Military industry

Specification of Tungsten Heavy Alloy:

Product Name High Melting Point 3410°c Tungsten Heavy Alloy
Material Pure tungsten/alloy
Tensile 3500-4000
Roughness Ra1.0
Hardness 20HRC
Conditions Vacuum annealed or un-annealed
Dimension According to customers' requirements
Application Balance Weight/Military Industry/Medical Device
Density 15.8-18.50 g/cm3
Composition W content: 85-97%, W-Ni-Fe, W-Ni-Cu

Tungsten Heavy Alloy Grade:avy alloy sheet and plate

AMST 21014 class 1 AMST 21014 class 2
1. 90%WNiFe, 90%WNiCu
2. Density : 16.85-17.30 g/cm3
3. Hardness: 32HRC max
4. Elongation: 5 - 20%
5. Tensile Strength: 1470Mpa max
6. Impact Toughness:58J/cm2 max		 1. 92.5%WNiFe, 92.5%WNiCu
2. Density : 17.15-17.85 g/cm3
3. Hardness: 33HRC max
4. Elongation: 5 - 15%
5. Tensile Strength:1720Mpa max
6. Impact Toughness:54J/cm2 max
AMST 21014 class 3 AMST 21014 class 4
1. 95%WNiFe, 95%WNiCu
2. Density : 17.75-18.35 g/cm3
3. Hardness: 34HRC max
4. Elongation: 3 - 10%
5. Tensile Strength:971Mpa max
6. Impact Toughness:43J/cm2 max		 1. 97.5%WNiFe,97.5%WNiCu
2. Density : 18.25-18.85 g/cm3
3. Hardness: 35HRC max
4. Elongation: 1 - 8%
5. Tensile Strength:964Mpa max
6. Impact Toughness:22J/cm2 max

Tungsten heavy alloy has very high density. Its density is twice of steel. Tungsten heavy alloy is also characterised by low thermal coefficient, while it has high-energy rays and high absorption ability.

Tungsten heavy alloy (including tungsten nickel iron and tungsten nickel copper) is largely applied to be as balancing weight mould and high temperature moulds. Also it can be made into high-energy rays protective shielding part. The tungsten heavy alloy conforms to ASTM B 777-99 standard.
