Specifications
Brand Name :
SANHUI
Model Number :
WNiCu WNiFe
Certification :
ASTM Standard
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000kgs/month
Delivery Time :
7-10days
Packaging Details :
Exported Plywood Case
Name :
WNiCu WNiFe Tungsten Heavy Alloy
Application :
Balance Wight/Military Industry/Medical
Density :
15.8-18.50 g/cm3
Material :
Tungsten Nickel Ferro/Tungsten Nickel Copper
Shape :
Customizable
Packing :
Exported Plywood Case
Advantage :
Heavy Density,Strong Ray Absoration,Non toxic
Standard :
ASTM B777/ML-T-21014
Description

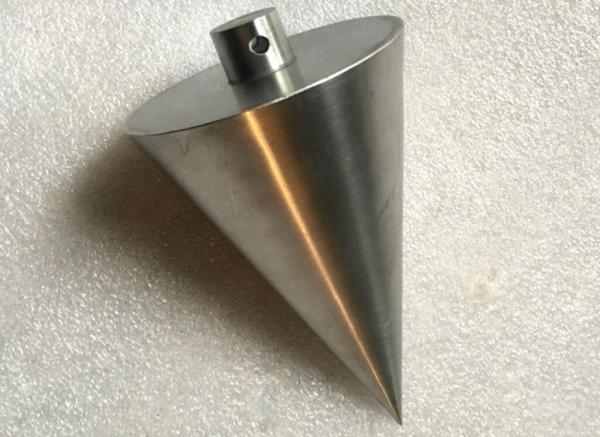

Tungsten Heavy Alloy Tungsten Collimator for Medcial Radition Shielding

Introduction of Tungsten Heavy Alloy:

1. Dimension: According to customers' requirements
2. Density: 15.8-18.50 g/cm3
3. Composition: W content: 85-97%, W-Ni-Fe, W-Ni-Cu
4. Surface: Vacuum annealed ,bright polished smooth surface

5. Application: balance weight, Military industry,Medical Shielding.

Physical and mechanical properties:

Material Density ( g/cm3 ) Tensile Strength ( Mpa) Elongation ( % ) HRC
85W-1.5Ni-4.5Fe 15.8-16.0 700-1000 20-33 20-30
90W-7Ni-3Fe 16.9-17.1 24-32
90W-6Ni-4Fe 16.7-17.0 24-32
91W-6Ni-3e 17.1-17.3 25-28 25-30
92W-5Ni-3Fe 17.3-17.5 18-28
92.5W-5Ni-2.5Fe 17.4-17.6 25-30
93W-4Ni-3Fe 17.5-17.6 15-25 26-30
93W-4.9Ni-2.1Fe
93W-4.9Ni-2.1Fe
93W-5Ni-2Fe 17.9-18.1 700-900 8-15 25-35
95W-3.5Ni-1.5Fe
96W-3Ni-1Fe 18.2-18.3 600-800 6-10 30-35
97W-2Ni-1Fe 18.4-18.5 8-14
98W-1Ni-1Fe 18.4-18.6 500-800 5-10
90W-6Ni-4Cu 17.0-17.2 600-800 4-8 25-35
93W-5Ni-2Cu 17.5-17.6 500-600

3-5

1, Tungsten radiation shielding capability is more than 1.7 lead when radiation is stronger,both radiation shielding capability away from more obvious;

2, Tungsten materials, non-toxic, and poisonous lead, tungsten alloy is not hazardous to human security;

3, Easy to carry tungsten alloy machining, high hardness, thickness and even more up-micron level;

4, Tungsten metal having the highest temperature, can be used as material in some ray collimator under high temperature.
