92.5WNiCu Tungsten Heavy Alloy Plate Parts For Radiation Shielding 16.5g/Cm3
92.5WNiCu Tungsten Heavy Alloy Plate Parts For Radiation Shielding 16.5g/Cm3
92.5WNiCu Tungsten Heavy Alloy Plate Parts For Radiation Shielding 16.5g/Cm3
92.5WNiCu Tungsten Heavy Alloy Plate Parts For Radiation Shielding 16.5g/Cm3
92.5WNiCu Tungsten Heavy Alloy Plate Parts For Radiation Shielding 16.5g/Cm3
92.5WNiCu Tungsten Heavy Alloy Plate Parts For Radiation Shielding 16.5g/Cm3
92.5WNiCu Tungsten Heavy Alloy Plate Parts For Radiation Shielding 16.5g/Cm3
92.5WNiCu Tungsten Heavy Alloy Plate Parts For Radiation Shielding 16.5g/Cm3
Specifications
Brand Name :
Sanhui
Model Number :
WNiCu
Certification :
ISO 9001:2008
Place of Origin :
Henan, China
MOQ :
10 kgs
Price :
USD 60-100 per kg
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
500kgs per month
Delivery Time :
15-25 days
Packaging Details :
plywood case
Shape :
Plate/Sheet
Dimensions :
1.0-10mm
Grain Size :
0.6-0.8 micro
Melting point :
3410C
Technology :
Sintering /rotary swaging
Hardness :
20HRC
Application :
Radiation Shielding, Balance Weight, Military industry
Roughness :
Ra1.0
Conditions :
Vacuum annealed or un-annealed
Description

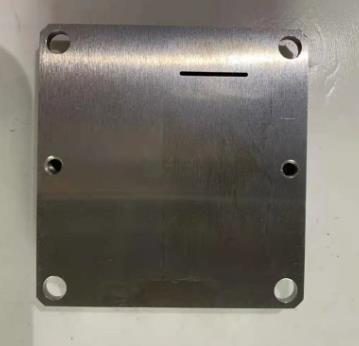

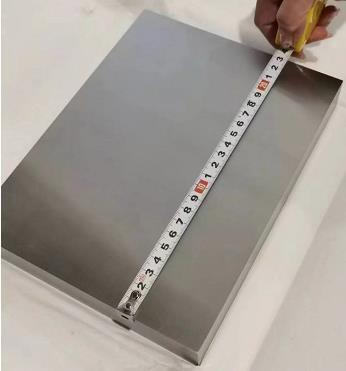

92.5WNiCu Tungsten Heavy Alloy Plate Parts With Density 16.5-18.75g/cm3

Introduction of WNiCu Tungsten heavy Alloy

Tungsten nickel copper alloy is based on high tungsten (W>90%) alloys containing nickel and copper; Tungsten nickel iron alloy is composed of

tungsten, small amount of nickel and iron added to the matrix (W>90%) alloy.

Tungsten nickel copper alloy is widely used in radiation shielding and generating devices, nuclear power and energy components, aerospace components, electronic industry, etc

Chemical Composition Density(g/cm3) Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Hardness (HRC) Magnetic
W NiCu
90 Balance 16.85-17.25 ≥648 ≥517 ≥2 32 No
92.5 Balance 17.15-17.85 ≥648 ≥517 ≥2 33 No
95 Balance 17.75-18.35 ≥648 ≥517 ≥1 34 No

WNiCu Tungsten Heavy Alloy Plates Performance

- non-magnetic

- high density ~18.8 g/cm3

- high strength: tensile strength 600-900 mpa

- shielding ability: tungsten alloy has more than 7 times radiation shielding ability than that of lead under the same ray thickness, the stronger the ray, the more obvious the difference between the ability of tungsten alloy and lead

- thermal conductivity: tungsten alloy thermal conductivity is 5 times of die steel

- thermal expansion coefficient is small: tungsten alloy thermal expansion coefficient 4~6×10-6/℃, only 1/2-1/3 of iron or steel

- has good plasticity, processability and weldability

- compared to lead toxic, tungsten alloy material has environmental protection characteristics, using tungsten alloy shielding parts to make radiation detectors is not harmful to human safety

Compared with tungsten-nickel-iron alloy, WNiCu has played an unique anti-jamming advantage in the sensitive to magnetic environment.

92.5WNiCu Tungsten Heavy Alloy Plate Parts For Radiation Shielding 16.5g/Cm392.5WNiCu Tungsten Heavy Alloy Plate Parts For Radiation Shielding 16.5g/Cm3
