Hardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding Material
Hardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding Material
Hardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding Material
Hardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding Material
Hardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding Material
Hardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding Material
Hardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding Material
Hardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding Material
Specifications
Brand Name :
Sanhui
Model Number :
WNiFe/WNiCu
Certification :
ISO 9001:2008
Place of Origin :
Henan, China
MOQ :
10 kgs
Price :
USD 60-100 per kg
Payment Terms :
D/A, D/P, T/T, T/T, Western Union
Supply Ability :
500kgs per month
Delivery Time :
15-20 days
Packaging Details :
plywood case
Material :
WNiFe/WNiCu
Dimensions :
1.0-10mm
Grain Size :
0.6-0.8 micro
Melting point :
3410C
Technology :
Sintering /rotary swaging
Hardness :
20HRC
Application :
balance weight, shielding parts, military industry
Tensile :
3500-4000
Roughness :
Ra1.0
Conditions :
Vacuum annealed or un-annealed
Description

Hardness HRC35 Tungsten Alloy WNiCu Parts For Radiation Shielding Material

Introduction of Tungsten Heavy Alloy

Tungsten based heavy alloy is a kind of alloy based on tungsten (tungsten content is usually

79% ~ 97%), composed of a small amount of Ni, Fe, Cu, Co, Mo, Cr and other elements, also known as high-density tungsten alloy or heavy alloy. It is generally produced by powder metallurgy process, and the common materials are tungsten nickel iron alloy and tungsten nickel copper alloy.

1. Dimension: According to customers' requirements
2. Density: 15.2-19.0 g/cm3
3. Composition: W content: 85-97%, W-Ni-Fe, W-Ni-Cu
4. Surface: Vacuum annealed or un-annealed

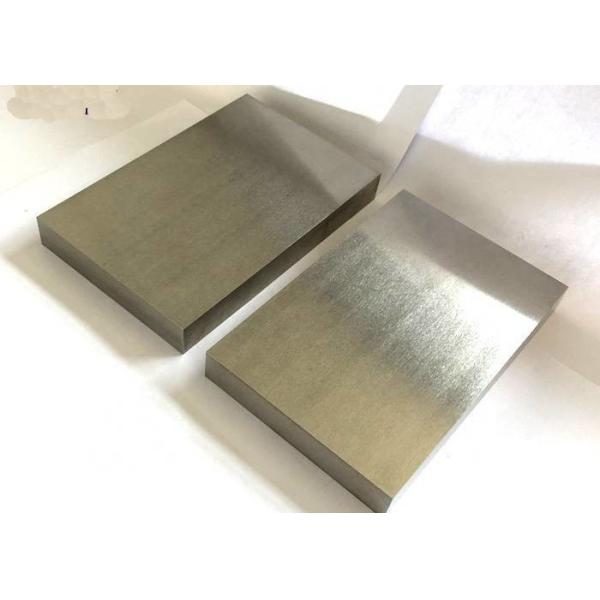

5. Shape: plate, bar, customized parts

Tungsten based heavy alloy has the advantages of high density, high strength, low expansion coefficient, good high temperature oxidation resistance, good machining performance, wear resistance and strong ray absorption ability. Based on these excellent functions, it is widely used in aerospace, aviation, military, oil drilling, electrical instruments, medicine and other industries. It mainly includes:

1. Tungsten alloy benchmark, fishing pendant series of tungsten alloy darts

Tungsten bead and tungsten ball series

2. Balance weight series: balance weight for machinery; Flying hammer; Oil drilling counterweight rod; Golf counterweight; Racing car counterweight; Mobile phone and game console vibrator; Gyroscope rotors for aviation and spacecraft; Clock pendulum; Balance weight ball; Shockproof cutter bar.

3 die-casting die for mechanical manufacturing

4 radiation shielding material

Chemical composition and physical properties of tungsten heavy alloy

Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter/Vacuum
Density(g/cc) 16.85~17.25 17.15~17.85 17.75~18.35 18.25~18.25
Hardness(HRC) 32Max 30Max 40Min 33Max 31Max 40Min 34Max 32Max 700Min/850Min
Tensile Strength (Mpa) 770Min 900Min 1400Max 770Min 910Min 1440Max 735Min 920Min 35Max/33Max
Yield Strength 620Min 620Min 1280Max 650Min 650Min 1340Max 650Min 650Min ~
Elongation(%) 5Min 15Min 5Min 12Min 3Min 3Min 3Min 12Min

2Min / 6 Min

Package Inspection

We will offer material certificate after finishing production which includes chemical properties, mechanical properties, size and so on. Our products are packed by wooden boxes specialized for exportation. All of our products are separated by wet-proof paper.

Hardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding MaterialHardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding Material

Hardness HRC35 Tungsten Heavy Alloy WNiCu Parts For Radiation Shielding Material
