Specifications
Brand Name :
Sanhui
Model Number :
WNiFe/WNiCu
Certification :
ISO 9001:2008
Place of Origin :
Henan, China
MOQ :
10 kgs
Price :
USD 100-200 per kg
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
500kgs per month
Delivery Time :
15-20 days
Packaging Details :
plywood case
Dimensions :
1.0-10mm
Melting point :
3410℃
Technology :
Sintering /rotary swaging
Hardness :
20HRC
Application :
balance weight, shielding parts, Military industry
Tensile :
3500-4000
Roughness :
Ra1.0
Conditions :
Vacuum annealed or un-annealed
Description

90WNiCu Tungsten Nickel Copper Alloy Plates For Shielding Part 16.85~17.25 Density

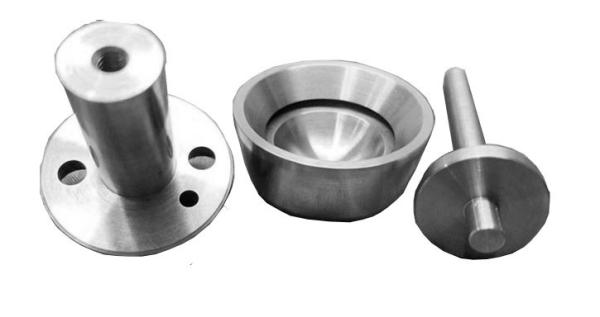

Introduction of tungsten heavy alloy shielding part


Tungsten alloy shield is a device used to shield radioactive substances to avoid injury. It is ade of tungsten alloy material, it is a radiation shielding material that can be well used to replace lead and steel

Applications of Tungsten Nickel Copper Alloy:


First, WNiCu alloy can be used as shielding material, which has good absorption effect for X-ray and gamma ray, and is suitable for the field of ray shielding sensitive to magnetic environment;

Second, WNiCu is used as the electrical contact of high-voltage electrical switch and the electrode for electrical processing, which is mainly due to the strong conductivity and good high temperature resistance of the alloy;

Third, it is used as gyroscope rotor and some equipment that need to work in the magnetic field environment, because it has good diamagnetic performance;

Fourth, applied as various counterweights.


Properties of tungsten heavy alloy:

1. Good radiation shielding ability

2.Smaller volume and thickness

3.Good corrosion resistance, higher strength

4.Excellent machinability

Specifications of tungsten heavy alloy:


Chemical composition:

Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter/Vacuum
Density(g/cc) 16.85~17.25 17.15~17.85 17.75~18.35 18.25~18.25
Hardness(HRC) 32Max 30Max 40Min 33Max 31Max 40Min 34Max 32Max 700Min/850Min
Tensile Strength (Mpa) 770Min 900Min 1400Max 770Min 910Min 1440Max 735Min 920Min 35Max/33Max
Yield Strength 620Min 620Min 1280Max 650Min 650Min 1340Max 650Min 650Min ~
Elongation(%) 5Min 15Min 5Min 12Min 3Min 3Min 3Min 12Min

2Min / 6 Min
