Customized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High Heat
Customized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High Heat
Customized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High Heat
Customized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High Heat
Customized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High Heat
Customized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High Heat
Customized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High Heat
Customized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High Heat
Specifications
Brand Name :
Sanhui
Model Number :
W75Cu25
Certification :
ISO 9001:2008
Place of Origin :
Henan, China
MOQ :
5 Kilograms
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
1000 kgs per month
Delivery Time :
15-20 days
Packaging Details :
plywood case
Name :
Tungsten Copper Alloy Parts
Shape :
Customized
Grade :
W75Cu25
Density :
14.5g/cm3
Application :
high voltage discharge electrodes, high voltage discharge electr
Description

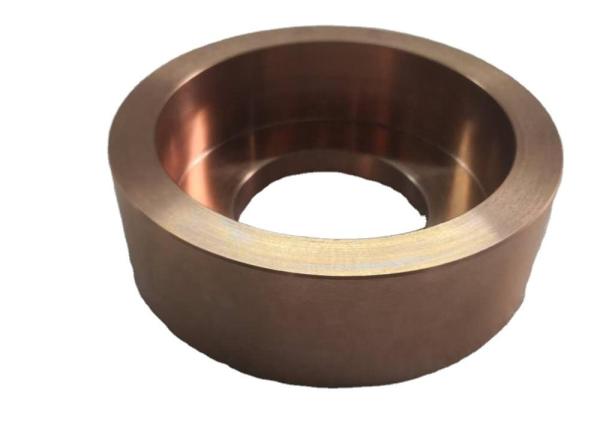

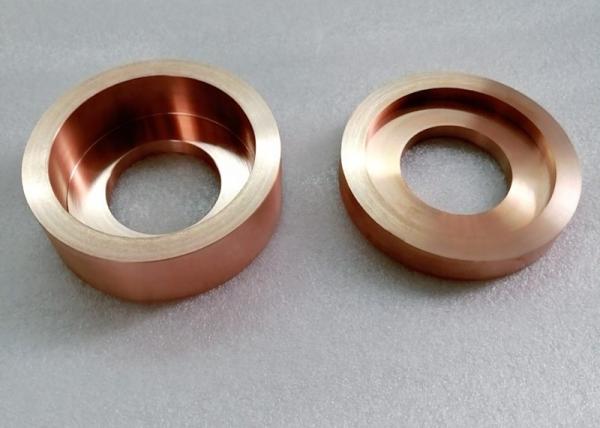

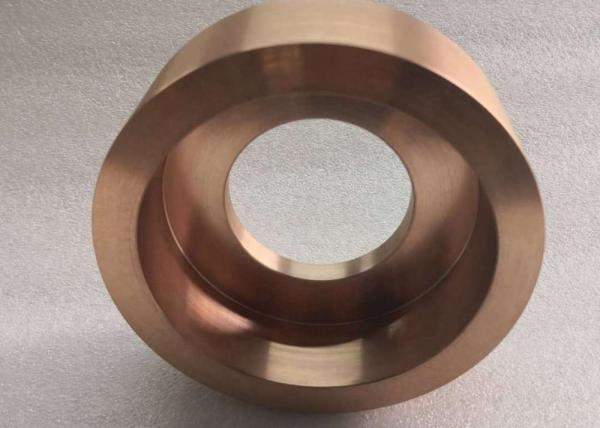

Customized CuW70 Copper Tungsten Alloy parts as Welding Wheels with High Heat

Tungsten Copper alloy Properties:

Tungsten-copper alloy features good heat and electrical conductive, high temperature resistance strength and ductility.

Tungsten copper alloy applications:
Tungsten copper alloy is widely used to manufacture switch contact for high-voltage electrical appliances, rocket nozzle throat liner and sternpost rudder, and other high temperature components and parts. In addition, it also can be used to make electrode for spark processing, high temperature mold and other high heat and electrical conductive parts.

Tungsten Copper Alloy types,chemical compositions and main properties:

Type Chemical composition of copper tungsten alloy(%) Resistivity(cm) Tensile strength(kg/mm2) Hardness Density(g/cm3)
W Cu
F6002E 60 balance <=3.26*10-6 >=130 >=160 >=12.70
70 <=3.80*10-6 >=200 >=13.80
80 <=4.00*10-6 >=220 >=15.00

Brand and NO. Chemical components% Physical properties

Cu

Total impurities

≤

W

Density

(g/cm³)

≥

Hardness

HB

≥

Resistivity

(µΩ·cm) ≤

Conductivity

IACS%≥

Bending strength

Mpa≥
CuW(50) 50±2.0 0.5 Bal. 11.85 115 3.2 54
CuW(55) 45±2.0 0.5 Bal. 12.30 125 3.5 49
CuW(60) 40±2.0 0.5 Bal. 12.75 140 3.7 47
CuW(65) 35±2.0 0.5 Bal. 13.30 155 3.9 44
CuW(70) 30±2.0 0.5 Bal. 13.80 175 4.1 42 790
CuW(75) 25±2.0 0.5 Bal. 14.50 195 4.5 38 885
CuW(80) 20±2.0 0.5 Bal. 15.15 220 5.0 34 980
CuW(85) 15±2.0 0.5 Bal. 15.90 240 5.7 30 1080
CuW(90) 10±2.0 0.5 Bal. 16.75 260 6.5 27 1160

Company Information:

Zhengzhou Sanhui Co. Ltd is a professional large-scale manufacturer of all types of refractory metal materials and their alloy products (like tungsten, molybdenum, titanium, etc). Our main products include various tungsten, molybdenum, titanium, tantalum, niobium, zirconium and nickel products, such as rods, sheets, wires, crucibles and boats with various specifications. We can also provide various special-shaped products according to customers requirements. Currently, Sanhui metal products are already exported to Japan, Southeast Asia, German, France, USA, Taiwan and other countries and regions.

Shipping Samples:

Customized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High HeatCustomized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High Heat

Customized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High HeatCustomized CuW70 Copper Tungsten Alloy Parts As Welding Wheels With High Heat
