Specifications
Brand Name :
Custom
Model Number :
XF-1038
Certification :
ISO9001, , CE, UL, TUV
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
8000 pieces per month
Delivery Time :
5 -20 working days after receiving deposit
Packaging Details :
Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
Product name :
Ceramic thermal Insulator
Material :
Zirconia ceramic
Color :
White, or OEM
Function :
Ceramic housing for Heater
Max application temperature :
1050 ℃
Density :
6.0g/cm3
Dielectric Constant :
26
Flexural Strength @ 700℃ :
210 Mpa
Application :
Refractory Heat Resistant Zirconia Ceramic Parts
Description

Machinable Zirconia Ceramic Thermal Insulator / Ceramic Housing for Heater Thermistor

Key words : Ceramic Housing

Machinable ceramic processes good machinability and can be lathed, milled, planed, ground, bored, incised and threaded. It also has the advantages of insulation, pore-free, high/low-temperature resistant, acid and alkali resistant and thermal impact resistant.

Advantages of Ceramic Housing :

1. Refractory.
2. Long Service Life.
3. Good Polished Surface.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.

They deliver 10 times longer working life than other refractory and heat resistant materials.

Properties Sheet of ceramic housing :

Properties Units 95 Alumina 99 Alumina Zirconia
Density ɡ / cm3 3.65 3.92 5.95 - 6.0
Water Absorption 0 0 0
Coefficient of Thermal Expansion 10-6 / K 7.9 8.5 10.5
Modulus of Elasticity Young’s Mod Gpa 280 340 210
Poisson’s Ratio / 0.21 0.22 0.3
HV Hardness Mpa 1400 1650 1300 - 1365
Flexural Strength @ Room Temperature Mpa 280 310 950
Flexural Strength @ 700℃ Mpa 220 230 210
Compressive Strength@Room Temperature Mpa 2000 2200 2000
Fracture Toughness Mpa * m½ 3.8 4.2 10
Heat Conductivity @ Room Temperature W / m * k 18 - 25 26 - 30 2.0 - 2.2
Electrical Resistivity @ Room Temperature Ω*mm2 / m >1015 >1016 >1015
Max Application Temperature 1500 1750 1050
Resistance to Acid Alkaline / High High High
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV / mm 16 22 /
Thermal Shock Resistance Δ T ( ℃ ) 220 180 - 200 282 - 350
Tensile Strength @ 25℃ Mpa 200 248 252

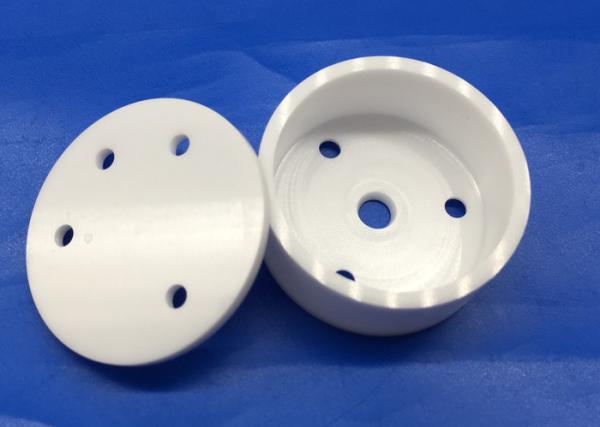

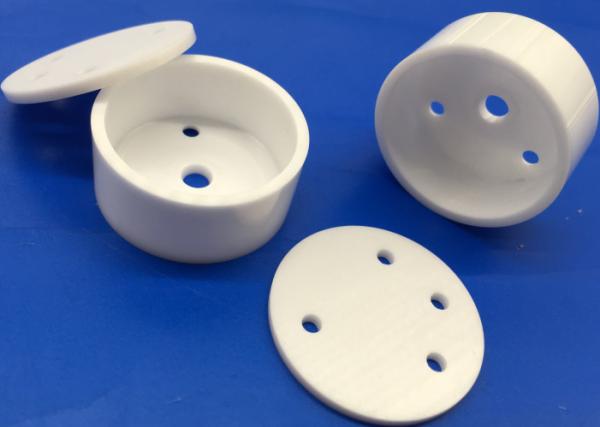

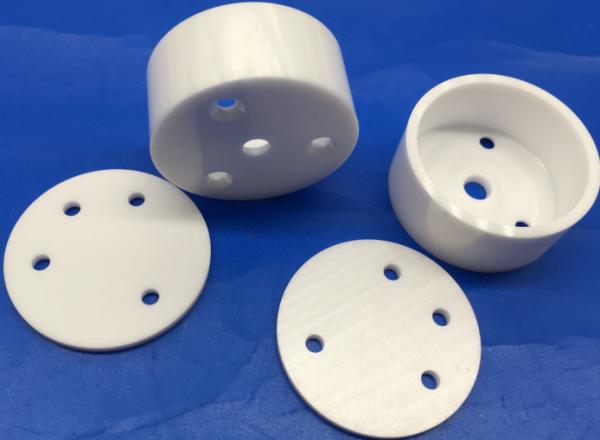

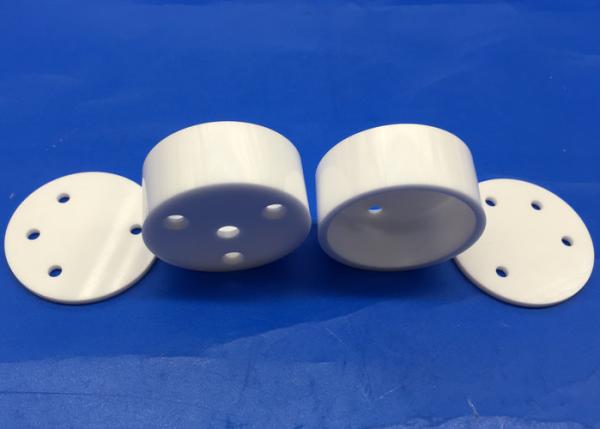

Related product photos:

Machinable Zirconia Ceramic Parts Thermal Insulator / Ceramic Housing For Heater Thermistor

Machinable Zirconia Ceramic Parts Thermal Insulator / Ceramic Housing For Heater Thermistor

View More Products

Packaging and Shipping

Zirconia Ceramic Solenoid Spacer will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

Machinable Zirconia Ceramic Parts Thermal Insulator / Ceramic Housing For Heater Thermistor


Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
