Specifications
Brand Name :
Mingrui
Model Number :
Customer's Requirements
Certification :
ISO9001:2015,,CE
Place of Origin :
China,Guangdong
MOQ :
1 pieces
Price :
Negotiations
Payment Terms :
Western Union, L/C, T/T, D/P, D/A
Supply Ability :
500 pieces week
Delivery Time :
15 -20 working days after the order confirmed
Packaging Details :
will be packed in wooden box, carton, plastic box, standard export package or 100% as per your requirements.
Content :
Alumina/Zirconia ceramic and Stainless Steel
Accuracy :
+-0.001mm
Fit Tolerance :
+-0.005mm
Application :
Industrial Ceramic, wire guide,industrial
Size :
According To Technical Drawing
Compressive Strength :
2500 Mpa or customized
Flexural Strength :
900-1200 Mpa
Ra :
as fine as 0.1
Structure :
Hydraulic system
Surface Treatment :
Polishing or glazing
Description

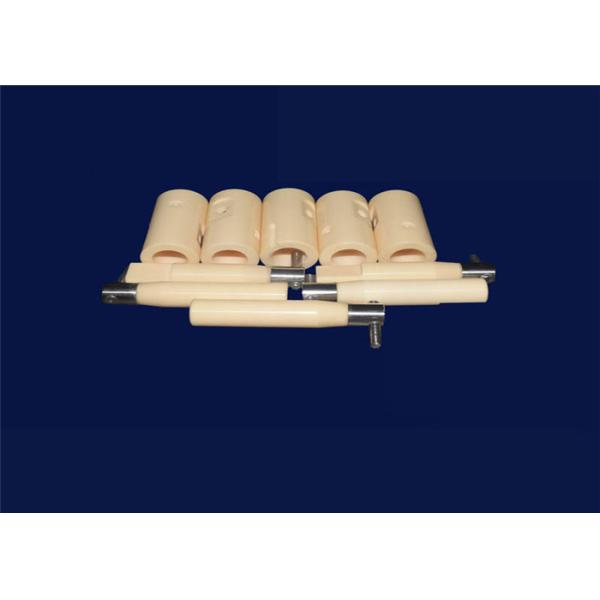

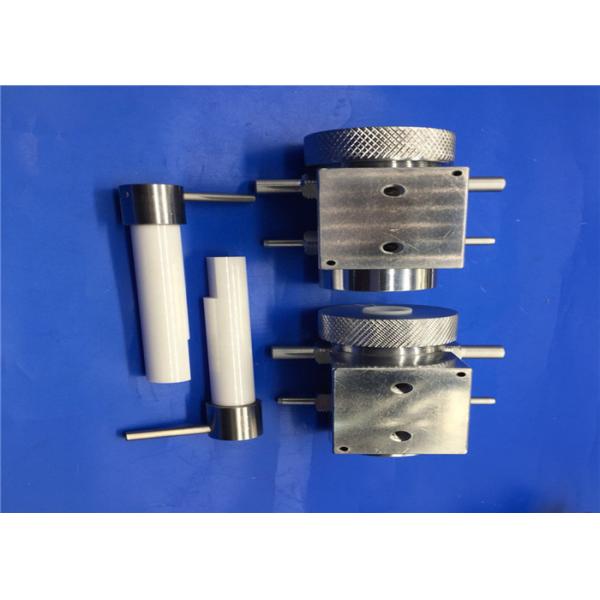

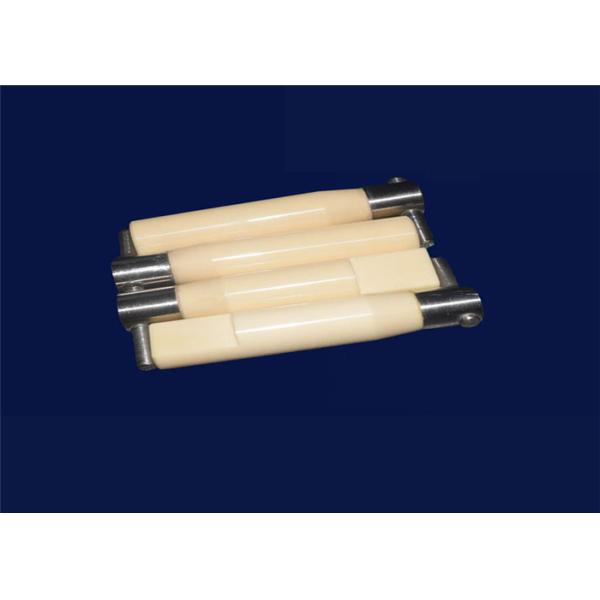

White Zirconia Ceramic Triplex Pump / Piston Pump For Automobile Industry

Product Description

Unlike traditional ceramics that tend to be hard and brittle, Zirconia has high strength, wear resistance, and flexibility far beyond those of most other technical ceramics. Zirconia is a very strong technical ceramic with excellent properties in hardness and corrosion resistance, all without the typical property of ceramics – brittleness. Its unique resistance to crack propagation and high thermal expansion make it an excellent material for joining ceramics with metals like steel. Due to Zirconia’s properties it is sometimes referred to as the "Ceramic steel".

The shapes we can provide include rods, shafts, plungers, bars, tubes, pipes, sleeves, bushings, nozzles, rings, plates, sheets, substrates, rollers, washers, crucibles etc, OEM manufacturing is available, we can machine according to customers' drawings or designs, high precision or complicated components are welcome.


Features

1. Fire Resistance.
2. Long Working Life.
3. High Polishing Precision.
4. Superior Mechnical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.

Properties of Alumina and Zirconia Ceramics :

Properties Units 95 Alumina 99 Alumina ZrO2
Density g / cm³ 3.65 3.92 5.95-6.0g/cm³
Water absorption % 0 0 0
Coefficient of thermal expansion 10-6/K 7.9 8.5 10.5
Modulus of Elasticity Young's Mod GPa 280 340 210
Poisson's ratio / 0.21 0.22 0.3
HV Hardness HV MPa 1400 1650 1300-1365
Flexural Strength @ room temperature MPa 280 310 950
Flexural Strength @700°C MPa 220 230 210
Compressive Strength @ room temperature MPa 2000 2200 2000
Fracture Toughness MPa *m 1/2 3.8 4.2 10
Heat conductivity @ room temperature W/ m*k 18-25 26-30 2-2.2
Electrical Resistivity @ room temperature Ω*mm2 /m >1015 >1016 >1015
Max use temperature °C 1500 1750 1050
Resistance to acid alkaline / high high high
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV/mm 16 22 /
Thermol Shock Resistance △ T ( °C ) 220 180-200 280-350
Tensile Strength @ 25 °C MPa 200 248 252



Company Introduction:


Dongguan Ming Rui Ceramic Technology Co., LTD., a professional manufacturer of machined ceramic parts, has 10 senior engineers and lots of technicians. We produce strengthened structure zirconia ceramic bar, ceramic tube, ceramic shaft, ceramic plate, ceramic sleeve, ceramic valve, ceramic plunger and ceramic arm. The products are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military and some other high-end areas.
In cooperation with Tsinghua University, we've achieved great successes in particular requirements. With our professional knowledge and business experience in machined ceramic parts, low-budget and high-performance new ceramic products are made of high–quality raw materials. The value of our ceramic products is greatly increased due to the composite technology and precise processing.
Our high efficiency machined ceramic parts, perfect service and good reputation roots in our professional machined ceramic technology, continuous innovation, great sincerity and our pursuit for sustainable development. We have a unique technnology called “mirror polishing” that has improved the brightness, color, smoothness of our ceramic parts.

Realated Products Show

White Zirconia Ceramic Plunger Pump , Triplex Piston Pump For Automobile IndustryWhite Zirconia Ceramic Plunger Pump , Triplex Piston Pump For Automobile Industry
White Zirconia Ceramic Plunger Pump , Triplex Piston Pump For Automobile Industry
White Zirconia Ceramic Plunger Pump , Triplex Piston Pump For Automobile Industry

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
