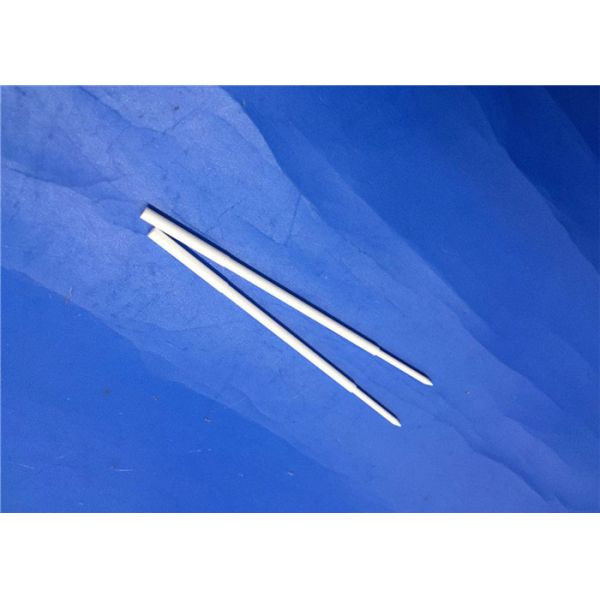

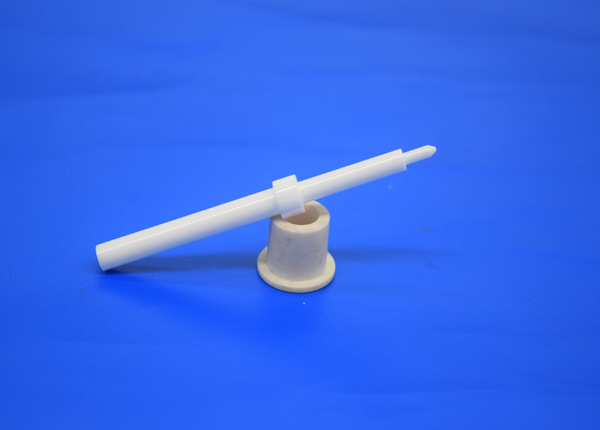

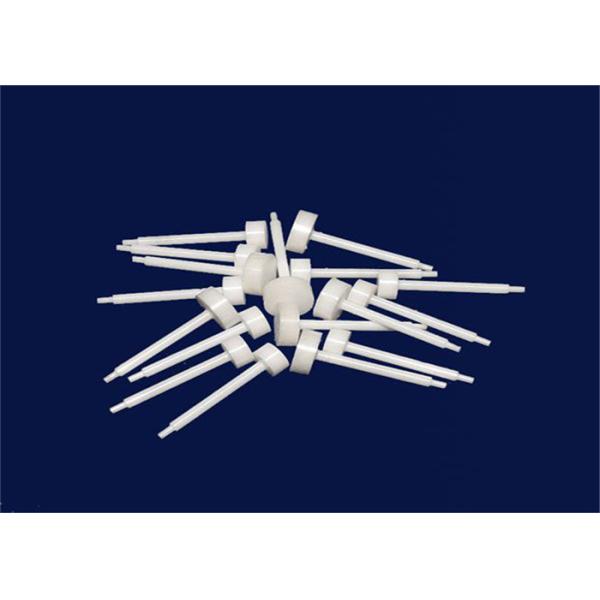

White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
Specifications
Brand Name :
Custom
Model Number :
Custom
Certification :
ISO, ROHS
Place of Origin :
Guangdong, China(mainland)
MOQ :
5 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000 pcs per month
Delivery Time :
10-315 working days after receiving deposit
Packaging Details :
Zirconia Ceramic Pin / Rod / Bar will be packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.
Material :
Zirconia / alumina ceramic
Highest application temperature :
2000 C, or customized
Density :
3.9g/cm3 / -6.10g/cm3
Color :
White, yellow, or customized
Size :
As your drawings
Precision :
+/-0.001mm
Tolerance :
+/- 0.005mm
Length range :
0.3mm-500mm
Description

Good Polished Zirocnia Ceramic Rod / Small Ceramic pin / Ceramic Roller Pin

NUT SIZE A B C D E F R1 R2
M6 4 16 7 12 5 7 2.5 1.5
M6 4 16 7 12 5 8.8 2.5 1.5
M8 7 15 7 16 6.6 11 3.3 MIN
M10 5 16 7 16 8.4 11 2 1.5
M10 5 16 7 16 8.4 14.35 2 1.5
M10 7 14.4 7 16 8.5 12.1 2 1.5
7月16日 10 16 9 18 9.5 13 2 1.5
M12 10 18 9 18 10.5 13 2 1.5
M12 10 18 9 18 10.5 14 2 1.5

White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin


Product Description

Advantages:

It features high hardness and wear resistance, low erosion levels, high temp. resistance, corrosion resistance, and bioinertness. Additionally, it can be highly polished, making it useful for a wide range of applications.

Properties Sheet:

Properties Units 95 Alumina 99 Alumina Zirconia
Density ɡ / cm3 3.65 3.92 5.95 - 6.0
Water Absorption ％ 0 0 0
Coefficient of Thermal Expansion 10-6 / K 7.9 8.5 10.5
Modulus of Elasticity Young’s Mod Gpa 280 340 210
Poisson’s Ratio / 0.21 0.22 0.3
HV Hardness Mpa 1400 1650 1300 - 1365
Flexural Strength @ Room Temperature Mpa 280 310 950
Flexural Strength @ 700℃ Mpa 220 230 210
Compressive Strength@Room Temperature Mpa 2000 2200 2000
Fracture Toughness Mpa * m½ 3.8 4.2 10
Heat Conductivity @ Room Temperature W / m * k 18 - 25 26 - 30 2.0 - 2.2
Electrical Resistivity @ Room Temperature Ω*mm2 / m ＞1015 ＞1016 ＞1015
Max Application Temperature ℃ 1500 1750 1050
Resistance to Acid Alkaline / High High High
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV / mm 16 22 /
Thermal Shock Resistance Δ T ( ℃ ) 220 180 - 200 282 - 350
Tensile Strength @ 25℃ Mpa 200 248 252


Detailed Images
White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin

White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin

Related Products
White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin


Packaging and Shipping

Zirconia Ceramic Pin / Rod / Bar will be packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.

Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin


Company information

Who Are We?

Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

What Do We Do?

We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

Our products with some certificates, such as , CE, TUV, etc..

Factory Show

White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin


Production Process Show

One-stop production, from the raw material to final product.

White Polished Zirocnia Ceramic Rod / Small Ceramic Roller Pin
