High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump
High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump
High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump
High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump
High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump
High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump
Specifications
Brand Name :
Customized
Model Number :
OEM
Certification :
ISO, CE, MSDS
Place of Origin :
Guangdong, China(mainland)
MOQ :
5 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal, D/P, D/A, MoneyGram
Supply Ability :
5000 pcs per month
Delivery Time :
15 - 45 working days after order confirmed
Packaging Details :
Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
Product name :
Zirconia Ceramic Injection Pump
Material :
Zirconia / alumina ceramic / Si3N4
Density :
3.0g/cm3 / >6.0g/cm3
Size and Shape :
Customized
Color :
White, or OEM
Tolerance :
OEM
Max working temperature :
1750℃ (Alumina), 1050℃ ( Zirconia)
HV hardness :
1400-1650 Mpa (Alumina), 1300-1365 Mpa (Zirconia)
Application :
Threaded fittings / small size cnc machine parts
Description

High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump



Product Description

Advantages of Zirconia Ceramic Injection Pump:

1. Refractory.
2. Long Service Life.
3. Good Polished Surface.

4. Environmental and Healthy.
5. Superior Mechanical Strength.
6. High Corrosion and Wear Resistance.
7. Good Insulation Performance Precision.
8. High Temperature and Pressure Resistance.
9. High Purity Zirconia and Alumina Ceramic Material.

  • High hardness, long service life, not easy to break and wear resistance.
  • Non-conductive, anti-static, ceramic material itself with the insulation of electricity and magnetism properties.
  • Corrosion resistance, high temperature resistance, can be applied to a specific environment, such as acid and alkali resistance.

The component of ceramic pump:

Plunger shaft rod Diameter (D:3-35mm)
Length (L:20-650mm)
Can be machining thread,polishing,connecting metal part
Sleeve pump body Inside Diameter as small as 0.3 mm
Longth as long as 400mm, as short as 0.5mm
Inside Diameter tolerance we could make as fine as 0.002mm
Outside Diameter tolerance as fine as 0.001mm
Wall thickness:0.5-15mm
Pump head Can be customized
Sealing rings Can be customized
Metal parts Can be customized

Properties Sheet:

Properties Units 95 Alumina 99 Alumina Zirconia
Density ɡ / cm3 3.65 3.92 5.95 - 6.0
Water Absorption ％ 0 0 0
Coefficient of Thermal Expansion 10-6 / K 7.9 8.5 10.5
Modulus of Elasticity Young’s Mod Gpa 280 340 210
Poisson’s Ratio / 0.21 0.22 0.3
HV Hardness Mpa 1400 1650 1300 - 1365
Flexural Strength @ Room Temperature Mpa 280 310 950
Flexural Strength @ 700℃ Mpa 220 230 210
Compressive Strength@Room Temperature Mpa 2000 2200 2000
Fracture Toughness Mpa * m½ 3.8 4.2 10
Heat Conductivity @ Room Temperature W / m * k 18 - 25 26 - 30 2.0 - 2.2
Electrical Resistivity @ Room Temperature Ω*mm2 / m ＞1015 ＞1016 ＞1015
Max Application Temperature ℃ 1500 1750 1050
Resistance to Acid Alkaline / High High High
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV / mm 16 22 /
Thermal Shock Resistance Δ T ( ℃ ) 220 180 - 200 282 - 350
Tensile Strength @ 25℃ Mpa 200 248 252


Detailed Images

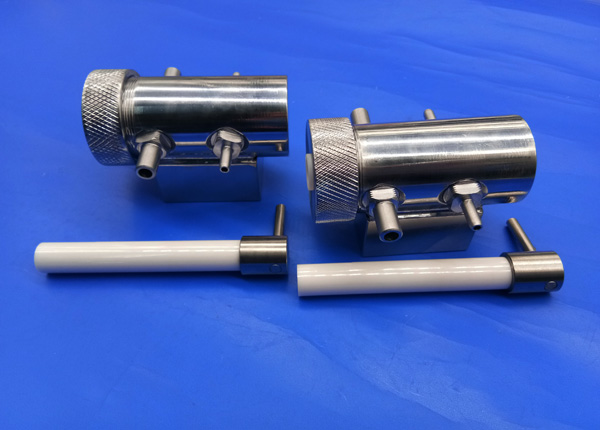

High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump

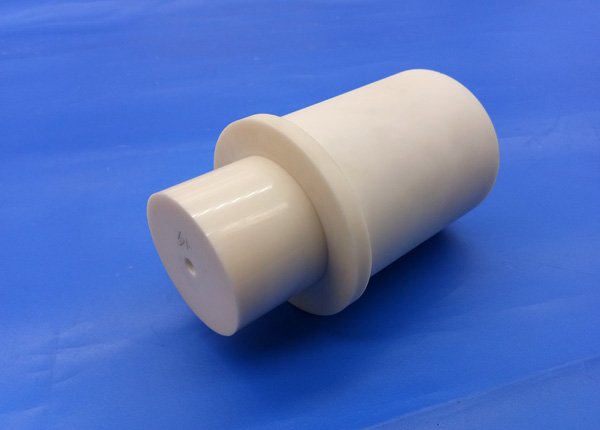

High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump

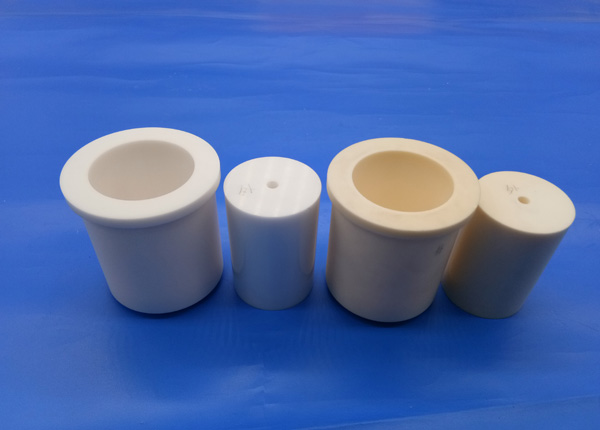

High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump

Related Products

Zirconia ceramic to metal car engine valve

High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump

High corrosion resistant zirconia ceramic crucible

High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump

View More Products


Packaging and Shipping

Alumina ceramic machining parts will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

Shipped by Express ( DHL, TNT, UPS, Fedex, EMS ), Air, or Sea transportation.

High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump
High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump


Company information

Who Are We?

Mingrui has professional OEM experience in manufacturing industrial ceramic parts for so many

years. We can make the products according to your drawings, custom the size, thickness and other parameters.

.

What Do We Do?

We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate, sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Oil & Gas, Energy & Power, Food & Medical, Agriculture, Aerospace,

even other High-end fields.

.

Our products with some certificates, such as , CE, TUV, etc..


Factory Show

High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump


Production Process Show

One-stop production, from the raw material ( powder ) to final products, control the quality strickly of every production link.

High Pressure Plunger Pumps Alumina / Zirconia Ceramic Injection Pump
