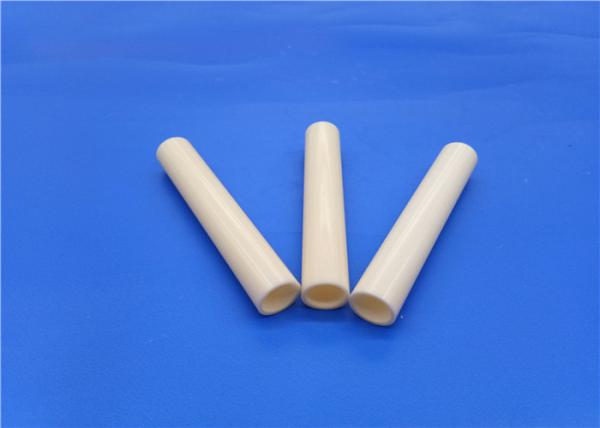

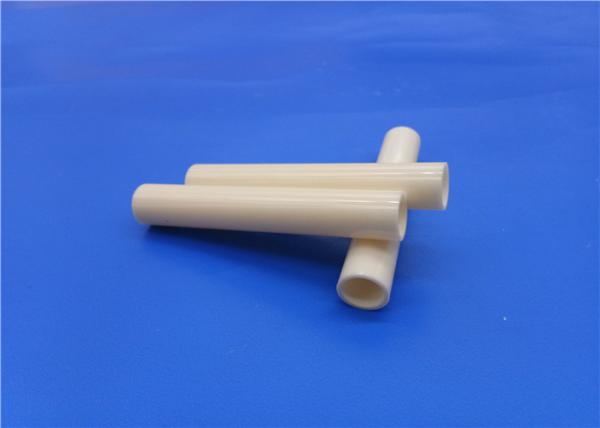

Good Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic Pipe
Good Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic Pipe
Good Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic Pipe
Good Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic Pipe
Good Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic Pipe
Good Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic Pipe
Specifications
Brand Name :
Mingrui
Model Number :
Customized reqirement
Certification :
ISO9001, , CE, UL, TUV
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
10000 pieces month
Delivery Time :
15-20 working days after the order confirmed
Packaging Details :
intertional carton box
Material :
95% 97% 99 % 99.5% 99.7% Al2O3 ceramic
Feature :
high wear/Temperature resistant
Color :
White, yellow,or customized
Keywords :
Alumina Ceramic Tubes
Precision :
+- 0.001mm
Diameter range :
0.5mm-150mm
Length range :
0.3mm-500mm
Shipping :
EMS,DHL,TNT,Fedex
Max application temperature :
1750℃ (Alumina), 1050℃ ( Zirconia)
Flexural Strength @ Room Temperature :
Mpa / 280 ( 95 Alumina), 310 ( 99 Alumina), 950 (Zirconia)
Description

Good Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic Tube /Pipe

About Alumina Tubes

Alumina Ceramic tubes have exceptional hardness and strength, resistance to chemical attack and wear, low dielectric loss and excellent electrical insulation properties. Additionally, Alumina can be metallized for brazing to other metals, highly polished, and comes in a variety of purities depending on it use. Due to these outstanding properties ceramic Alumina tubes are used in a wide range of industrial and advanced applications.

Features:

1. Use temperatures up to 1500°C

2. High density

3. High hardness

4. Low thermal conductivity

5. Chemical inertness

6. Resistance to molten metals

7. Good Wear resistance

8. High fracture toughness

9. Shapes and size can be produced according to your requirements

Performance:

Alumina Content Unit 90-96% > 99.5% 99%
General Application High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance Porous, Easily Degassed & Machinable
Porosity % 0-.05 0-.05 Variable
Density gm/cm3 3.55-3.75 3.75-3.95 2.4
Flexural Strength kpsi 40.0-50.0 50.0-55.0 -
Comprehensive Strength kpsi > 300.0 > 300.0 -
Tensile Strength kpsi 20.0-28.0 20.0-28.0 -
Linear Coefficient of Thermal Expansion (cm/cm/°C) 25-300°C 25-700°C 6.3X10-6 7.0X10-6 6.5X10-6 7.5X10-6 6.5X10-67.5X10-6
Dielecctric Constant at 25°C 1 MH 10 MH 9.2-9.8 9.0-9.6 9.5-9.9 9.3-9.7 -
Dielectric Strength Volt/mil 225 225 -
Te Value °F °C > 1832 > 1000 > 1832 > 1000 > 1832 > 1000
Thermal Conductivity at 25°C cal/sec/cm2/cm/°C .04-.06 .07-.08 -
Safe Use Temperature °F °C 3000-3100 1650-1700 3275 1800 3275 1800

Alumina Tube Applications

  • Furnace liner tubes
  • Protection tubes
  • Thermocouple protection tubes
  • RTD (resistive thermocouple devices)
  • Electrical stand off insulators
  • Gas laser tubes
  • High temperature electrical insulators
  • Abrasion resistant tube and elbow liners
Material Zirconia, Alumina, Silicon nitride and machinable ceramic
OD 5mm - 50mm
Length 10mm - 550mm
Surface Roughness Ra0.1
Torlerance +/- 0.01mm
Lead time 10 - 30days
Shipping Air Express (DHL/UPS/TNT/ FedEx)
Custom service As 100% the drawing or requirements

Common size

4*6.5*0.7*700 10*6*1250 15 X 11 X 1000MM
4*6.5*0.7*750 10*7*400 15 X 11 X 500MM
5X 0,7 X 1000MM (4 FUROS) 10*7*500MM 15 X 11 X 700MM
5*0.7*700MM(4 FUROS) 10*7*600 15*10*1100
6 X 4 X 700MM 10*7*650 15*10*1000
7*5*1000 10 *7 *700 17*13*1125
8*5*650 10*7*1030 18*12*1100
8*5*800mm 12*8*1000 20*10*1200
10*6*800 12*8*800 20*10*1200
10*6*1000 13*9*1000 …………..

Any other size are availabe, pls enquiry for the details.

Material Service:

Zirconia Ceramic: Mg-PSZ, Y-TZP, ZTA

Alumina Ceramic: 96%, 99%, 99.5% Al2O3

Silicon Nitride: Si3N4, RBSN, SRBSN, GPSN

Machinable Ceramic: Macor Ceramic

Machining Service:

Laser Cutting

CNC Machining

Cernerless Grinding and Inside Hole Honing

Surface Grinding and Polishing

Company Introduction:

Dongguan Ming Rui Ceramic Technology Co., LTD., a professional manufacturer of machined ceramic parts, has 10 senior engineers and lots of technicians. We produce strengthened structure zirconia ceramic bar, ceramic tube, ceramic shaft, ceramic plate, ceramic sleeve, ceramic valve, ceramic plunger and ceramic arm. The products are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military and some other high-end areas.
In cooperation with Tsinghua University, we've achieved great successes in particular requirements. With our professional knowledge and business experience in machined ceramic parts, low-budget and high-performance new ceramic products are made of high–quality raw materials. The value of our ceramic products is greatly increased due to the composite technology and precise processing.
Our high efficiency machined ceramic parts, perfect service and good reputation roots in our professional machined ceramic technology, continuous innovation, great sincerity and our pursuit for sustainable development. We have a unique technnology called “mirror polishing” that has improved the brightness, color, smoothness of our ceramic parts.

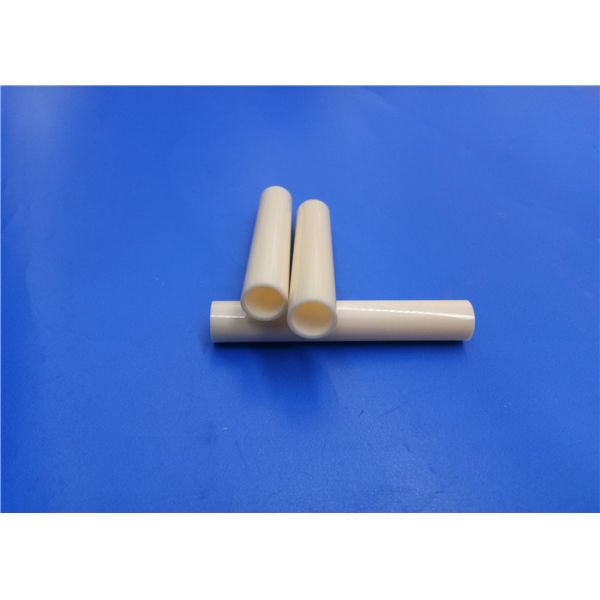

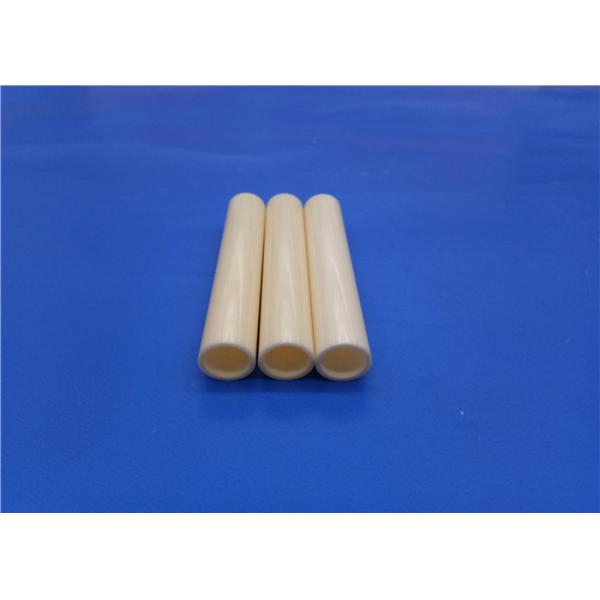

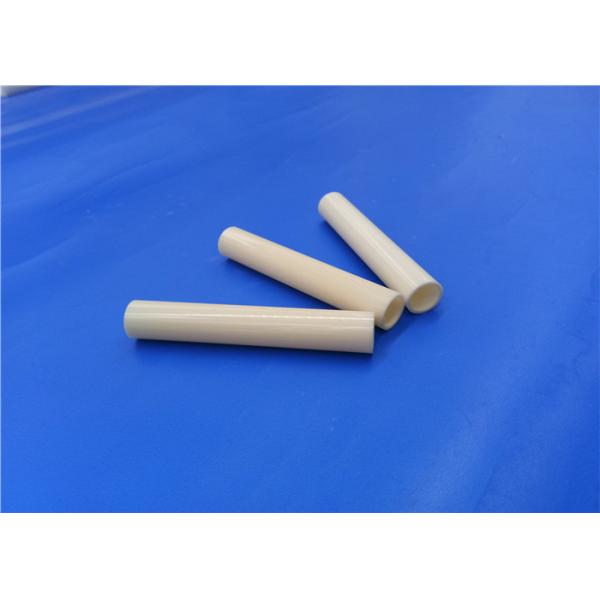

More photos :

Good Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic Pipe

Good Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic PipeGood Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic Pipe

Good Polishing Alumina Ceramic Tube 99% / Insulation Alumina Ceramic Pipe

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
