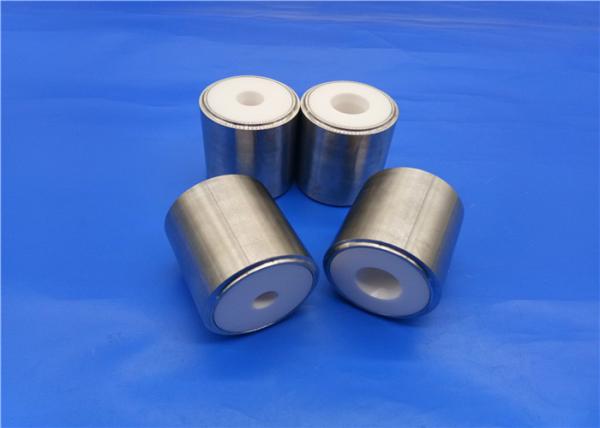

Refractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal Parts
Refractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal Parts
Refractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal Parts
Refractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal Parts
Refractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal Parts
Refractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal Parts
Specifications
Brand Name :
Mingrui
Model Number :
Customized requirement
Certification :
ISO9001-2015.,UL,ROAH
Place of Origin :
China
MOQ :
10 pieces
Price :
Negotiations
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
10000 pieces month
Delivery Time :
10-30 working days after the order confirmed
Packaging Details :
intertional carton box
Sample order :
acceptable
Color :
ivory / white
Content s :
alumina ceramic and zirconia ceramic
Testing Way :
Strict Quality test one by one
Usage :
Food grade ceramic filling valves
Density :
5.90 - 6.10 G/cm3
Feature :
High Wear-resistance
Use temperature: :
1700C
Produce time :
Zirconia Ceramic Piston Sleeve
Shape :
Customized
Description

Refractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal Parts

Ceramic shaft and bush are featured by insulation, antimagnetic, static electricity-free, lubricity and resistant to high temperature, high pressure,chemical attack and oxidation. It is extremely popular in many areas, such as computer, telecommunication, power supply, transducer, instrumentation, industrial equipment, electric appliance and electric motor. And a lot of practical applications prove that our ceramic bearing has reached a state of high standard and quality.

Product Name

Refractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal Parts
Material
Zirconia ceramic
OD
0.3mm -50mm
Length
0.5mm - 500mm
Surface Roughness
Ra0.05
Torlerance
+/- 0.001mm
Lead time
10 - 30days
Shipping
Air Express (DHL/UPS/TNT/ FedEx)

Properties Sheet of zirconia and alumina :

Properties Unit Alumina Zirconia
96%Al2O3 99%Al2O3 99.5%Al2O3 99.8%Al2O3 99.9%Al2O3 3Y-TZP
Colour - White White Ivory Ivory Translucent white/black
Bulk density g/cc 3.78 3.88 3.93 3.93 3.98 6.03
Water Absorption % 0 0 0 0 0 0
Grain size μm 5-10 2-5 2-5 2-5 2-4 0.4
Bending strength MPa 380 350 360 380 300 1000
KIC MPa.m1/2 3~4 4 3~4 3~4 3~4 5~8
Vickers Hardness GPa 13 14 14.5 14.5 15 13
Young's Modulus of Elasticity GPa 360 370 370 380 390 200
Thermal Conductivity W/m° K 24 28 32 32 34 2
Coefficient of Linear Expansion 10-6/°C 6.7 7.2 7.2 7.2 7.2 10.5
Dielectric Constant (1MHz) - 9.1 9.5 9.6 9.6 9.9 33
Dielectric Loss Angle (1MHz) - 0.0002 0.0001 0.0001 0.0001 0.0001 0.002
Dielectric Strength V/m 15×106 15×106 15×106 15×106 15×106 11×106
Volume Resistivity Ohm.cm >1014 >1014 >1014 >1014 >1014 1013
(RT)

Processing Methods
Refractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal Parts

Packaging & Delivery

Packaging Details: 1. Carton with Bubble bag or foam.
2. Wooden carton
3. As per customer's requirements.
Delivery Details: 1. 3-25 days for sample
2. 25-40 days for mass products.
Shipment Terms: 1. Small order: By express, DHL/ UPS/ Fedex/ EMS etc.
2. Large order: By sea or By air

More related product

Refractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal PartsRefractory Zirconia Ceramic Piston Sleeve / Insulator Valve With Metal Parts

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
