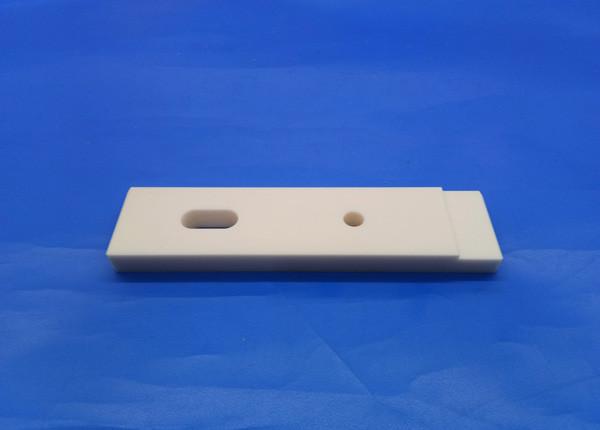

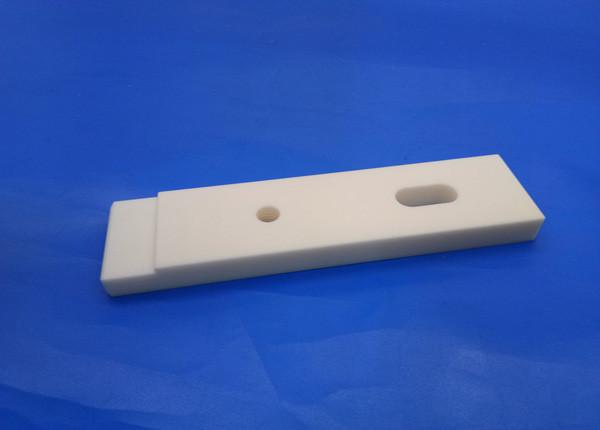

Custom 99.5% Alumina Ceramic Guide Plates For High Temperature Application

Product Description

Advantages of ceramic setter plate al2o3 97%:

1. Refractory.

2. Self Lubricating

3. Long Service Life.

4. Good Polished Surface.

5. Environmental and Healthy.

6. Superior Mechanical Strength.

7. High Corrosion and Wear Resistance.

8. Good Insulation Performance Precision.

9. High Temperature and Pressure Resistance.

10. High Purity Zirconia and Alumina Ceramic Material.

Due to these outstanding properties, Ceramic Products are used in a wide range of industrial and advanced appications.

And a lot of practical applications prove that our ceramic products has reached a state of high standard and quality.

Alumina (Al2O3) has a wide application due to its versatility and low material cost. Alumina possesses a high melting point, strong hardness, and good chemical stability, making it a good material to withstand high temperature and chemical corrosion. Alumina Plates and Disks are available in different dimensions and thicknesses. Call for custom shapes and sizes.

Properties Sheet:

Application:
Alumina ceramic is mainly used in large power equipment, IC MOS tube, IGBT chip heat conducting insulation, high frequency power supply, communication, mechanical equipment, strong current, high voltage, high temperature and other thermal heat insulation parts need products.
Physical properties: high thermal conductivity, high voltage insulation resistance, high temperature resistant, abrasion resistant, high strength.

Machining precision data: (reference data,the actual data is subject to the actual conditions)
(1)Shaft parts: Radial dimensions can reach 0.0015 mm; roundness 0.001 mm, concentricity 0.0025 mm, roughness 0.01
(2)Hole type parts:Machining minimum aperture of 0.3 mm, depth can reach 3 mm;The diameter of 1 mm can be radial 0.002 mm;Roughness 0.02-0.04;
(3)Plane processing:The tolerance can reach 0.002 mm, and the plane is 0.0015mm.
(4)Ceramic thread processing:the internal thread M2 can be grinds, thread precision GB-7h; The outer thread size is not limited, the precision GB-6g;

Important note:
In order to give you an accurate quotation and determine the delivery time.
1: Please provide the material type, exact size and the machining tolerance.
2: Quantity of order.
3: Please provide detailed drawings of the products, or we can make drawings according to your requirements, and we need your final confirmation before manufacturing.

Detailed Images

Related Products

White color 99% alumina porous ceramic guide plate al2o3 yarn guide plates

Custom Alumina Ceramic Perforated Suction Plate Porous Sucking Plates

View More Products

Packaging and Shipping

Al2o3 Ceramic Heating Plate will be wraped in paper first individually, then packed in bubble bags, finally put in standard export carton packing, or OEM packing..

Shipped by Express ( DHL, TNT, UPS, Fedex, EMS ), Air, or Sea transportation.




Company information

Who Are We?

Mingrui has years of professional OEM experience in manufacturing industrial ceramic products. And very advanced technologies in the production of zirconia and alumina ceramic rod, ceramic tube, ceramic plate, ceramic ring, ceramic shaft, ceramic plunger, ceramic valve, ceramic sleeve, ceramic nozzle, and semiconductor ceramics, etc. They are applicable to Electrical, Appliance, Mining, Oil & Gas, Energy & Power, Food & Medical, Chemistry, Agriculture, Aerospace, even other high-end fields.

We, an advanced technical team with 10 senior engineers,more than 80 technicians and 100 equipment machines, taking one-stop production, from the raw material (powder) to final products, control the quality of every production link well.

In cooperation with Tsinghua University, we've achieved great successes in particular requirements. With our professional knowledge and business experience in machined ceramic parts, low-budget and high-performance new ceramic products are made of high–quality raw materials. The value of our ceramic products is greatly increased due to the composite technology and precise processing.

Our high efficiency machined ceramic parts, perfect service and good reputation roots in our professional machined ceramic technology, continuous innovation, great sincerity and our pursuit for sustainable development. We have a unique technnology called "mirror polishing" that has improved the brightness, color, smoothness of our ceramic parts. Your advice and visit is our best welcome!

What Do We Do?

We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate, sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Mining, Oil & Gas, Energy & Power, Food & Medical, Agriculture, Aerospace,

even other High-end fields.

Our products with some certificates, such as , CE, TUV, etc..


Factory Show




Production Process Show

One-stop production, from the raw material ( powder ) to final products, control the quality strickly of every production link.
