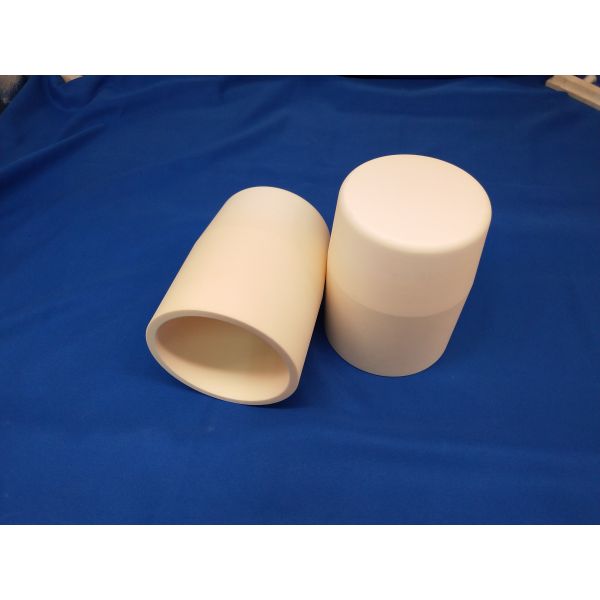

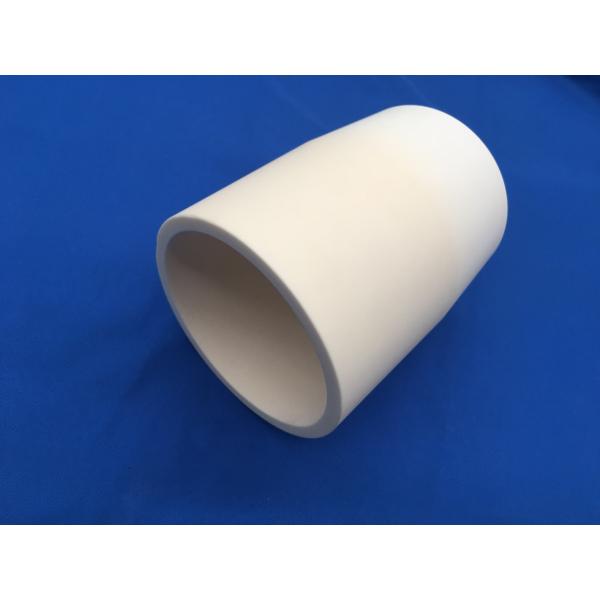

Cylinderical Corundum Crucible , Alumina Ceramic Crucible Anti - Corrosion Resistance
Cylinderical Corundum Crucible , Alumina Ceramic Crucible Anti - Corrosion Resistance
Cylinderical Corundum Crucible , Alumina Ceramic Crucible Anti - Corrosion Resistance
Cylinderical Corundum Crucible , Alumina Ceramic Crucible Anti - Corrosion Resistance
Cylinderical Corundum Crucible , Alumina Ceramic Crucible Anti - Corrosion Resistance
Cylinderical Corundum Crucible , Alumina Ceramic Crucible Anti - Corrosion Resistance
Cylinderical Corundum Crucible , Alumina Ceramic Crucible Anti - Corrosion Resistance
Cylinderical Corundum Crucible , Alumina Ceramic Crucible Anti - Corrosion Resistance
Specifications
Brand Name :
Mingrui
Model Number :
XF-1345
Certification :
ISO9001-2015,
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
10000 pieces month
Delivery Time :
15-25 working days after the order confirmed
Packaging Details :
intertional carton box
Name :
Corundum Crucible
Material :
high purity alumina ceramic
Type :
ceramic crucible type
Width :
50mm
Height :
150mm
Usage :
lab for chemical
Capacity :
270ml
Size :
customized by customer
max temperature :
2000 ℃
Shape :
cylinderical
Description

Anti - Corrosion Resistance Corundum Crucible Alumina Ceramic Crucible

Alumina Ceramic Crucible Features:

1. Use temperatures up to 2000°C

2. High density High purity

3. Anti corrosion

4. High temperature Resistance

5. Chemical inertness

6. Resistance to molten metals

7. Good Wear resistance

8. High fracture toughness

9. Shapes and size can be produced according to your requirements

Product Name
 Anti - Corrosion Resistance Corundum Crucible Alumina Ceramic Crucible
Material
Alumina ceramic
OD
0.3mm - 200 mm
height
mm - 500mm
Surface Roughness
 Smooth
Torlerance
 according to customer
Lead time
10 - 30days
Shipping
(DHL/UPS/TNT/ FedEx)

Properties Sheet of zirconia and alumina :

Properties Unit Alumina Zirconia
96%Al2O3 99%Al2O3 99.5%Al2O3 99.8%Al2O3 99.9%Al2O3 3Y-TZP
Colour - White White Ivory Ivory Translucent white/black
Bulk density g/cc 3.78 3.88 3.93 3.93 3.98 6.03
Water Absorption % 0 0 0 0 0 0
Grain size μm 5-10 2-5 2-5 2-5 2-4 0.4
Bending strength MPa 380 350 360 380 300 1000
KIC MPa.m1/2 3~4 4 3~4 3~4 3~4 5~8
Vickers Hardness GPa 13 14 14.5 14.5 15 13
Young's Modulus of Elasticity GPa 360 370 370 380 390 200
Thermal Conductivity W/m° K 24 28 32 32 34 2
Coefficient of Linear Expansion 10-6/°C 6.7 7.2 7.2 7.2 7.2 10.5
Dielectric Constant (1MHz) - 9.1 9.5 9.6 9.6 9.9 33
Dielectric Loss Angle (1MHz) - 0.0002 0.0001 0.0001 0.0001 0.0001 0.002
Dielectric Strength V/m 15×106 15×106 15×106 15×106 15×106 11×106
Volume Resistivity Ohm.cm >1014 >1014 >1014 >1014 >1014 1013
(RT)

Packaging & Delivery

Packaging Details: 1. Carton with Bubble bag or foam.
2. Wooden carton
3. As per customer's requirements.
Delivery Details: 1. 3-25 days for sample
2. 25-40 days for mass products.
Shipment Terms: 1. Small order: By express, DHL/ UPS/ Fedex/ EMS etc.
2. Large order: By sea or By air

Quality assurance:

1. High heat resistance : Alumina ceramic has excellent thermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
2. Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.
3. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
