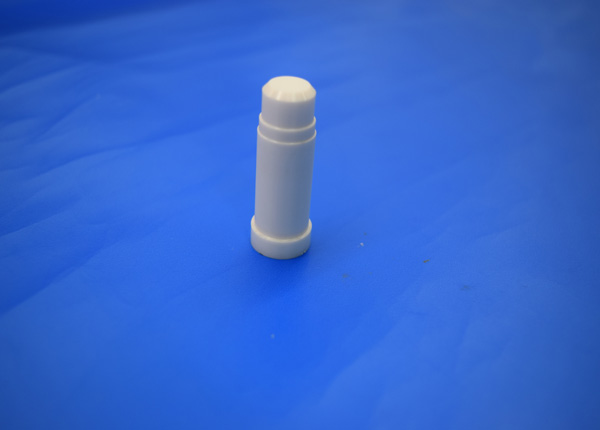

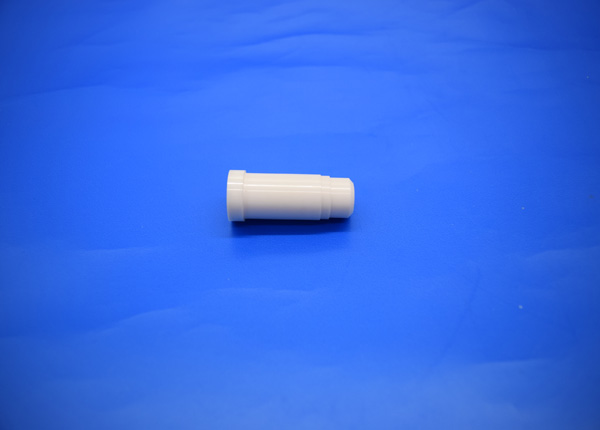

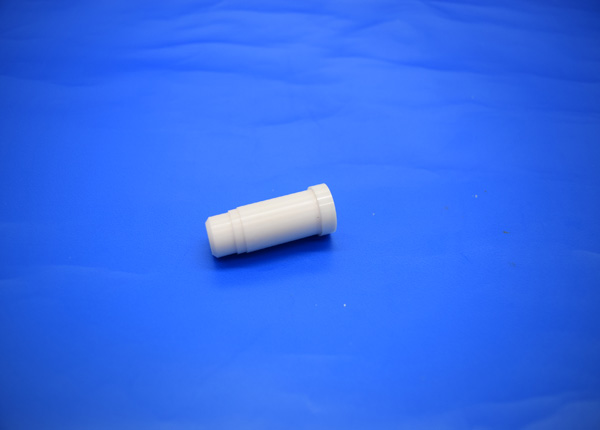

Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
Specifications
Brand Name :
Custom
Model Number :
Custom
Certification :
ISO, ROHS, TUV
Place of Origin :
Guangdong, China(mainland)
MOQ :
5 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000 pcs per month
Delivery Time :
10-30 working days after receiving deposit
Packaging Details :
Packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.
Product name :
Zirconia Ceramic Pin
Material :
Zirconia / alumina ceramic
Dielectric Strength :
16KV / mm ( 95 alumina ), 22KV / mm ( 99 alumina )
Dielectric Constant :
9.5 ( 95 alumina ), 9.8 ( 99 alumina ), 26 ( zirconia )
Max Application Temperature :
1500℃ ( 95 alumina ), 1750℃ ( 99 alumina ), 1050℃ ( zirconia )
Compressive Strength@Room Temperature :
2000 - 2200 Mpa
Density :
3.9g/cm3 / >6.0g/cm3, or customized
Heat Conductivity @ Room Temperature :
18 - 25 W / m * k ( 95 alumina ), 26 - 30 W / m * k ( 99 alumina ), 2.0 - 2.2 W / m * k ( zirconia )
Size and Color :
Customized
Application :
Zirconia ceramic Pin for welding insulation
Description

Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation


Product Description


Advantages:

1. Refractory.
2. Isostatic Pressed.
3. Long Service Life.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.

They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal parts. They give a longer life to the sealed packing material.

Properties Sheet:

PropertiesUnits95 Alumina99 AluminaZirconia
Densityɡ / cm33.653.925.95 - 6.0
Water Absorption％000
Coefficient of Thermal Expansion10-6 / K7.98.510.5
Modulus of Elasticity Young’s ModGpa280340210
Poisson’s Ratio/0.210.220.3
HV HardnessMpa140016501300 - 1365
Flexural Strength @ Room TemperatureMpa280310950
Flexural Strength @ 700℃Mpa220230210
Compressive Strength@Room TemperatureMpa200022002000
Fracture ToughnessMpa * m½3.84.210
Heat Conductivity @ Room TemperatureW / m * k18 - 2526 - 302.0 - 2.2
Electrical Resistivity @ Room TemperatureΩ*mm2 / m＞1015＞1016＞1015
Max Application Temperature℃150017501050
Resistance to Acid Alkaline/HighHighHigh
Dielectric Constant/9.59.826
Dielectric StrengthKV / mm1622/
Thermal Shock ResistanceΔ T ( ℃ )220180 - 200282 - 350
Tensile Strength @ 25℃Mpa200248252


Detailed Images

Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding InsulationOrientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding InsulationOrientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation

Related Products

Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding InsulationOrientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding InsulationOrientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation


Packaging and Shipping

Zirconia ceramic Pin will be packed in a bubble bag individually, then separated by a foam, finally into outer carton, or OEM packing.

Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation


Company information

Who Are We?

Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.

What Do We Do?

We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve, bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.

All of our products with certificates, such as , CE, TUV, etc..


Factory Show

Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation


Production Process Show

One-stop production, from the raw material to final product.

Orientation Welding Position Zirconia Ceramic Pin Heat Resistance For Welding Insulation
