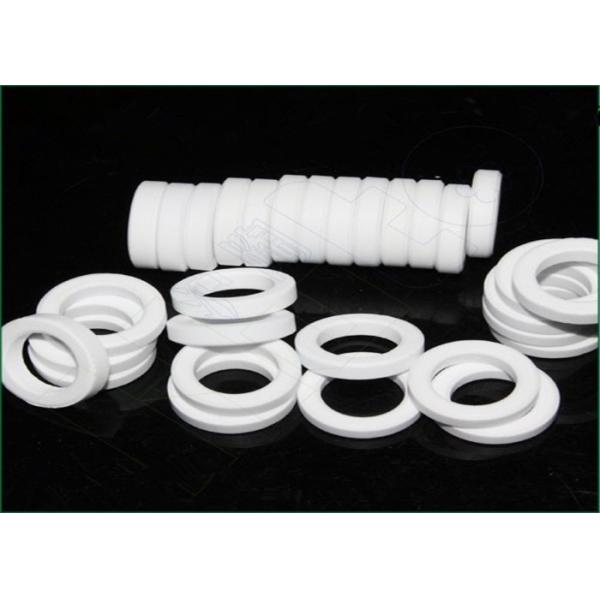

95% Alo3 Alumina Ceramic Seal Rings High Temperature Resistance
95% Alo3 Alumina Ceramic Seal Rings High Temperature Resistance
95% Alo3 Alumina Ceramic Seal Rings High Temperature Resistance
95% Alo3 Alumina Ceramic Seal Rings High Temperature Resistance
95% Alo3 Alumina Ceramic Seal Rings High Temperature Resistance
95% Alo3 Alumina Ceramic Seal Rings High Temperature Resistance
Specifications
Brand Name :
Mingrui
Model Number :
CAL-SI
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
8000 pieces month
Delivery Time :
15 days working days after the order confirmed
Packaging Details :
high temperature resistance 95 alo3 alumina ceramic sealing ring are packed by standrad carton or pack according to your requirements
Type :
Electrothermal Ceramics, Insulating Ceramics
Material :
Alumina
Working temperature :
1400-1650°C
Surface :
Glazing or polishing
Compressive Strength :
2000 - 2500 Mpa
Keywords :
95 alo3 alumina ceramic sealing ring
Standard or Nonstandard :
Nonstandard
Description



High Temperature Resistance 95% Alo3 Alumina Ceramic Sealing Ring

Material introduction:

Aluminium Oxide, Al2O3 is the most widely applied and cost effective technical ceramic material. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. The maximum working temperature is up to 1700 °C with relatively high thermal conductivity. It is also an electrically insulating material with a high electrical resistivity. The good corrosion resistance makes it insoluble in water and slightly soluble in strong acid and alkaline solution.


Ceramic features

1) High hardness.
2) High heat resistance: alumina ceramic has excellentthermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
3) Good wear resistance: alumina ceramic is the material of choice for alumina wear parts.
4) High electrical resistivity: alumina is an electrically insulating material.
5) High corrosion resistance: it is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.

Applications:
1) High power equipments.
2) IC MOS pipe
3) High frequency prower source, communication, mechanical equipment.
4) Heavy current, heavy voltage, high temperature, thermal conductive insulating parts.

Ceramic materials of ceramic eyelets
· 95%--99.99% Alumina (Al2O3) · Silicon Carbide · Silicon Nitride · TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)...

Al 2O 3		 ZrO2/Y2O3 ZrO2/MgO MgO SiC Si3N4 Reaction sintered Si3N4 Hot pressed ALN
Physical properties
Density (g/cm3) 3,9 5,9 5,75 3,58 3,2 3,27 3,29 3,26
Molecular weight (g/mole) 102 - - 40,4 40,1 140 140 41
Maximum service temperature air (°C) 1700- 1800 1500 1000 2200 1500 1200- 1500 1100- 1600 1000- 1800
Mechanical properties
Hardness (Mohs) 9 - - 5,5 9 - - 7
Modulus of elasticity (GPa) 300-400 200 200 250-300 420 170-220 280-310 318
Poisson's ratio 0,25 - - 0,18 0,14 0,25-0,26 0,27 0,25
Fracture toughness (MPa.m1/2) 2-3 7-13 6-10 - 2,5-3,5 3,5-5 6,1 4,5
Electrical properties
Dielectric constant 9-10 - - 9-10 - 10 10 9,2
Electrical resistivity at 20°C (Ohm.cm) >10 14 10 13-10 14 >10 10 - 10 2-10 6 >10 7 10 12- 10 15 >10 14
Dielectric strength (kV/mm) 10-20 9 2-10 - - - - 15
Thermal properties
Specific heat (J/K/kg) 900 400-500 420 870-880 750 690 680-800 800
Thermal conductivity (W/m/K) at 20°C 26-35 2,2-3,2 1,5-2,5 40-50 63-155 9-30 15-43 180
Coefficient of thermal expansion ( 10-6) from 20 to 1000°C 8-9 10-11 5-16 10-13 4-5 3 3,3 4,4-5,3
Melting point (°C) 2050 2590 - 2800 2500 1900 1900 2200


95% Alo3 Alumina Ceramic Seal Rings High Temperature Resistance
95% Alo3 Alumina Ceramic Seal Rings High Temperature Resistance

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
