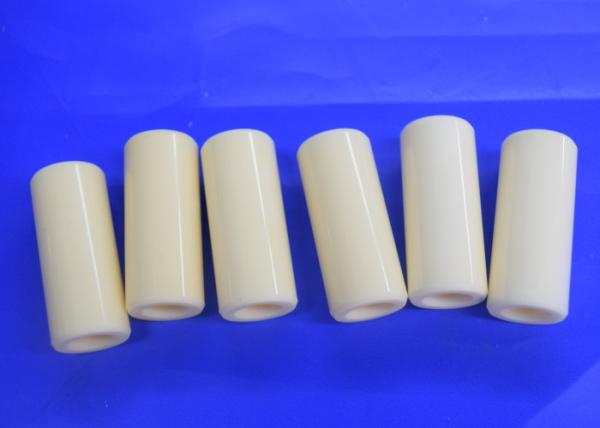

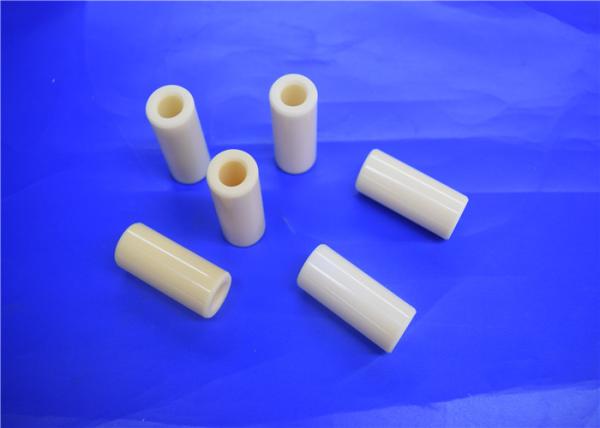

Pressure Washer Pump Repair Kits Ceramic Plunger Sleeve 15mm 20mm 24mm
Pressure Washer Pump Repair Kits Ceramic Plunger Sleeve 15mm 20mm 24mm
Pressure Washer Pump Repair Kits Ceramic Plunger Sleeve 15mm 20mm 24mm
Pressure Washer Pump Repair Kits Ceramic Plunger Sleeve 15mm 20mm 24mm
Pressure Washer Pump Repair Kits Ceramic Plunger Sleeve 15mm 20mm 24mm
Pressure Washer Pump Repair Kits Ceramic Plunger Sleeve 15mm 20mm 24mm
Specifications
Brand Name :
Mr
Model Number :
XF-503
Certification :
ISO9001, ,etc
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.9 - $10.5 per piece
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 pcs per week
Delivery Time :
3-30 working days
Packaging Details :
1 piece /foam bag, tens of tubes packed in a carton box with sponge paper.
Name :
Ceramic plunger sleeve
Material :
99% alumina ceramic
Density :
3.9g/cm3
hardness :
HRA 89
Application :
For internpump repair kits
Size range :
13mm 18mm 20mm or custom
Forming way :
Isostatic press
Color :
White , ivory or custom
Sample :
Available
Description

Pressure Washer Pump Repair Kits Ceramic Plunger Sleeve 15mm 20mm 24mm

Tag key words : ceramic Plunger Sleeve Kits / Ceramic Piston Sleeve

General Pump Ceramic Plunger Sleeve Kit | Interpump Piston Sleeve Repair

General Pump, sometimes known as Interpump, produces one of the highest quality pressure washer pumps in the industry. All pumps will require service, maintenance or repair at sometime during their life, due to being under constant strain and motion. Abuse can also cause downtime and costly repair, and running in bypass for extended periods of time (pressure washer is running, but no water flow through the nozzle) can cause high temperatures within the pump head, resulting in damage to water seals and ceramic piston sleeves.

If a ceramic plunger sleeve is broken or cracked, it can allow water into the pump body, mixing with the pump oil, which reduces the lubrication of the pump, causing possible pump failure. Also, if broken, the shards of ceramic from the piston sleeve can flow through the water system, damaging other pressure washer components such as the unloader valve.

Do not find similar ceramic products on this page?
For more detail of ceramic products like price,shipping,samples...
Quick Free Quote . Our official E-mail: admin@cerampart.com(Mr admin).thanks

Use this 8.703-190.0 20mm ceramic plunger on General Pump T and TS Series pump models shown below. A cracked or broken ceramic piston can allow water into the pump crankcase, reducing lubrication and possible pump damage. A broken ceramic plunger can also sometimes be seen by a slight water leak between the pump body and pump manifold. Failure to replace a broken ceramic piston can result in further damage to pump, pump seals, unloader valves, and other pressure washer parts.

General Pump Part 47040409

General Pumps: T1011, T9211, TS1021, TS1011, TS1041, TS1511, TS1531, TS2011, TS2021, TS1331-B

REPLACES PART NUMBERS: 104803, 107892, 15-060009182, 87031900, 87037510, 8.703-151.0

Pressure Washer Pump Repair Kits Ceramic Plunger Sleeve 15mm 20mm 24mm

General Pump Ceramic Piston Performance:

Alumina Content Unit 80-85% 90-96% > 99.5% 99%
General Application Lower Cost Electrical & Mechanical High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance Porous, Easily Degassed & Machinable
Porosity % 0-.05 0-.05 0-.05 Variable
Density gm/cm3 3.45-3.50 3.55-3.75 3.75-3.95 2.4
Flexural Strength kpsi 35.0-40.0 40.0-50.0 50.0-55.0 -
Comprehensive Strength kpsi 260.0 > 300.0 > 300.0 -
Tensile Strength kpsi 15.0-20.0 20.0-28.0 20.0-28.0 -
Linear Coefficient of Thermal Expansion (cm/cm/°C) 25-300°C 25-700°C 5.9X10-6 6.5X10-6 6.3X10-6 7.0X10-6 6.5X10-6 7.5X10-6 6.5X10-67.5X10-6
Dielecctric Constant at 25°C 1 MH 10 MH 8.5-8.9 8.4-8.8 9.2-9.8 9.0-9.6 9.5-9.9 9.3-9.7 -
Dielectric Strength Volt/mil 200 225 225 -
Te Value °F °C 1472 800 > 1832 > 1000 > 1832 > 1000 > 1832 > 1000
Thermal Conductivity at 25°C cal/sec/cm2/cm/°C .03-.04 .04-.06 .07-.08 -
Safe Use Temperature °F °C 2550 1400 3000-3100 1650-1700 3275 1800

3275 1800

Other related products:

Except alumina ceramic piston pump, we also supply zirconia ceramic tube, rod for normal use, also have ceramic substrate, ceramic plate, ceramic bush, ceramic sleeve, valves, ceramic shafts, nozzles, etc.Welcome you to contact us for more information!

Pressure Washer Pump Repair Kits Ceramic Plunger Sleeve 15mm 20mm 24mm

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
