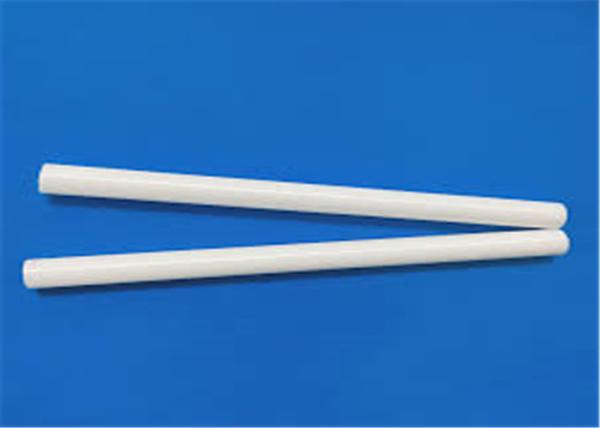

Customized Abrasion Resistant Zirconia Ceramic Rod / Bar / D10 x L100mm
Customized Abrasion Resistant Zirconia Ceramic Rod / Bar / D10 x L100mm
Customized Abrasion Resistant Zirconia Ceramic Rod / Bar / D10 x L100mm
Customized Abrasion Resistant Zirconia Ceramic Rod / Bar / D10 x L100mm
Customized Abrasion Resistant Zirconia Ceramic Rod / Bar / D10 x L100mm
Customized Abrasion Resistant Zirconia Ceramic Rod / Bar / D10 x L100mm
Specifications
Brand Name :
Mingrui
Model Number :
Customized requirement
Certification :
ISO9001-2015.,UL,ROAH
Place of Origin :
China
MOQ :
5 pieces
Price :
USD1-5/pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
5000 pieces month
Delivery Time :
1-3weeks
Packaging Details :
Zirconia Rod Package detail sizes:wooden case with foam
Testing Way :
Strict Quality test one by one
Finish :
polished
Package :
Wooden Box
Product name :
Zirconia Ceramic Rod
Fracture Toughness :
7-10 MPa.m(1/2)
Flexural Strength :
1150 MPa
Color :
White
Vicker's Hardness :
12 GPa
Certificate :
ISO9001:2008//ROHS
Tolerance :
Best to be 0.005mm
Secondary process :
Fine grinding
Description

Customized Abrasion Resistant Zirconia Ceramic Rod / Bar / D10xL100mm

Product Description

- Product Name: Customized Abrasion Resistant / Zirconia Ceramic Rod / Bar / D10xL100mm
- Material: Yttria Stabilized Zirconia
- Typical Characteristics:

1. Excellent Mechnical Strength
2. High Impact Resistance

3. Good Thermal Shock Resistance

4. Very Low Thermal Conductivity

5. Low Expansion Coefficient
- Typical Applications:

1. Pump Components

2. Cutting Blades

3. Grinding&Milling Media

4. Valve Components

5. Bearings

6. Automotive Catalytic Systems

7. Wear linings

8. Oxygen sensors

Material Properties
Properties / Material Zirconia
Density (g/cm3) 6.00
Vicker's Hardness(GPa) 12
Modulus Of Elasticity(@25°C, GPa) 205
Flexural Strength (MPa) 2200
Compressive Strength (MPa) 1150
Thermal Expansion Coefficient (10-6/K) 9.6
Thermal Conductivity (W/mk) 3

Items Unit

95%

alumina

99.2%

alumina

99.5%

alumina

ZrO2

(Y-TZP)

 SiC TiO2 Si3N4
Color White Ivory Ivory White Black Black Gray
Density g/cm3 ≥3.60 ≥3.80 ≥3.85 ≥6.0 ≥3.21 ≥4.00 3.22
Water absorption % 0 0 0 0 0 0 0
Hardness HV 1500 1700 1700 1300 2500 800
Flexural strength Mpa ≥320 ≥338 ≥379 1200 550 158 650
Compressive strength Mpa ≥2000 ≥2240 ≥2240 ≥1990 ≥3306 --- ≥2200
Max. service temperature
(Non-loading)		 ℃ 1550 1600 1675 850 1600 1000 1200
Thermal conductivity W/(m.K) 24 29 30 2.5 150 5 25
Volume
resistivity		 Ω.cm > 10^14 > 10^14 > 10^14 > 10^11 10^5 10^12 > 10^14
Insulation strength kV/mm 18 18 19 17 --- 3.93 16
Dielectric constant - 9.5 9.5 9.7 29 --- 95 8.2

We can supply the products according to customer's drawings, samples and performance requirement.

precison ceramic, precision ziconia ceramic, zirconia, ceramic part, ceramic structure, zirconia ceramic shaft sleeve pipe roller tube, zirconia ceramic shaft piston and gear, Zirconia ceramic rod, machinable ceramic rod for industry

Buying Guides

In your inquiry, please provide as detailed imformation as you can for our evaluation.

1. Material:

If you are not sure what exact material you need, please tell us your requests on material performance and your specific application, according to which we will offer you the most suitable material.

2. Drawing:

Please make sure the drawing is clear with all of your technical requests so that we can quote asap.

3. Quantity:

The last but not the least, don't forget to tell us the quantity you need to get our best offer.

Processing Methods
Customized Abrasion Resistant Zirconia Ceramic Rod / Bar / D10 x L100mm

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
