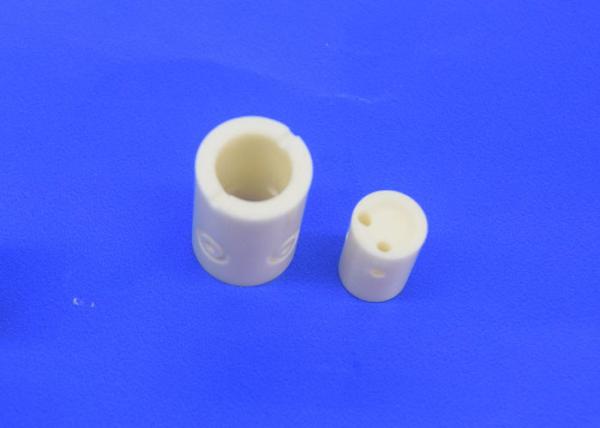

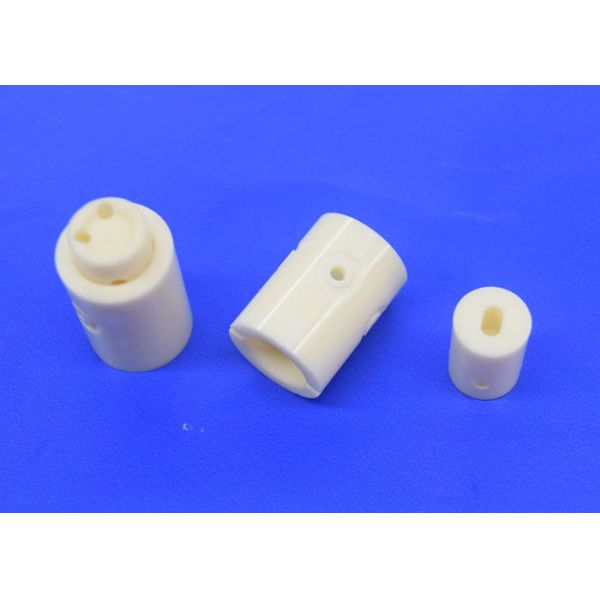

Wear Resistant Pump Ceramic Piston / Ceramic Sleeve Piston with Low Friction
Wear Resistant Pump Ceramic Piston / Ceramic Sleeve Piston with Low Friction
Specifications
Brand Name :
Mr
Model Number :
XF-465
Certification :
ISO9001, ,etc
Place of Origin :
China
MOQ :
10 pcs
Price :
$1-10.5 pcs
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 pcs per week
Delivery Time :
3-30 working days
Packaging Details :
1 piece /foam bag, tens of tubes packed in a carton box with sponge paper.
Item :
Pump Ceramic Piston
Type :
Ceramic Piston
Feature :
Wear Resistant
Density :
3.9g/cm3
hardness :
HRA 89
Application :
High Pressure pump
Form Method :
isotatistic pressing
Material :
99 alumina ceramic
Description

Wear Resistant Pump Ceramic Piston / Ceramic Sleeve Piston with Low Friction

Tag Key words : Pump Ceramic Piston / Ceramic Sleeve Piston

What is the use potential of high performance ceramics for current and future requirements in engine manufacturing? The Fraunhofer-Institutes LBF and IWM are analysing this in close collaboration with industry partners from the motor and ceramics industry. The starting point of the ongoing investigations in this area is the Pump Ceramic Piston / Ceramic Sleeve Piston used in diesel engines, because great development and sales potential are expected for this concept.

Mingrui extensive range of Pump Ceramic Piston / Ceramic Sleeve Piston enables us to offer a solution for every application. Sizes, compositions and materials can be varied based on customer specific requirements. Our most widely used Alumina tubing is available in a broad range of sizes and multi-bore configurations. Common applications include furnace and thermo-couple tubes.

Pump Ceramic Piston / Ceramic Sleeve Pistoncan be further machined into standoffs, washers and step bushings, which at lower quantities may be more cost effective than pressing processes, where costly tooling charges are typically required.

We offerPump Ceramic Piston / Ceramic Sleeve Pistonin different range from .020” to 8.250” (0.30mm – 500mm).

Ceramic Tubes & Rods Material Designation
Alumina 99.8%: 99.8% Dense Alumina (Al2O3)

Alumina 99.7%: 99.7% Dense Alumina (Al2O3)
Alumina 99.5%: 99.5% Dense Alumina (Al2O3)

Alumina 97%: 97% Dense Alumina (Al2O3)
Alumina 96%: 96.0% Dense Alumina (Al2O3)
TTZ: Magnesia partially stabilized Zirconia (ZrO2)
YTZP: Yttria partially stabilized Zirconia (ZrO2)
ZDY: Yttria fully stabilized Zirconia (ZrO2)
Silicon Carbide
Silicon Nitride

Parameter Sheet
Properties Units ZrO2 95 Alumina 99 Alumina Si3N4 SiC
Density g / cm³ 5.95-6.0g/cm³ 3.65 3.92 3.23 3.12
Water absorption % 0 0 0 0 0
Coefficient of thermal expansion 10-6/K 10.5 7.9 8.5 3.2 3
Modulus of Elasticity Young's Mod GPa 210 280 340 300 440
Poisson's ratio / 0.3 0.21 0.22 0.26 0.17
HV Hardness MPa 1300-1365 1400 1650 1500 2800
Flexural Strength
@ room temperature		 MPa 950 280 310 720 390
Flexural Strength
@700°C		 MPa 210 220 230 450 380
Compressive Strength
@ room temperature		 MPa 2000 2000 2200 2300 1800
Fracture Toughness MPa *m 1/2 10 3.8 4.2 6.2 3.9
Heat conductivity
@ room temperature		 W/ m*k 2-2.2 18-25 26-30 25 120
Electrical Resistivity
@ room temperature		 Ω*mm2 /m >1015 >1015 >1016 >1013 >103
Max using temperature °C 1050 1500 1750 1050 1550
Resistance to acid alkaline / high high high high high



ABOUT US

Ming Rui Ceramics Limited has been specializing in the manufacture of Zirconia ceramics part and Alumina ceramic parts used in medical instruments,textile machines, e-cigarattes, dispensing machines, lithium battery, auto mobile, petrochemical industry and other high temperature and corrosive conditions for over 10 years. Consistent quality, dependable support and delivery, and innovative solutions have enabled us to expand our business world wide.Wear Resistant Pump Ceramic Piston / Ceramic Sleeve Piston with Low Friction

Our Worshop:

Wear Resistant Pump Ceramic Piston / Ceramic Sleeve Piston with Low Friction

Other related products:

Except alumina ceramic tube and rods, we also supply zirconia ceramic tube, rod for normal use, also have ceramic piston pump, ceramic plate, ceramic bush, ceramic sleeve, valves, ceramic shafts, nozzles, etc.Welcome you to contact us for more information!

Wear Resistant Pump Ceramic Piston / Ceramic Sleeve Piston with Low Friction

Wear Resistant Pump Ceramic Piston / Ceramic Sleeve Piston with Low Friction
