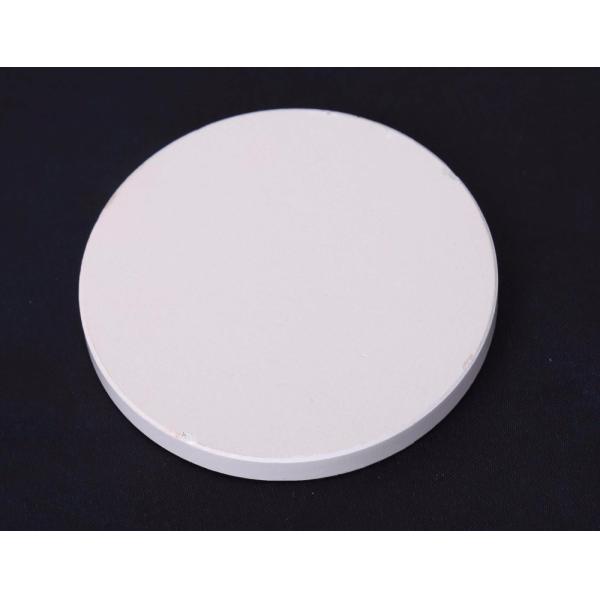

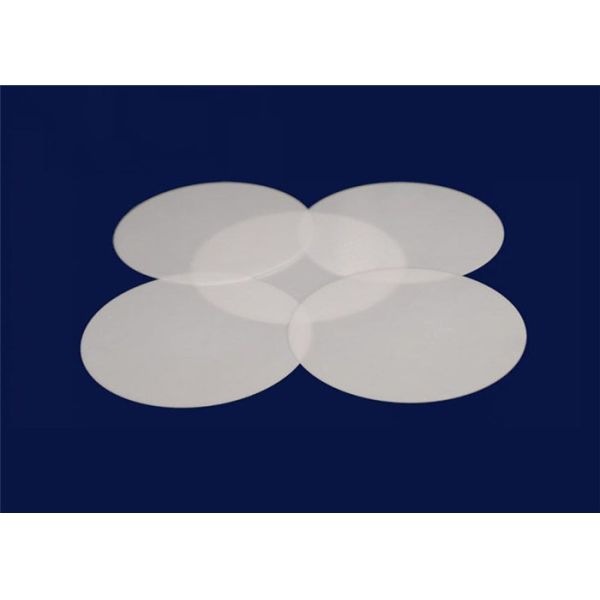

95% - 99.9% Alumina Ceramic Plate / Thermal Ceramic Heater Disk
95% - 99.9% Alumina Ceramic Plate / Thermal Ceramic Heater Disk
95% - 99.9% Alumina Ceramic Plate / Thermal Ceramic Heater Disk
95% - 99.9% Alumina Ceramic Plate / Thermal Ceramic Heater Disk
95% - 99.9% Alumina Ceramic Plate / Thermal Ceramic Heater Disk
95% - 99.9% Alumina Ceramic Plate / Thermal Ceramic Heater Disk
95% - 99.9% Alumina Ceramic Plate / Thermal Ceramic Heater Disk
95% - 99.9% Alumina Ceramic Plate / Thermal Ceramic Heater Disk
Specifications
Brand Name :
oem
Model Number :
Customized
Certification :
ISO9001, , CE, UL, TUV
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
5000 pieces month
Delivery Time :
15-20 working days after the order confirmed
Packaging Details :
wooden packing/export box
Feature :
very thin thickness
Size :
custom
MOQ :
1PCS
Item :
Al2o3 Ceramic Plates
Usage :
Wear-resisting Material
Highest application temperature :
1800
Name :
95% alumina thermal ceramic heater disk ceramic round sheet
OEM/ODM :
Accepted
Max Working Temperature :
1600℃
Flexural Strength :
336 Mpa
Description

95%-99.9% Alumina Thermal Ceramic Heater Disk Ceramic Round Sheet

Product Description

1. Name: Alumina Ceramic Sheet

2. Size: as customers' drawing

3. Al2O3 Content: 95%/99% alumina

4. Color: white or ivory

5. Working Temperature: 1600-1700 degree

6. Feature: high mechanical strength, good insulation&high wear resistant, etc.

7. Application: for refractory furnace or kiln, electron vacuum decices, spaceflights, pharmaceutical engineerings or other mechanical applications

Technical Parameter:

Item Unit Symbol 95% Alumina Ceramics 99% Alumina Ceramics 99.7% Alumina Ceramics
Maximum Using Temperature ℃ 1600 1700 1700
Water Absorption % 0 0 0
Hardness Gpa ≥85 ≥89 ≥89
Flexural Strength MPa (psi x 103) 336 550 550
Compressive Strength MPa (psi x 103) 2000 2500 2500
Fracture Toughness Mpa 4~5 5.6 6
Thermal Conductivity W/m °K 18-25 30 30.4
Thermal Shock Resistance °C 220 180-220 180-220
Dielectricity Constant 9.4 9.8 9.8
Dielectric Strength kV/mm 16 22 22

Application:

1). Electric appliance industry
2). Automotive industry
3). Mechanical industry
4). Engineer industry

Alumina ceramic is mainly used in large power equipment, IC MOS tube, IGBT chip heat conducting insulation, high frequency power supply, communication, mechanical equipment, strong current, high voltage, high temperature and other thermal heat insulation parts need products.
Physical properties: high thermal conductivity, high voltage insulation resistance, high temperature resistant, abrasion resistant, high strength.

Specification
1. Refractory
2. Long service life
3. High Polished Surface
4. Superior Mechanical Strength
5. Anti-high Corrosion and Wear Resistance
6. Good Insulation Performance
7. High Temperature and Pressure Resistance
8. High Purity Zirconia and Alumina Ceramic Materials
9. High hardness, long service life, not easy to break and wear resistance
10.Non-conductive, anti-static, ceramic material itself with the insulation of electricity and magnetism properties
11.Corrosion resistance, high temperature resistance, can be applied to a specific environment, such as acid alkali resistance
Company Introduction:


We ( Dongguan Mingrui Ceramic Technology Co., Ltd ) are a professional manufacturer specialized

in R&D, manufacturing and selling customized all kinds of high precision zirconia and alumina ceramic parts . Our main products include ceramic rod , ceramic tube, ceramic plunger, ceramic valve, ceramic plate, ceramic shaft and bearing , ceramic nozzle etc , which are mainly used in industrial fields of Machinery, Petrochemical oil and gas, Valves, Automotive, Food Processing, Fluid Handling, Process Control, Thermal Processing, Aerospace, Defense, Eletronic and Electrical, Textile, Mechanical, Engineering, Mineral Processing, etc.
We have a full service include mold design and development , ceramic forming , precision machining

and precision detection technology. We have achieved great successes in particular requirements

which is based on cooperating with Tsinghua University and getting rich experience by our professional technical engineer teams . Our factory have an unique technical called mirror polishing which improve

our products more smooth , bright than other competitors.

More photos of zirconia substrates :
95% - 99.9% Alumina Ceramic Plate / Thermal Ceramic Heater Disk
95% - 99.9% Alumina Ceramic Plate / Thermal Ceramic Heater Disk
FAQ :

1. What kind of industry ceramics do you have ?

We specialized in 95% 97% 99% alumina ceramic and zirconia ceramic parts .

2. What kind of molding method do can you supply ?

Dry Pressing , isostatic pressing , grouting , hot-chamber die casting , tape casting , injection molding, etc, injection molding and isostatic molding is the most commonly used.

3.What stabilizer do you use when processing ?

Yttria stabilizer is the most commonly used in our industrial ceramic parts.

4.Can you produce free samples for me ?

Yes usually , we can produce free samples for you but it is up to the product complexity .

5.What terms can you accept for payment ?

T/T, L/C , Western union , Money Gram and Paypal is welcome , but paypal and western union only for small -sum payment.
