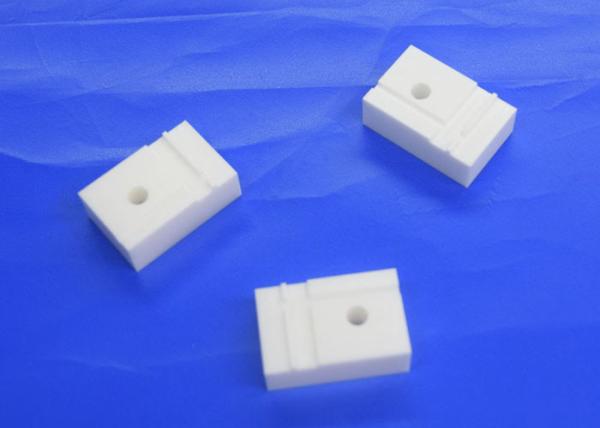

Small Machinable Ceramic Block with Holes / Groove High Uniformity
Small Machinable Ceramic Block with Holes / Groove High Uniformity
Small Machinable Ceramic Block with Holes / Groove High Uniformity
Small Machinable Ceramic Block with Holes / Groove High Uniformity
Small Machinable Ceramic Block with Holes / Groove High Uniformity
Small Machinable Ceramic Block with Holes / Groove High Uniformity
Specifications
Brand Name :
Mingrui
Model Number :
XF- 460
Certification :
ISO9001, , CE, UL, TUV
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
8000 pieces month
Delivery Time :
15 working days after the order confirmed
Packaging Details :
intertional carton box
Name :
small ceramic block
Application :
Ceramic Block
Material :
99% alumina ceramic
Dimension :
custom
Thickness :
1mm , 2mm , 3mm or custom
MOQ :
1PCS
Shipping :
DHL EMS UPS FEDEX TNT
Type :
alumina block
Features :
High Uniformity
Delivery :
10 days
Description



Small Ceramic Block with Holes / Groove , Small Zirconia Block Insulation

he specification of zirconia ceramic plates

Product name Zirconia ceramic plates, zirconia ceramic sheets, zirconia substrate
Material Yttria stabilized zirconium oxide ceramic
Dimension Min. thickness to be 0.10mm, max. length-side to be 300mm by 400mm
Surface finish Smooth surface to be Ra0.2, the diamond-like polished surface to be Ra0.08
Application Water treatment machinery system


The description of zirconia ceramic plates
zirconium plates/zirconium sheet can withstand high temperature and maintain high strength and hardness. Zirconia plates also offer superb performances in electrical insulation, high chemical resistance, and low thermal expansion. We have various sizes of semi-finished shapes in stock and are able to conduct custom manufacturing for all kinds of zirconia ceramic components.
The zirconia (ZrO2) ceramic plates are characterized by its extremely high strength, low thermal conductivity, and wear resistance. The superb surface quality on both sides makes it the perfect companion for any commercial thick film paste and even makes it suitable for a number of thin-film applications (sputtering).
With its extremely fine surface quality, the zirconia ceramic plate/zirconium ceramic sheet is designed especially to meet the highest demands in thin-film technology.

Properties of Alumina and Zirconia Ceramic :
Properties Units 95 Alumina 99 Alumina ZrO2
Density g / cm³ 3.65 3.92 5.95-6.0g/cm³
Water absorption % 0 0 0
Coefficient of thermal expansion 10-6/K 7.9 8.5 10.5
Modulus of Elasticity Young's Mod GPa 280 340 210
Poisson's ratio / 0.21 0.22 0.3
HV Hardness HV MPa 1400 1650 1300-1365
Flexural Strength @ room temperature MPa 280 310 950
Flexural Strength @700°C MPa 220 230 210
Compressive Strength @ room temperature MPa 2000 2200 2000
Fracture Toughness MPa *m 1/2 3.8 4.2 10
Heat conductivity @ room temperature W/ m*k 18-25 26-30 2-2.2
Electrical Resistivity @ room temperature Ω*mm2 /m >1015 >1016 >1015
Max use temperature °C 1500 1750 1050
Resistance to acid alkaline / high high high
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV/mm 16 22 /
Thermol Shock Resistance △ T ( °C ) 220 180-200 280-350
Tensile Strength @ 25 °C MPa 200 248 252


We can offer wide range temperature resisting Small Ceramic Block at 1200℃--2200℃. high temperature Small Ceramic Blockmade by advance ceramics like:95%--99.99% Alumina(Al2O3), Zirconia(ZrO2) ,Silicon Carbide,Silicon Nitride ...etc. The excellent high heat temperature resistance for many industry.

Produce and machining
We can produce different sizes and shapes of the sheets for specific applications to different custom products.Such as drilling, polishing, stripes, concave and convex, screw holes, metal parts position and so on
1. Can Be Custom By Drawing Or The Parameter
2.Can Be Offer a Samples Within 1--10 Qty
3. The Shipping Time Of The Samples Within 2days
4. Quick Delivery Via Fedex,Dhl,Ups,Tnt Etc.
For more informations (the price,payment etc), Please contact us or email: admin@cerampart.com

Company Introduction:


We ( Dongguan Mingrui Ceramic Technology Co., Ltd ) are a professional manufacturer specialized
in R&D, manufacturing and selling customized all kinds of high precision zirconia and alumina ceramic parts . Our main products include ceramic rod , ceramic tube, ceramic plunger, ceramic valve, ceramic plate, ceramic shaft and bearing , ceramic nozzle etc , which are mainly used in industrial fields of Machinery, Petrochemical oil and gas, Valves, Automotive, Food Processing, Fluid Handling, Process Control, Thermal Processing, Aerospace, Defense, Eletronic and Electrical, Textile, Mechanical, Engineering, Mineral Processing, etc.
We have a full service include mold design and development , ceramic forming , precision machining
and precision detection technology. We have achieved great successes in particular requirements
which is based on cooperating with Tsinghua University and getting rich experience by our professional technical engineer teams . Our factory have an unique technical called mirror polishing which improve
our products more smooth , bright than other competitors.

Other type of ceramic sheet/ plate/ substrate/ piece/ blank
· Ttz: Magnesia Partially Stabilized Zirconia (Zro2) Sheet/ Plate/
· Ytzp: Yttria Partially Stabilized Zirconia (Zro2) Sheet/ Plate/
· Zdy: Yttria Fully Stabilized Zirconia (Zro2) Sheet/ Plate/
· Silicon Carbide Sheet/ Plate/
· Silicon Nitride Sheet/ Plate/

Blue Ceramic Plate / Blue Ceramic Block more photos:
Small Machinable Ceramic Block with Holes / Groove High Uniformity
Our High precision Machining Machine :
Small Machinable Ceramic Block with Holes / Groove High Uniformity
Laser Cutting machine making holes :
Small Machinable Ceramic Block with Holes / Groove High Uniformity

FAQ :


1. What kind of industry ceramics do you have ?
We specialized in 95% 97% 99% alumina ceramic and zirconia ceramic parts .

2. What kind of molding method do can you supply ?
Dry Pressing , isostatic pressing , grouting , hot-chamber die casting , tape casting , injection molding, etc, injection molding and isostatic molding is the most commonly used.

3.What stabilizer do you use when processing ?
Yttria stabilizer is the most commonly used in our industrial ceramic parts.

4.Can you produce free samples for me ?
Yes usually , we can produce free samples for you but it is up to the product complexity .

5.What terms can you accept for payment ?
T/T, L/C , Western union , Money Gram and Paypal is welcome , but paypal and western union only for small -sum payment.
