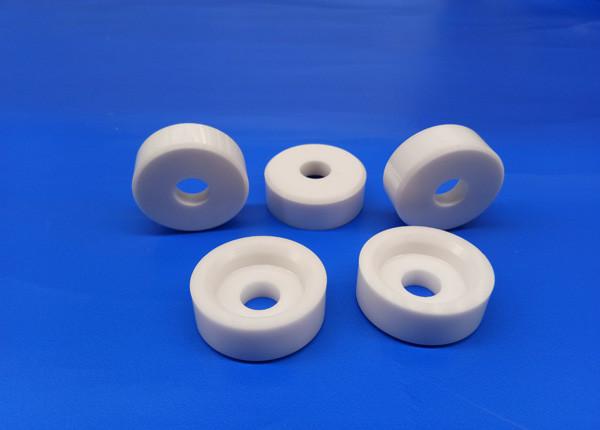

High HV Hardness Zirconia Ceramic Parts Fire Resistance Zirconia Ceramic Washer


Product Description

Manufacturing of zirconia ceramics using high-purity zirconia materials, insulation at room temperature, and high temperature has electrical conductivity and other excellent properties.High temperature resistance Melting point is 2715 ℃,1200mpa hardness.
Ceramic material composition:
· TTZ: Magnesia partially stabilized Zirconia (ZrO2) · YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)
The main features of the zirconia ceramic washer
1.High density: over 6 g/cm3, which makes it the densest body of the ceramic products
2.High hardness: over 9 on Mohs scale, diamond being 10, with a satin-smooth surface finish
3.High toughness: over 1200 MPa, approx. 4 times in comparison with 95% alumina
4. Excellent wear resistance, it's much better than aluminum oxide ceramics with longer life cycle
5. Low thermal conductivity: less than 3 W/m.k at ambient temperature, so it's an ideal thermal material
6. Good chemical and corrosion resistance, it's equivalent to above 99% alumina

The specification of ceramic washer

•

  The description of zirconia ceramic washer
  Zirconia ceramic parts are made of zirconium oxide ceramics which is a kind of strongest technical ceramic material with exceptional strength, high toughness, and superb reliability. These outstanding characteristics result in excellent resistance to wear and corrosion.

  We have been offering a selection of partially stabilized zirconia, including Y-TZP( yttria-stabilized), MSZ ( magnesia stabilized ), CSZ- (ceria stabilized). Each stabilized zirconia provides unique and specific properties that meet the demands of extreme applications found in many industries.

  With our production capability through CNC, precision grinding machines, we are able to provide many different level precision zirconia ceramic parts to meet customers' high precision assembly needs.

They deliver 10 times longer working life than metal rods.

Properties Sheet:

Detailed Images



Related Products
Alumina porous ceramic plate


Zirconia ceramic guide rod



View More Products
Packaging and Shipping

Zirconia Ceramic Washer​​ will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.





Company information

Who Are We?

Mingrui has professional OEM experience in manufacturing industrial ceramic parts for so many
years. We can make the products according to your drawings, custom the size, thickness and other parameters.
.

What Do We Do?

We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate, sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Oil & Gas, Energy & Power, Food & Medical, Agriculture, Aerospace,
even other high-end fields.
.

Our products with some certificates, such as , CE, TUV, etc..


Factory Show




Production Process Show

One-stop production, from the raw material powder to final product.


Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com


CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
