Specifications
Brand Name :
Customized
Model Number :
OEM
Certification :
ISO2008, TUV, , CE
Place of Origin :
Guangdong, China(mainland)
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal, D/P, D/A, MoneyGram
Supply Ability :
5000 pcs per month
Delivery Time :
10-35 working days after receiving deposit
Packaging Details :
Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
Product name :
Zirconia Ceramic Caps Threaded
Material :
Zirconia / alumina ceramic
Density :
3.9g/cm3 / >6.0g/cm3
HV Hardness :
1300 - 1650 Mpa
Dielectric Strength :
9.5 9.8 26
Compressive Strength@Room Temperature :
2000 - 2200 Mpa
Flexural Strength @ Room Temperature :
Mpa / 280 ( 95 al3o2 ), 310 ( 99 al3o2 ), 950 ( zirconia )
Max application temperature :
W / m * k / 18 - 25 ( 95 al3o2 ), 26 - 30 ( 99 al3o2 ), 2.0 - 2.2 ( zro2 )
Color and Size :
Black, white; Customized
Application :
Industrial Ceramic Caps
Description

High Polishing Aluminium Zirconia Ceramic Parts / Ceramic Bottle Caps Threaded


Product Description

Zirconia Ceramic not only have good feature of high hardness and high wear resistance,but also is excellent in toughness among fine ceramic material, so it's commomly used for structural parts and wear parts. As thermal expansion coefficient is close to the steel, it is also used to connecte ceramic and steel. Expect coommonly used in the field of industrial structural parts, Zirconia Ceramic is also widely used in daily-used ceramic because of its jade-like texture.

Advantages of Zirconia Ceramic Caps Threaded​:

1. Refractory.
2. Long Service Life.
3. Good Polished Surface.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.

  • High hardness, long service life, not easy to break and wear resistance.
  • Non-conductive, anti-static, ceramic material itself with the insulation of electricity and magnetism properties.
  • Corrosion resistance, high temperature resistance, can be applied to a specific environment, such as acid and alkali resistance.

They deliver 10 times longer working life than metal rods.

Properties Sheet:

Properties Units 95 Alumina 99 Alumina Zirconia
Density ɡ / cm3 3.65 3.92 5.95 - 6.0
Water Absorption 0 0 0
Coefficient of Thermal Expansion 10-6 / K 7.9 8.5 10.5
Modulus of Elasticity Young’s Mod Gpa 280 340 210
Poisson’s Ratio / 0.21 0.22 0.3
HV Hardness Mpa 1400 1650 1300 - 1365
Flexural Strength @ Room Temperature Mpa 280 310 950
Flexural Strength @ 700℃ Mpa 220 230 210
Compressive Strength@Room Temperature Mpa 2000 2200 2000
Fracture Toughness Mpa * m½ 3.8 4.2 10
Heat Conductivity @ Room Temperature W / m * k 18 - 25 26 - 30 2.0 - 2.2
Electrical Resistivity @ Room Temperature Ω*mm2 / m >1015 >1016 >1015
Max Application Temperature 1500 1750 1050
Resistance to Acid Alkaline / High High High
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV / mm 16 22 /
Thermal Shock Resistance Δ T ( ℃ ) 220 180 - 200 282 - 350
Tensile Strength @ 25℃ Mpa 200 248 252

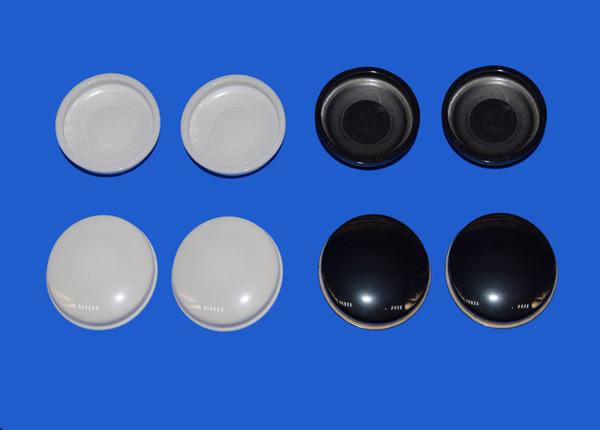

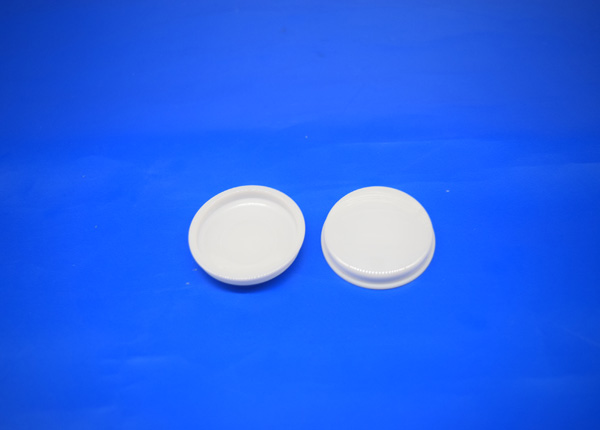

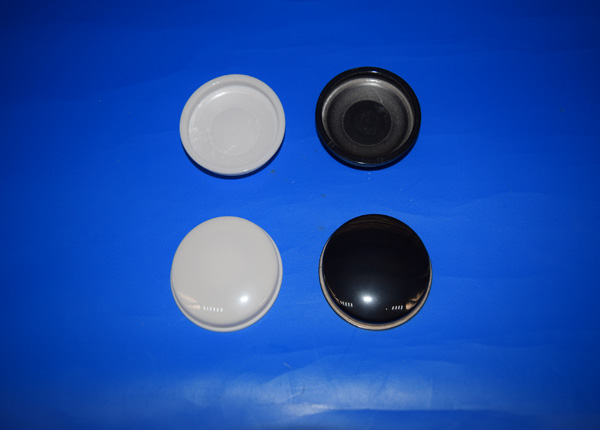

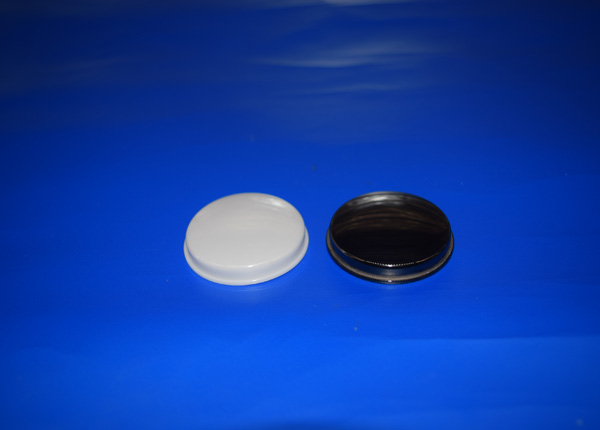

Detailed Images

High Polishing Aluminium Zirconia Ceramic Parts / Ceramic Bottle Caps ThreadedHigh Polishing Aluminium Zirconia Ceramic Parts / Ceramic Bottle Caps ThreadedHigh Polishing Aluminium Zirconia Ceramic Parts / Ceramic Bottle Caps Threaded

Related Products

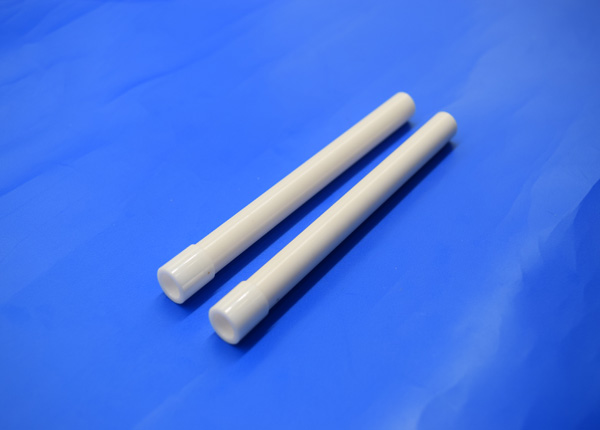

Zirconia ceramic rod


High Polishing Aluminium Zirconia Ceramic Parts / Ceramic Bottle Caps Threaded

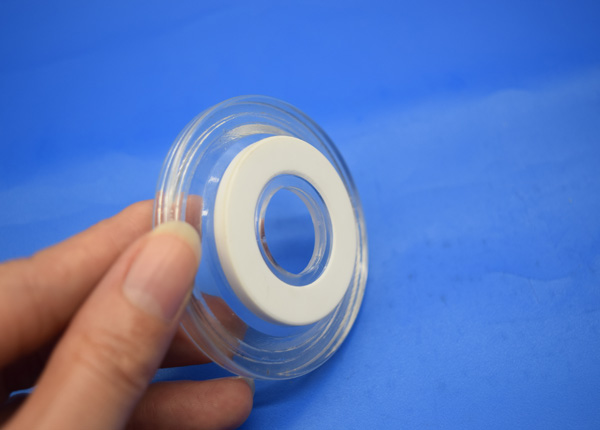

Alumina ceramic to plastic washer

High Polishing Aluminium Zirconia Ceramic Parts / Ceramic Bottle Caps Threaded

View More Products


Packaging and Shipping

Zirconia Ceramic Caps Threaded​​ will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

High Polishing Aluminium Zirconia Ceramic Parts / Ceramic Bottle Caps Threaded
High Polishing Aluminium Zirconia Ceramic Parts / Ceramic Bottle Caps Threaded

Secure the contents of your swing top bottles with the Ceram-Seal Ceramic Replacement Caps. Use the Ceram-Seal ceramic caps to ensure that your homebrewed beverages stay fresh and safe as they are stored or during transport, until the time is right to finally pop a bottle. Order now and take your home brewing to the next level!

Features & Details

  • Made from 100% ceramic
  • With food grade silicone seal and high quality stainless steel
  • Safe, non-toxic, BPA-free, FDA-approved materials
  • Features full silicone gasket for maximum seal and better carbonation or fermentation
  • Withstands high pressure and lasts longer than cheap plastic caps
  • Airtight and prevents leaks and spills
  • Ceramic does not warp and will not leak harmful chemicals
  • Will not affect the taste and quality of stored liquids


Company information

Who Are We?

Mingrui has professional OEM experience in manufacturing industrial ceramic parts for so many

years. We can make the products according to your drawings, custom the size, thickness and other parameters.

.

What Do We Do?

We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate, sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Oil & Gas, Energy & Power, Food & Medical, Agriculture, Aerospace,

even other high-end fields.

.

Our products with some certificates, such as , CE, TUV, etc..


Factory Show

High Polishing Aluminium Zirconia Ceramic Parts / Ceramic Bottle Caps Threaded


Production Process Show

One-stop production, from the raw material powder to final product.

High Polishing Aluminium Zirconia Ceramic Parts / Ceramic Bottle Caps Threaded

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
