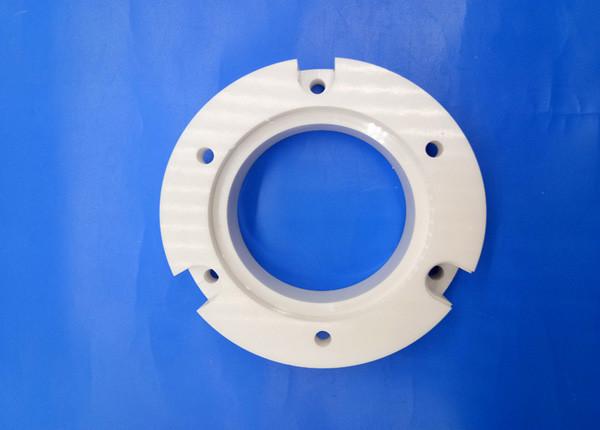

Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange
Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange
Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange
Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange
Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange
Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange
Specifications
Brand Name :
Customized
Model Number :
Custom
Certification :
ISO2008, TUV, , ROHS
Place of Origin :
Guangdong, China(mainland)
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal, D/P, D/A
Supply Ability :
3000 pcs per month
Delivery Time :
15-30 working days after receiving deposit
Packaging Details :
Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
Product name :
Zirconia / Alumina Ceramic 4 Bolt Round Flange
Material :
Zirconia / alumina ceramic
Density :
3.9g/cm3 / >6.0g/cm3
HV Hardness :
1300 - 1650 Mpa
Dielectric Strength :
9.5 9.8 26
Compressive Strength@Room Temperature :
2000 - 2200 Mpa
Flexural Strength @ Room Temperature :
Mpa / 280 ( 95 alumina ), 310 ( 99 alumina ), 950 ( zirconia )
Max application temperature :
W / m * k / 18 - 25 ( 95 al3o2 ), 26 - 30 ( 99 al3o2 ), 2.0 - 2.2 ( zro2 )
Color and Size :
White, ivory, Customized
Application :
4 Bolt Round Flange machining parts
Description

Machining Ceramic Parts Large Size Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange


Product Description

Produce and machining

We can produce different sizes and shapes of the ceramic products for specific applications to different custom products.Such as drilling, polishing, stripes, concave and convex, screw holes, metal parts position and so on

Features of ceramic:
1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
2. Hardness Strength Up To Mohs 9.0; HRA 80-90, Wear Resistance wear rate 0.68 mm3·m-2·h-1....

3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength, Max 10 MPa.m1/2 Fracture toughness,
6. Pressure Resistance, Max 2300MPa compressive strength...
7. Anti-High Corrosion Resistance, Such As Acid Alkali Resistance...
8. Long Service Life...
9. Other excellent property


Properties Sheet:

Properties Units 95 Alumina 99 Alumina Zirconia
Density ɡ / cm3 3.65 3.92 5.95 - 6.0
Water Absorption ％ 0 0 0
Coefficient of Thermal Expansion 10-6 / K 7.9 8.5 10.5
Modulus of Elasticity Young’s Mod Gpa 280 340 210
Poisson’s Ratio / 0.21 0.22 0.3
HV Hardness Mpa 1400 1650 1300 - 1365
Flexural Strength @ Room Temperature Mpa 280 310 950
Flexural Strength @ 700℃ Mpa 220 230 210
Compressive Strength@Room Temperature Mpa 2000 2200 2000
Fracture Toughness Mpa * m½ 3.8 4.2 10
Heat Conductivity @ Room Temperature W / m * k 18 - 25 26 - 30 2.0 - 2.2
Electrical Resistivity @ Room Temperature Ω*mm2 / m ＞1015 ＞1016 ＞1015
Max Application Temperature ℃ 1500 1750 1050
Resistance to Acid Alkaline / High High High
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV / mm 16 22 /
Thermal Shock Resistance Δ T ( ℃ ) 220 180 - 200 282 - 350
Tensile Strength @ 25℃ Mpa 200 248 252

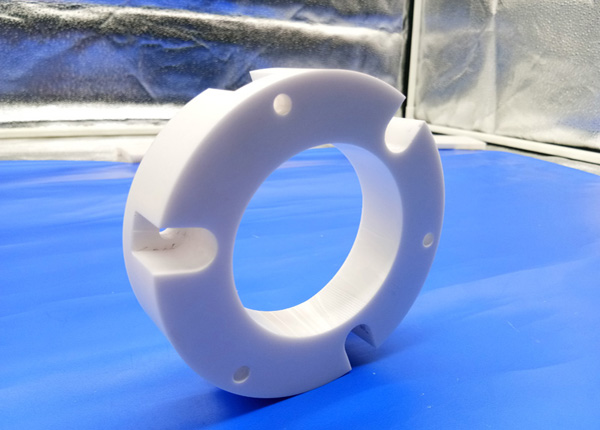

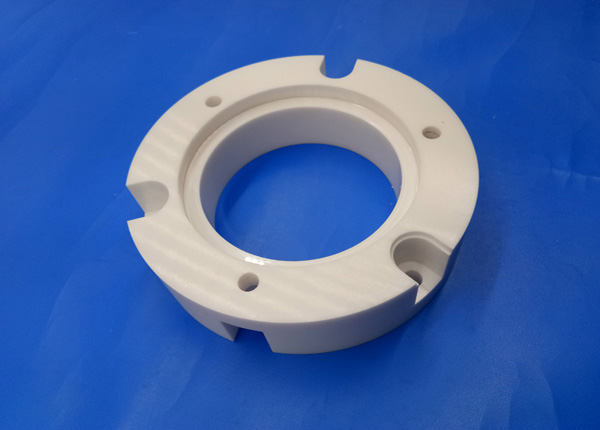

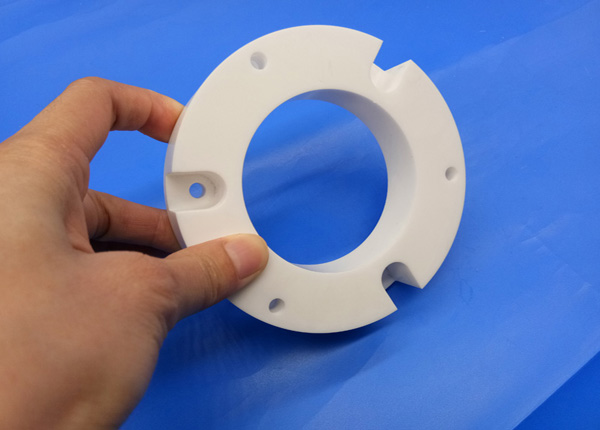

Detailed Images

Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind FlangeLarge Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind FlangeLarge Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange

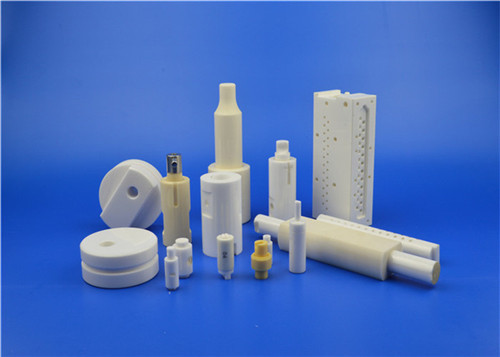

Related Products


Ceramic cap


Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange

Ceramic parts

Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange

View More Products


Packaging and Shipping

Zirconia / Alumina Ceramic 4 Bolt Round Flange​​ will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange
Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange


Company information

Who Are We?

Mingrui has professional OEM experience in manufacturing industrial ceramic parts for so many

years. We can make the products according to your drawings, custom the size, thickness and other parameters.

.

What Do We Do?

We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate, sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Oil & Gas, Energy & Power, Food & Medical, Agriculture, Aerospace,

even other high-end fields.

.

Our products with some certificates, such as , CE, TUV, etc..


Factory Show

Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange


Production Process Show

One-stop production, from the raw material powder to final product.

Large Size Machining Ceramic Parts Zirconia / Alumina Ceramic 4 Bolt Round Blind Flange

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com


CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
