YSZ Yttria Stabilized ZrO2 / Zirconia Ceramic Roller / Roller Sleeve High Temperature
YSZ Yttria Stabilized ZrO2 / Zirconia Ceramic Roller / Roller Sleeve High Temperature
YSZ Yttria Stabilized ZrO2 / Zirconia Ceramic Roller / Roller Sleeve High Temperature
YSZ Yttria Stabilized ZrO2 / Zirconia Ceramic Roller / Roller Sleeve High Temperature
YSZ Yttria Stabilized ZrO2 / Zirconia Ceramic Roller / Roller Sleeve High Temperature
YSZ Yttria Stabilized ZrO2 / Zirconia Ceramic Roller / Roller Sleeve High Temperature
Specifications
Brand Name :
Mingrui
Model Number :
Tang-06
Certification :
ISO9001, , CE, UL, TUV
Place of Origin :
China
MOQ :
1 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
8000 pieces per month
Delivery Time :
7-15 working days after the order confirmed
Packaging Details :
Export protective packing
Material :
zirconia or alumina
Feature :
high precision，high hardness
Shipping :
DHL EMS UPS FEDEX TNT
OEM :
yes and welcome
Delivery :
10 days
Max. Working Temperature: :
850 °C or customized
Volume Resistivity ( at R.T. ) :
>10^12 ohm.cm
Compressive Strength :
2500 Mpa
Dielectric Constant ( 1 MHz at R.T. ) :
26
Color :
White, yellow,or customized
Description

High Temperature YSZ Yttria Stabilized ZrO2/Zirconia Ceramic Roller /Roller Sleeve

Zirconium oxide (ZrO2) is a unique advanced ceramic, it offers superior mechanical properties such as high strength, high wear resistance, high toughness and flexibility, also zirconia offers chemical, corrosion resistance in every harsh environment well and without material pollution at wire passing through. Due to these remark performance, it's an ideal choice for zirconia ceramic roller for textile machinery.

Zirconia ceramic roller greatly helps raise the working efficiency and decrease the maintenance cost.

Features:

●Superior wear resistance ..........●High temperature resistance.............. ●No corrosion, anti-chemistry............ ●Self-lubrication with low friction

Our strength:

●Competitive price for standard parts............................................................. ●Sufficient stock level for standard types

●Quick response with flexible delivery...............................................................●Prototyping to mass production capability

●Providing or proposing a optimized solution

Customers' benefit

●Cost effective and cost down●Low stock level with saving cost ● Flexible production schedule ●Support very small batch or trial order

●Offering technical information and consultatio

Properties of Alumina and Zirconia Ceramic :
Properties Units 95 Alumina 99 Alumina ZrO2
Density g / cm³ 3.65 3.92 5.95-6.0g/cm³
Water absorption % 0 0 0
Coefficient of thermal expansion 10-6/K 7.9 8.5 10.5
Modulus of Elasticity Young's Mod GPa 280 340 210
Poisson's ratio / 0.21 0.22 0.3
HV Hardness HV MPa 1400 1650 1300-1365
Flexural Strength @ room temperature MPa 280 310 950
Flexural Strength @700°C MPa 220 230 210
Compressive Strength @ room temperature MPa 2000 2200 2000
Fracture Toughness MPa *m 1/2 3.8 4.2 10
Heat conductivity @ room temperature W/ m*k 18-25 26-30 2-2.2
Electrical Resistivity @ room temperature Ω*mm2 /m >1015 >1016 >1015
Max use temperature °C 1500 1750 1050
Resistance to acid alkaline / high high high
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV/mm 16 22 /
Thermol Shock Resistance △ T ( °C ) 220 180-200 280-350
Tensile Strength @ 25 °C MPa 200 248 252

Mingrui alumina tubes are 99.5% to 99.8% high purity and offer elevated temperature stability. Alumina tubes are available in custom sizes, including American and Metric, and offer a low material cost.

Minerals containing alumina make up nearly 15% of the earth’s crust. This makes it practically inexhaustible and versatile. Alumina provides the combination of low thermal expansion, superior thermal conductivity and high compressive strength making it thermal shock resistant and the ideal product for alumina tubes. Our alumina tube models have elevated dielectric properties and are gas tight providing a higher vacuum or protective atmosphere when at an extreme temperature.

These alumina tubes offer:

  • Extreme high temperature stability under reducing, inert and high vacuum condition under high temperature up to 1800°C.
  • Extreme wear and abrasion resistance.
  • Chemical corrosion resistance under high temperature.
  • High dielectric properties.
  • Gas tight for many applications to provide protective atmospheres or high vacuum at high temperature to eliminate contamination or impurity.
  • Low material cost and custom size available.
  • Available Tube Diameter From 3/16″ to 9″ for American size and 2 mm to 150 mm.
  • Available Tube Length: From 1″ ( 25mm) To 72″ ( 1828mm).
  • Most items are in Stock and can be delivered in 1-3 days.
  • Sentro Tech also offer volume discount for all listed sizes if order quantity is more than 5 pieces for same size

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.

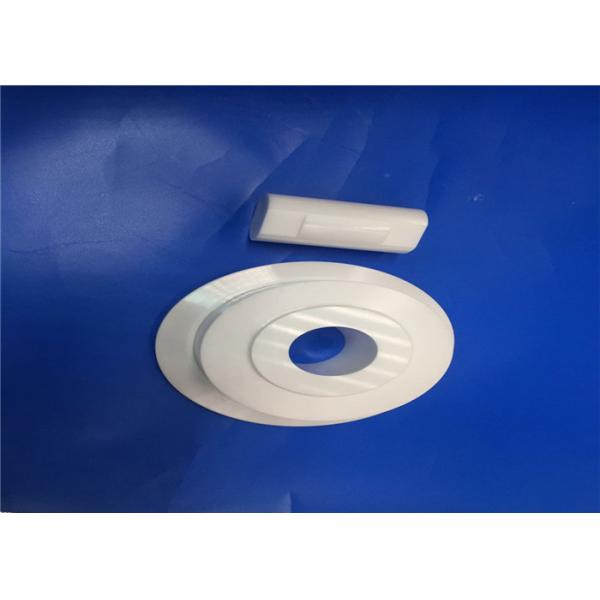

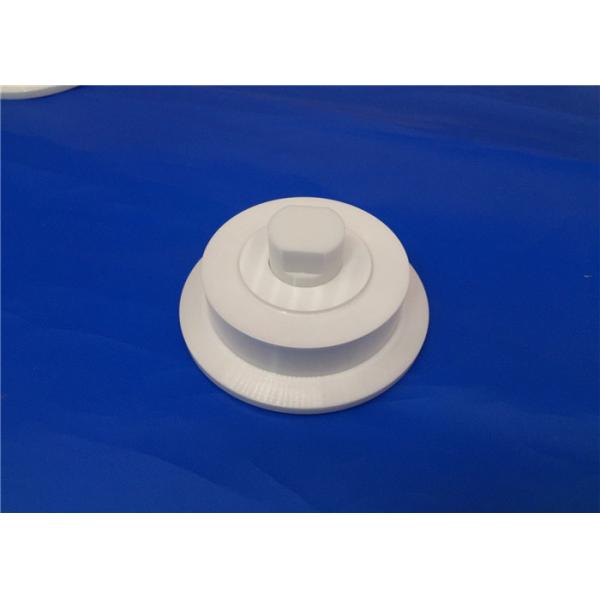

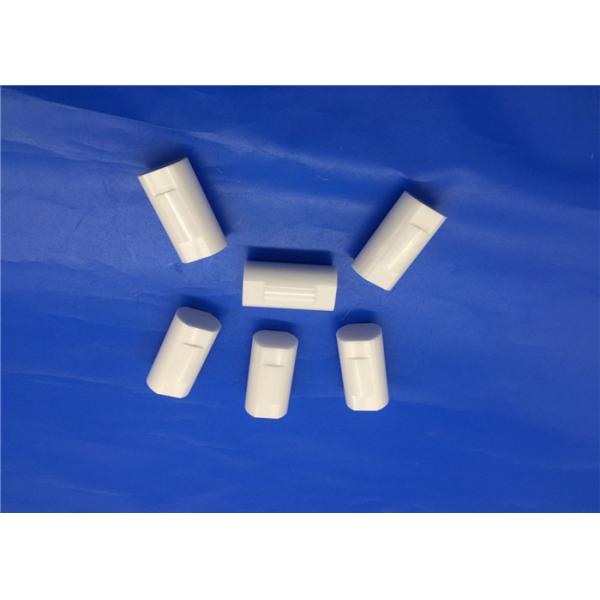

More Product Photos :

YSZ Yttria Stabilized ZrO2 / Zirconia Ceramic Roller / Roller Sleeve High TemperatureYSZ Yttria Stabilized ZrO2 / Zirconia Ceramic Roller / Roller Sleeve High TemperatureYSZ Yttria Stabilized ZrO2 / Zirconia Ceramic Roller / Roller Sleeve High Temperature

Our factory Machinery show :

YSZ Yttria Stabilized ZrO2 / Zirconia Ceramic Roller / Roller Sleeve High Temperature
