High Precision Ceramic Gear / Zirconia Tooth For Sewage Treatment System
High Precision Ceramic Gear / Zirconia Tooth For Sewage Treatment System
High Precision Ceramic Gear / Zirconia Tooth For Sewage Treatment System
High Precision Ceramic Gear / Zirconia Tooth For Sewage Treatment System
High Precision Ceramic Gear / Zirconia Tooth For Sewage Treatment System
High Precision Ceramic Gear / Zirconia Tooth For Sewage Treatment System
Specifications
Brand Name :
Mingrui
Model Number :
Tang-09
Certification :
ISO9001, , CE, UL, TUV
Place of Origin :
Guangdong,China
MOQ :
1 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
5000 pieces per month
Delivery Time :
15-25 working days after the order confirmed
Packaging Details :
Export protective packing
Item :
Ceramic Impeller / Ceramic gear wheel
Size :
As you drawings
Usage :
Sewage Treatment System
Density :
6.0g/cm3
Keywords :
zirconia ceramic impeller , zirconia gear wheel
Precision :
+- 0.001mm
Surface Treatment :
polishing or glazing
Producing method :
hydrostatic forming
Business type :
manufacture
Maximum use temperature :
1800℃
Description

High Precision Ceramic Gear/Zirconia Tooth For Sewage Treatment System

Mingrui ceramic team will be more than happy to hear about your thoughts and requirements with regard to ceramic wheel designs. Shaping technical ceramic gear wheels by ceramic injection moulding technology brings cost effective possibilities and solutions. We are looking forward to cooperation.

Feature of ceramic gear wheel :

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products and electric heating products

We can supply the products according to customer's drawings, samples and performance requirement.

Zirconia Ceramic Gear Properties:

  • ADVANTAGES

    1. Isostatic pressed.
    2. Fire resistance.
    3. Superior mechnical strength.
    4. High corrosion and wear resistance.
    5. High Temperature Resistance.
    6. Good Insulation Performance Precision.
    7. Zirconia and alumina ceramic material.

    They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal plunger. They give a longer life to the sealed packing material.
Processing technology
Process range (mm)
Outside Diameter 1---300
Inside Diameter 0.5---300
Length 0.5---800
Accuracy of working (mm)
Perpendicularity 0.01
Concentricity 0.01
Roundness 0.005
Straightness 0.005
Parallelism 0.01
Planeness 0.005
Roughness 0.05
Fit clearance

0.005

Properties of Alumina and Zirconia Ceramic :
Properties Units 95 Alumina 99 Alumina ZrO2
Density g / cm³ 3.65 3.92 5.95-6.0g/cm³
Water absorption % 0 0 0
Coefficient of thermal expansion 10-6/K 7.9 8.5 10.5
Modulus of Elasticity Young's Mod GPa 280 340 210
Poisson's ratio / 0.21 0.22 0.3
HV Hardness HV MPa 1400 1650 1300-1365
Flexural Strength @ room temperature MPa 280 310 950
Flexural Strength @700°C MPa 220 230 210
Compressive Strength @ room temperature MPa 2000 2200 2000
Fracture Toughness MPa *m 1/2 3.8 4.2 10
Heat conductivity @ room temperature W/ m*k 18-25 26-30 2-2.2
Electrical Resistivity @ room temperature Ω*mm2 /m >1015 >1016 >1015
Max use temperature °C 1500 1750 1050
Resistance to acid alkaline / high high high
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV/mm 16 22 /
Thermol Shock Resistance △ T ( °C ) 220 180-200 280-350
Tensile Strength @ 25 °C MPa 200 248 252

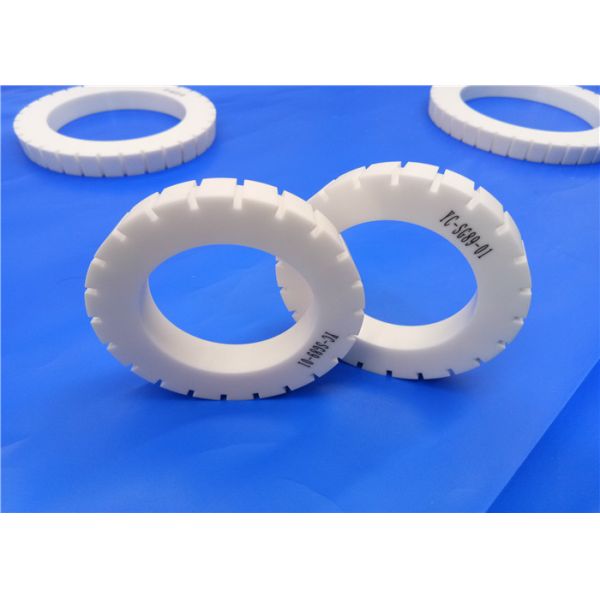

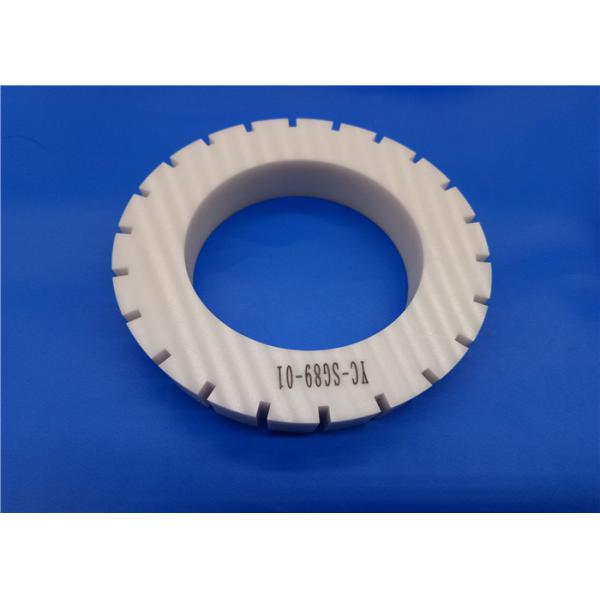

More Product Photos :

High Precision Ceramic Gear / Zirconia Tooth For Sewage Treatment SystemHigh Precision Ceramic Gear / Zirconia Tooth For Sewage Treatment System

Our factory Machinery show :

High Precision Ceramic Gear / Zirconia Tooth For Sewage Treatment System

Quality guarantee

High Precision Ceramic Gear / Zirconia Tooth For Sewage Treatment System

FAQ :

1. What kind of industry ceramics do you have?

We specialized in 95% 97% 99% alumina ceramic and zirconia ceramic parts.

2. What kind of molding method can you supply? Dry Pressing, isostatic pressing, grouting, hot-chamber die casting, tape casting, injection molding, etc,

5.What terms can you accept for payment?

T/T, L/C , Western union , Money Gram and Paypal is welcome , but paypal and western union only for small-sum payment.
