Precision Rotor Ceramic Shaft For Jebao WP25 WP-25 Wavemaker Powerhead Pump
Precision Rotor Ceramic Shaft For Jebao WP25 WP-25 Wavemaker Powerhead Pump
Specifications
Brand Name :
Mingrui
Model Number :
XF-226
Certification :
ISO9001-2005
Place of Origin :
China
MOQ :
1 pieces
Price :
USD1.21-5.16
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
10000 pieces month
Delivery Time :
15 working days after the order confirmed
Packaging Details :
intertional carton box
Item name :
rotor ceramic shaft
Dimension :
Jebao WP25 WP-25 Wavemaker
Color :
white blue black or custom
function :
for wavemaker powerhead pump
material :
zirconia alumina ceramic
MOQ :
1 PCS
Delivery :
7 days
Shipping :
DHL EMS UPS FEDEX TNT
OEM :
welcome
Precision :
+- 0.001mm
Description

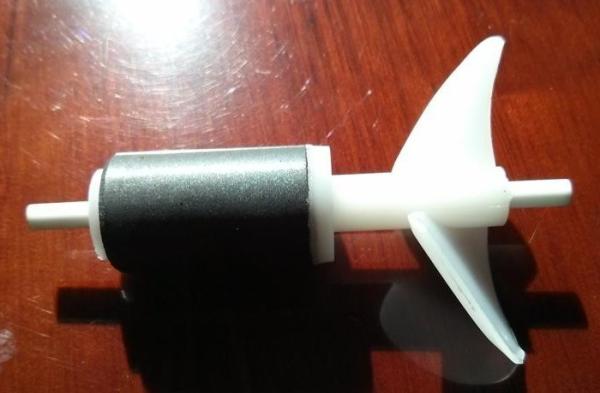

Rotor Ceramic Shaft for Jebao WP25 WP-25 Wavemaker Powerhead Pump

Zirconia Ceramic Rod,ZrO2 Ceramic Shaft
Specifications:

1. High thermal zirconia ceramic rod,wear-resistant bar.
2. Diameter: 1.0(-0.02)mm.
3. Length: 10(±1.0)mm.
4. The rod's diameter and length can be customized according to your requirements.
5. Product number: XF-226

Product Name Rotor Ceramic Shaft for Jebao WP25 WP-25 Wavemaker Powerhead Pump
Material Alumina or zirconia
Color White, Black , Blue , Yellow or custom
OD 0.2mm - 200mm, And According to drawings
Length 5mm - 400mm, And According to drawings
Surface Roughness Ra0.05
Torlerance +/- 0.001mm
function for micro motor
Max. working temperature 1500 -2800 °C
Samples Avaliable
Shipping: Air Express (DHL/UPS/TNT/ FedEx) or Ocean Shipping

Properties Sheet of zirconia and alumina :

Properties Units 95 Alumina 99 Alumina ZrO2
Density g / cm³ 3.65 3.92 5.95-6.0g/cm³
Water absorption % 0 0 0
Coefficient of thermal expansion 10-6/K 7.9 8.5 10.5
Modulus of Elasticity Young's Mod GPa 280 340 210
Poisson's ratio / 0.21 0.22 0.3
HV Hardness HV MPa 1400 1650 1300-1365
Flexural Strength @ room temperature MPa 280 310 950
Flexural Strength @700°C MPa 220 230 210
Compressive Strength @ room temperature MPa 2000 2200 2000
Fracture Toughness MPa *m 1/2 3.8 4.2 10
Heat conductivity @ room temperature W/ m*k 18-25 26-30 2-2.2
Electrical Resistivity @ room temperature Ω*mm2 /m >1015 >1016 >1015
Max use temperature °C 1500 1750 1050
Resistance to acid alkaline / high high high
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV/mm 16 22 /
Thermol Shock Resistance △ T ( °C ) 220 180-200 280-350
Tensile Strength @ 25 °C MPa 200 248 252

Main Features:
1) High hardness.
2) High heat resistance: alumina ceramic has excellentthermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
3) Good wear resistance: alumina ceramic is the material of choice for alumina wear parts.
4) High electrical resistivity: alumina is an electrically insulating material.
5) High corrosion resistance: it is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.

Company Introduction
Mingrui ceramic manufacture and provides alumina ceramic components for a wide range of application like Mechanical Equipment, Electronic & Electrical, Oil Drilling, Medical, Chemical Industry etc. According to actual application and customer's requirement, the purities vary from 95%-99.7% and the forming methods will be different. The forming methods applied in our plant include dry pressing, isostatic pressing, injection moulding, extrusion moulding. With experienced engineers and talented workers, we are confident to offer high quality, high precision, complex components for customers worldwide.

Mingrui Ceramics has years of experience designing and developing technical ceramic solutions for a wide variety of applications and industries.Wear And Corrosion Resistant Ceramic Shaft Chemical Stirring Rod. We offer this expertise to all of our customers to ensure the best design and materials are chosen for their specific application and needs.Wear And Corrosion Resistant Ceramic Shaft Chemical Stirring Rod,Typically, our custom technical ceramic components and parts we supply are used for one of three main reasons:
Drawings :
Precision Rotor Ceramic Shaft For Jebao WP25 WP-25 Wavemaker Powerhead Pump

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other question, pls feel free to contact us .
