Specifications
Brand Name :
Mingrui
Model Number :
XF-226
Certification :
ISO9001
Place of Origin :
China
MOQ :
2pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
500 pieces per month
Delivery Time :
15 working days after the order confirmed
Packaging Details :
international carton box
item :
Ceramic Lining Tube
material :
95 99 alumina ceramic
dimension :
custom
color :
custom
business type :
manufacturtor
Water Absorption :
0%
Thermal Conductivity :
2.2 W/m.K
Electrical Insulation :
Excellent
Description


Ceramic Tube for Vacuum Interrupter / Alumina Ceramic Threaded Tube

Mingrui Ceramic provides technical ceramic tubes such as alumina tubes with high purity, tight dimensional tolerance and competitive price. Our alumina tube products with diameter from 1mm to 100mm and purity up to 99.8% will fulfil most of the requirements. Custom manufacturing for special shapes are always available.

Alumina as a fine ceramic material is widely used in a lot of industries. Alumina tubes has superb performances in electrical insulation, high chemical resistance and low thermal expansion and these ceramic tubes are widely used in industrial ovens and machines. High purity alumina materials are excellent for making alumina components for CVD, ion implants, photolithography, and semiconductor manufacturing. In traditional industries, alumina tubes are ideal for products such as injector tubes and insulators. Alumina tubes are also widely used as protector for high temperature thermal couples.

Typical materials of alumina ceramic tubes.

CompositionUNITAL60AL95AL98
AL2O3 content%9699.599.8
Color WhiteIvoryIvory
Tensile strengthKpsi323836
Flexural strengthKpsi525554
Compressive strengthKpsi300377350
Densityg/cc3.703.903.92
HardnessHV, GPa13.817.218
Thermal ConductivityW/(m K)253030
C.O.T.E.In / In°C (x10^-6)7.77.87.8
Working temperature°C150016501750
Dielectric Constant 9.59.79.8
Volume Resistivity (25°C)Ohm-cm>10^14>10^14

>10^14


Advantages:
1). Excellent insulation, security, long working life.
2). High temperature resistance

3). Resistance to electric breakdown
4). Stand wear and tear
5). High strength
6). Corrosion resistance
7). Good compactness
8). HIgh hardness

Material introduction:
Aluminium Oxide, Al2O3 is the most widely applied and cost effective technical ceramic material. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. The maximum working temperature is up to 1700 °C with relatively high thermal conductivity. It is also an electrically insulating material with a high electrical resistivity. The good corrosion resistance makes it insoluble in water and slightly soluble in strong acid and alkaline solution.

Available shapes:
Our Alumina Ceramic products can be made into different shapes like ceramic rods, ceramic bars, ceramic tubes/tubings, ceramic bushings/ceramic bushing, ceramic sleeves, ceramic seal rings, ceramic washers, ceramic ball valves, ceramic pistons, ceramic disks, ceramic plates/sheets/substrates or other customized shapes.

According to actual application and customer's requirement, the purities vary from 95%-99.7% and the forming methods will be different. The forming methods applied in our plant include dry pressing, isostatic pressing, injection moulding, extrusion moulding. With experienced engineers and talented workers, we are confident to offer high quality, high precision, complex components for customers worldwide.


Character of ceramic parts :

1. High temperture ceramics -- crucibles , nozzles , lasers , furnace / kiln fixtures
2. wear and corrosion resistant ceramics -- plates, hosings , gages , caps / lids
3. Electrical insulating ceramics --contact blocks , standoffs, fasteners , spacers
4. Good dimension stability , no deformation at any situation
5. beatiful apprearance , never be aged and ocidated .

Industrial Ceramic Intriduction
Aluminium Oxide, Al2O3 is the most widely applied and cost effective technical ceramic material. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. The maximum working temperature is up to 1700 °C with relatively high thermal conductivity. It is also an electrically insulating material with a high electrical resistivity. The good corrosion resistance makes it insoluble in water and slightly soluble in strong acid and alkaline solution.
Company Introduction

Mingrui ceramic manufacture and provides alumina ceramic components for a wide range of application like Mechanical Equipment, Electronic & Electrical, Oil Drilling, Medical, Chemical Industry etc. According to actual application and customer's requirement, the purities vary from 95%-99.7% and the forming methods will be different. The forming methods applied in our plant include dry pressing, isostatic pressing, injection moulding, extrusion moulding. With experienced engineers and talented workers, we are confident to offer high quality, high precision, complex components for customers worldwide.

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other question, pls feel free to contact us .

More photos:

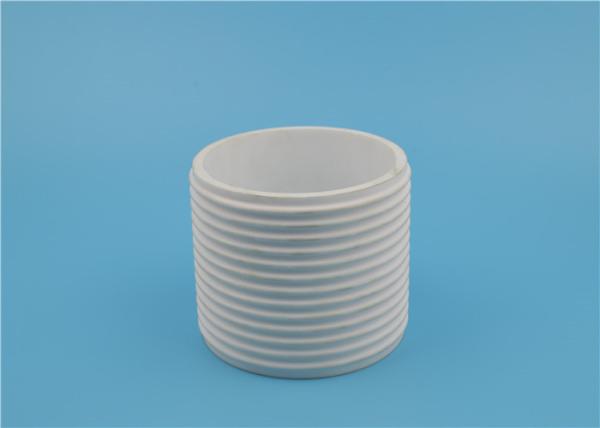

Alumina Ceramic Threaded Tube Ceramic Tube High Hardness For Vacuum Interrupter
